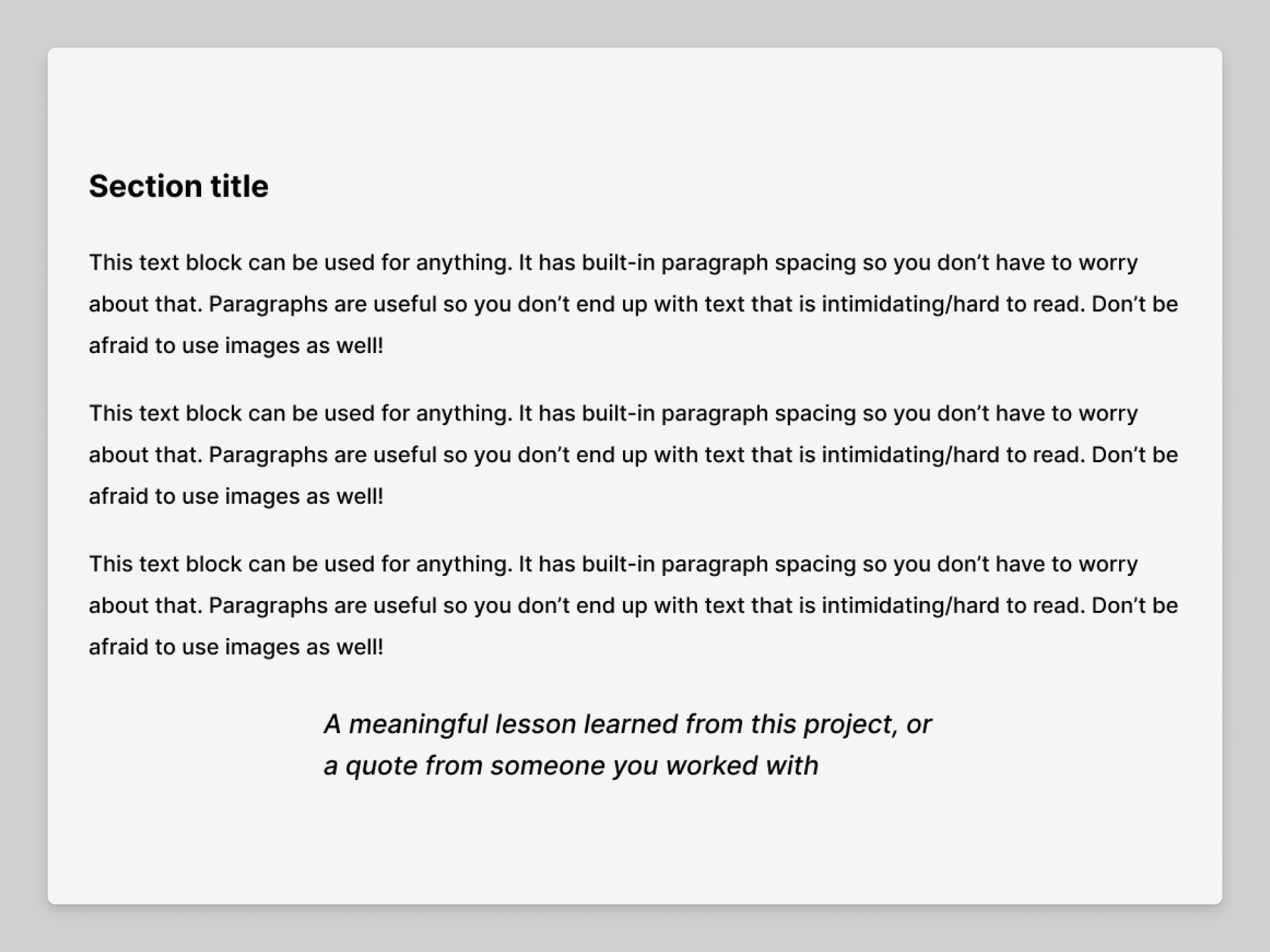

FD4B: Create the section heading, paragraph text, and quote block
We're now ready to create the elements of our case study page. We'll start by creating a section heading to break up our page into different topics, a paragraph for long-form text, and a quote block which will act as a visual break in the page for quotes that don't belong in the main body content.

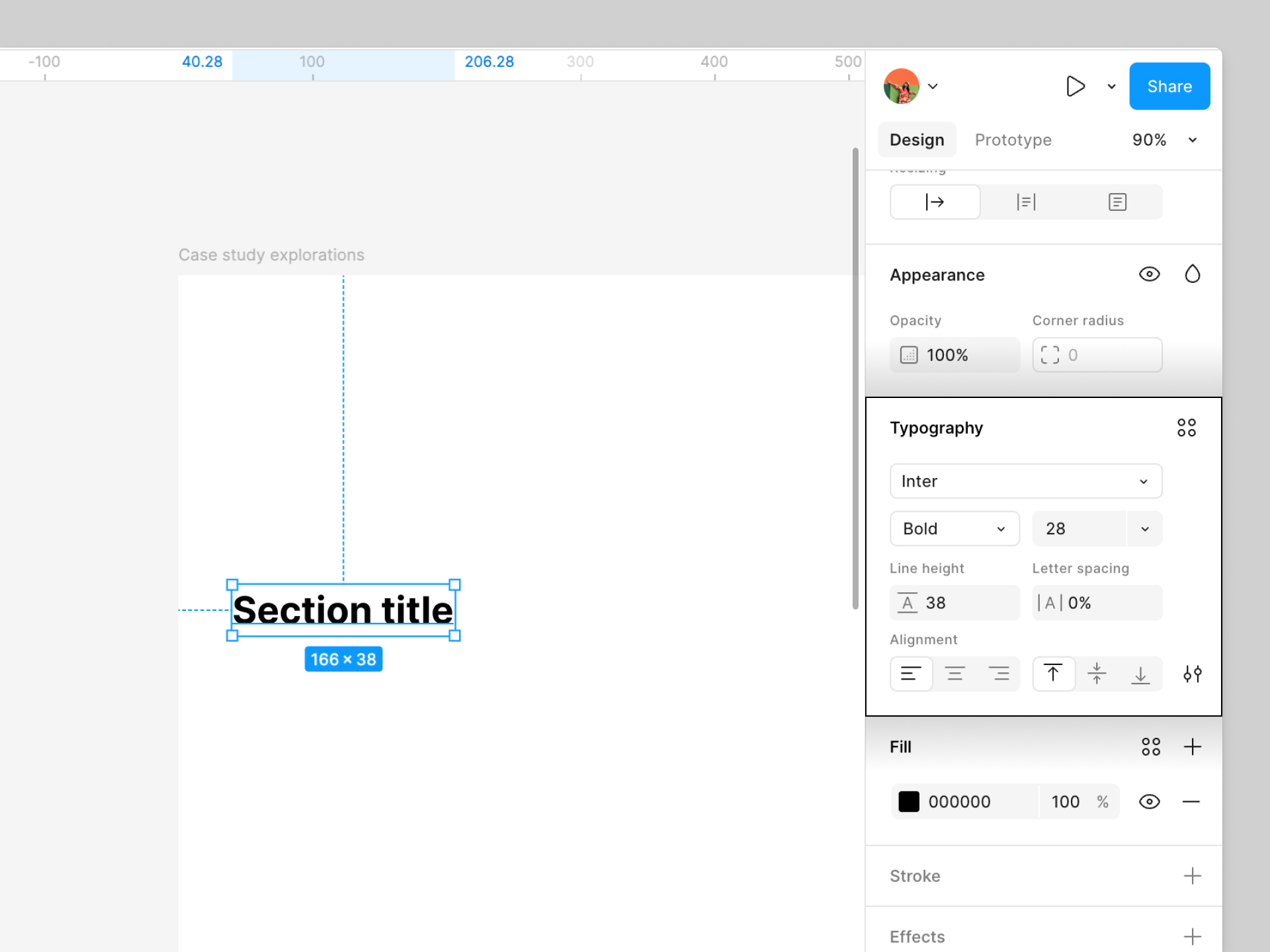

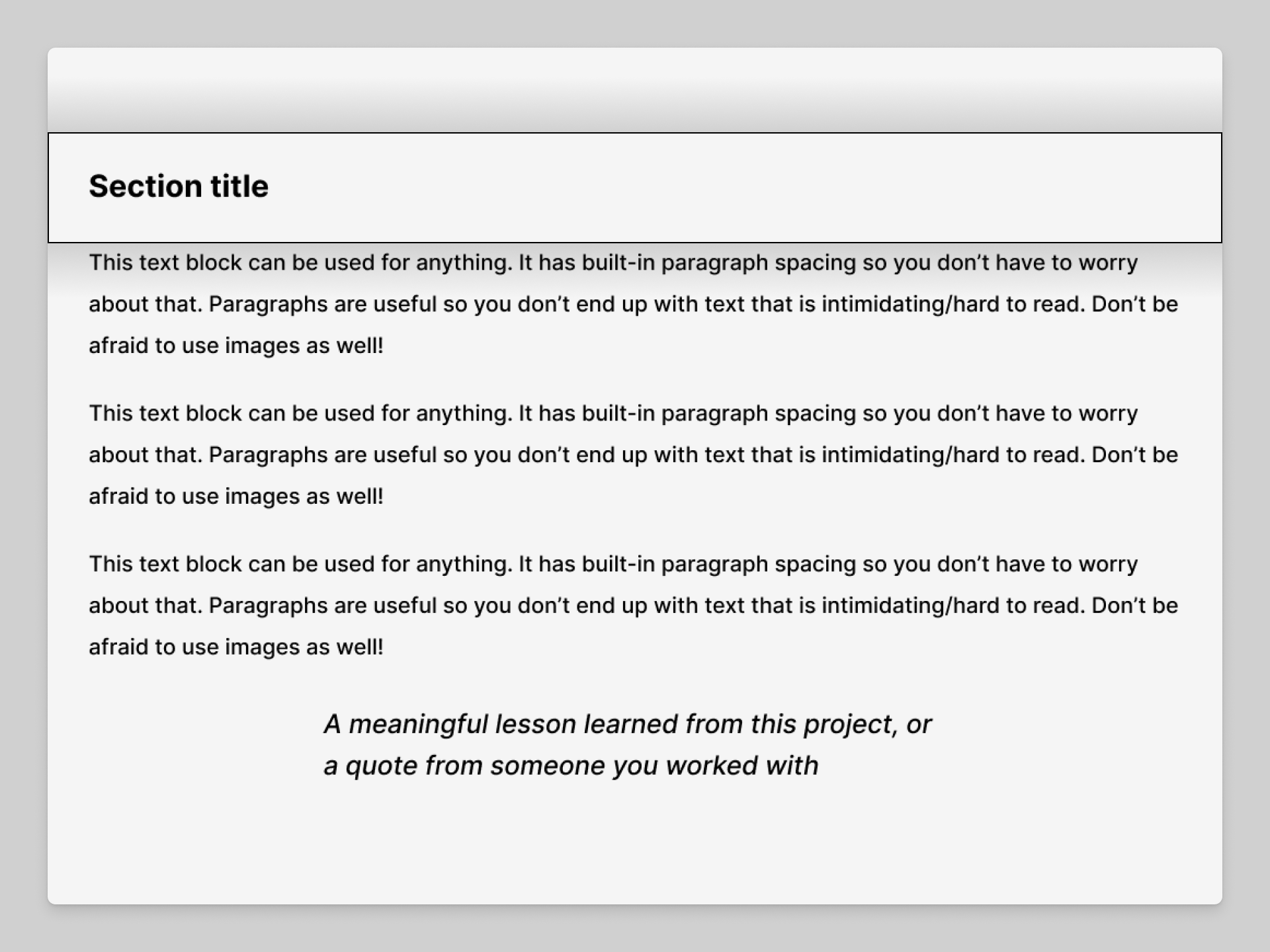

Create the section heading
We'll start with the section heading.
- Select the Text tool and click into the Case study exploration frame.
- Enter a small bit of placeholder text. Click anywhere on the canvas to stop editing the text content.
- Use the Typography section to change the font size to
28
, the font weight toBold
, and the line height to38
. - Rename the text layer to
Section heading
.

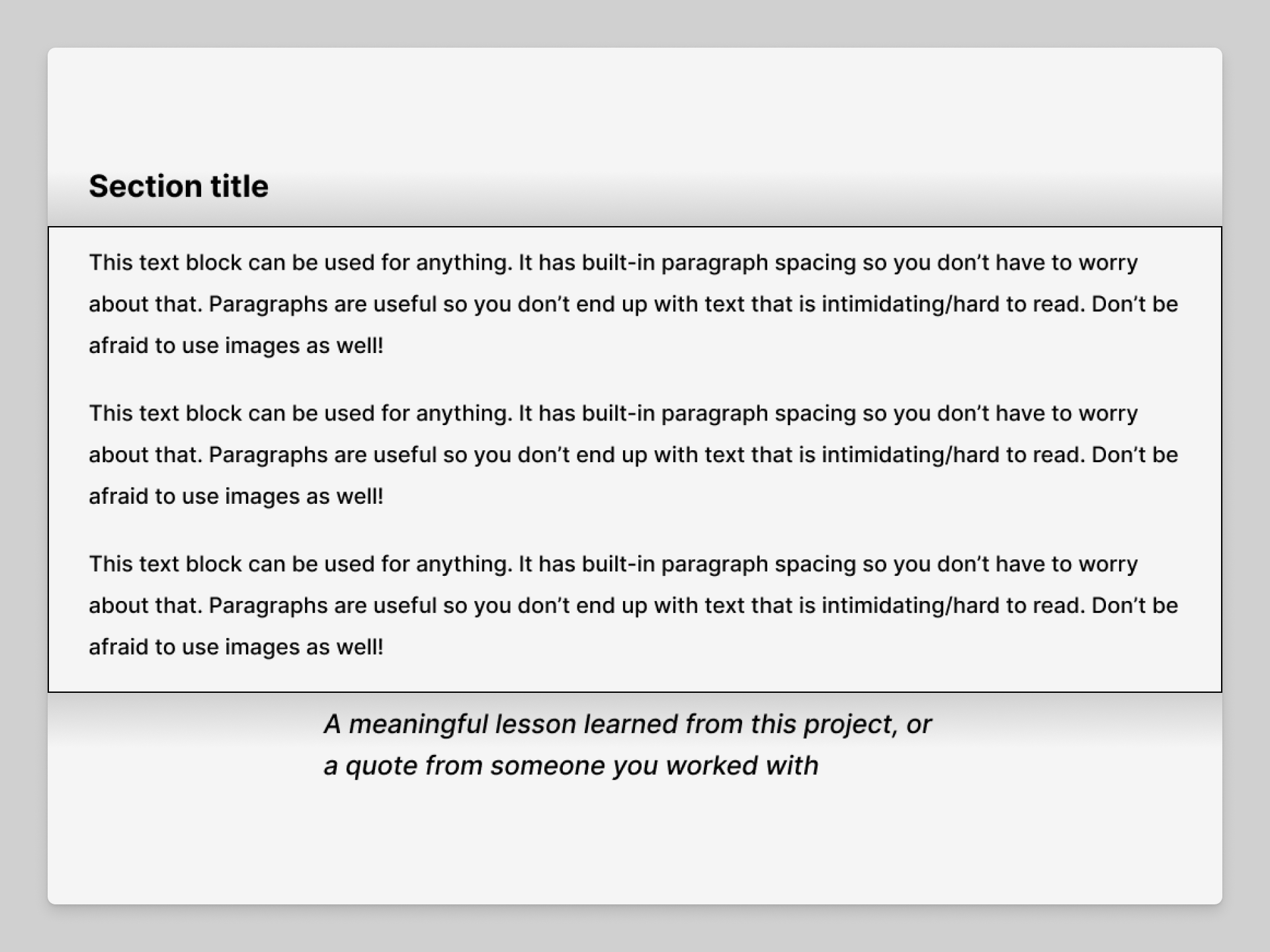

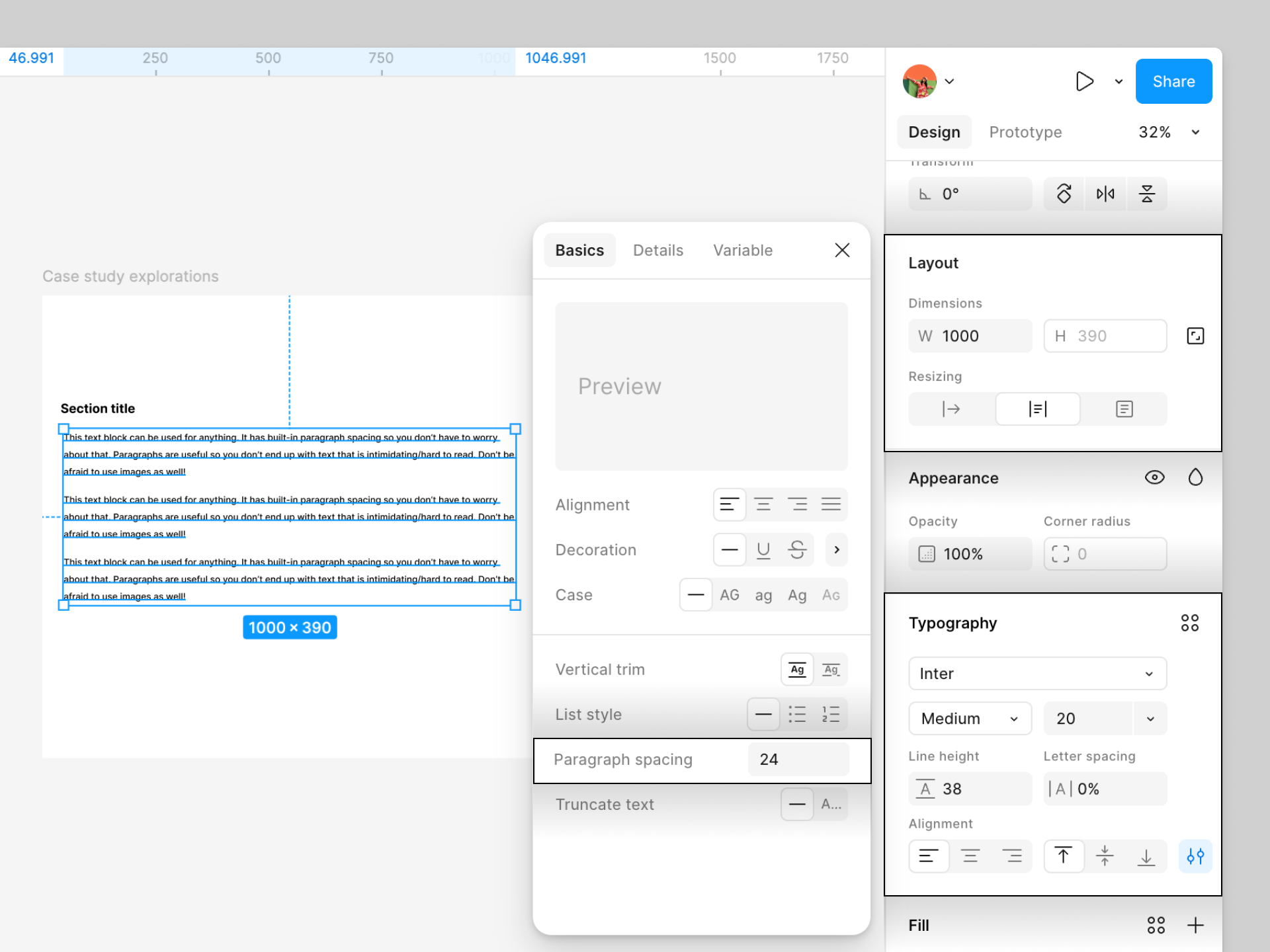

Create the paragraph text
We'll create the paragraph text block next.
- Click on a blank area of the canvas to deselect all layers.
- Select the Text tool again.
- Click and drag to create a text box about two thirds the size of the Case study explorations frame.
- Start typing a few paragraphs of placeholder text. You'll notice that Figma remembered the text properties we set for the previous layer.
- Update the font size to
20
, the font weight toMedium
, and the text resizing to Auto height. Keep the line height set to38
. - To increase readability, open the Type settings and set the Paragraph spacing to
24
. - Set the text layer's width to
1000
to help prevent reading fatigue from having too many words on a single line. - Finally, rename the frame to
Paragraph text
.

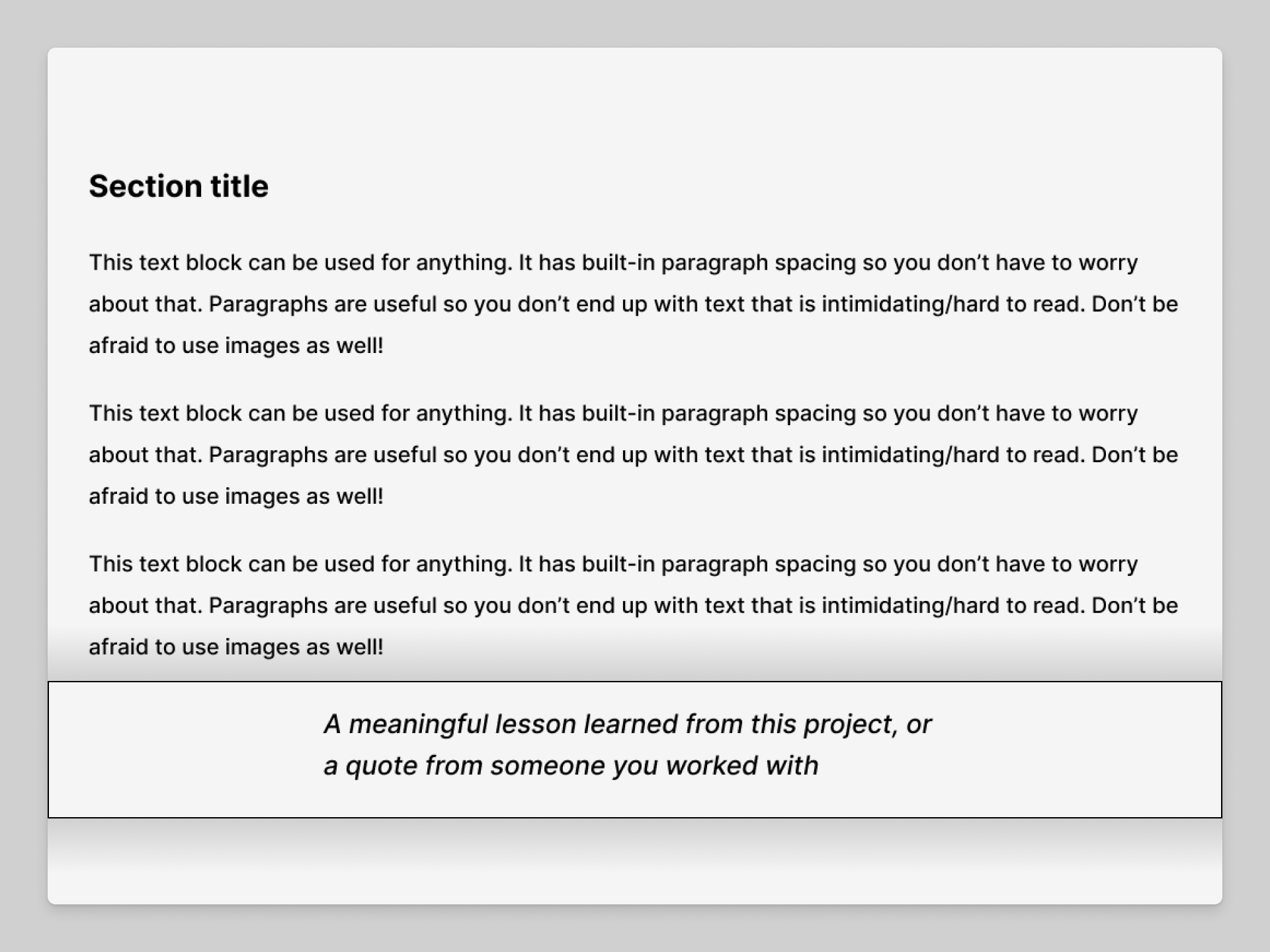

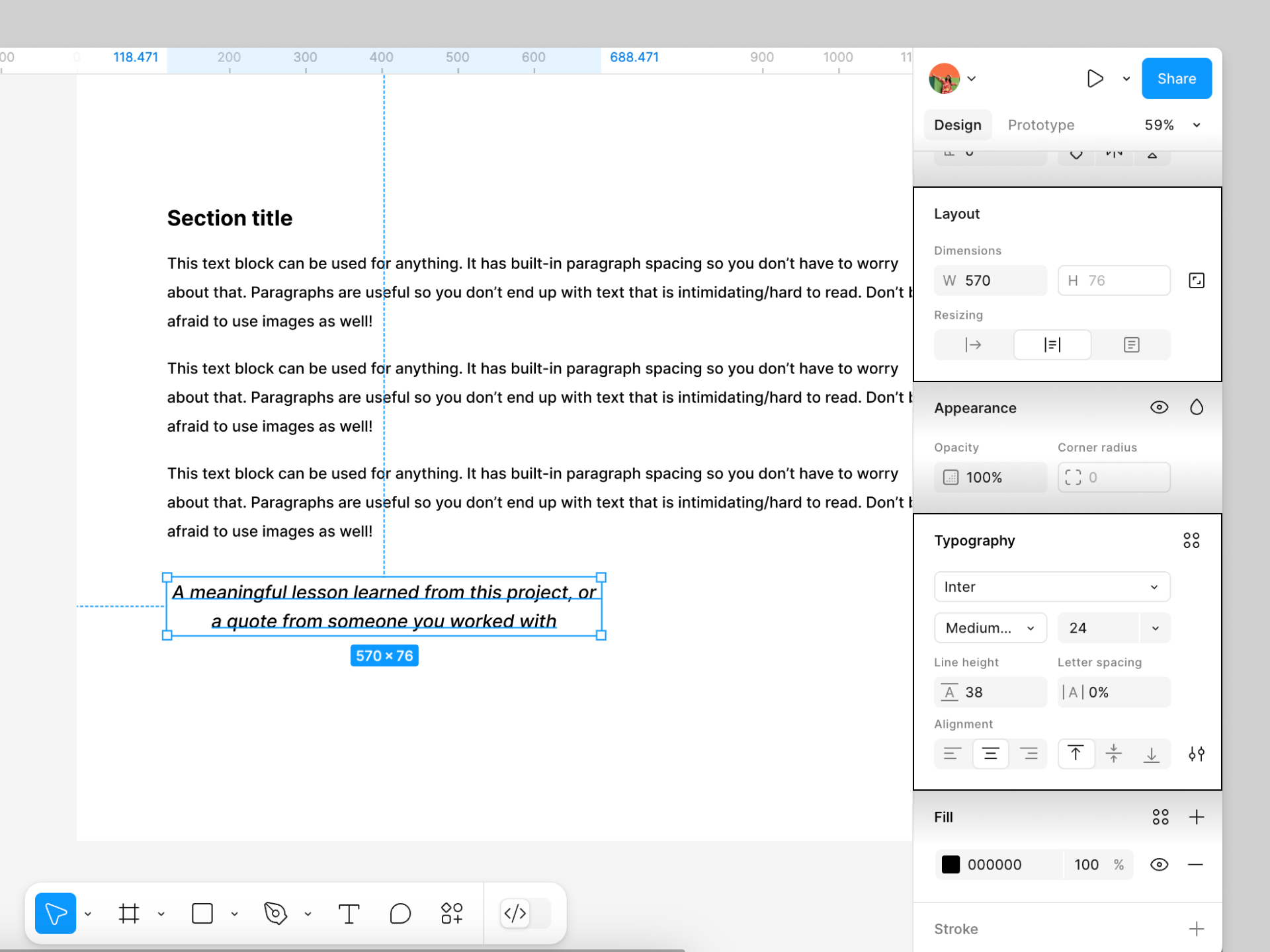

Create the quote block
We'll use another text layer for the quote block.
- Select the Text tool and click and drag to draw another text box about the same width as the Paragraph text layer.
- Enter a placeholder quote.
- Increase the font size to
24
and change the text toMedium italic
to add some emphasis. Make sure the text resizing is set to Auto height, the line height is set to38
, and the paragraph spacing is set to24
. - To help the quotes stand out and act as a break between other content, we'll change the layer's width to
570
and its horizontal alignment to Align center. Learn more about text alignment. - Rename the layer to
Quote
.
