Create a responsive card with auto layout and constraints

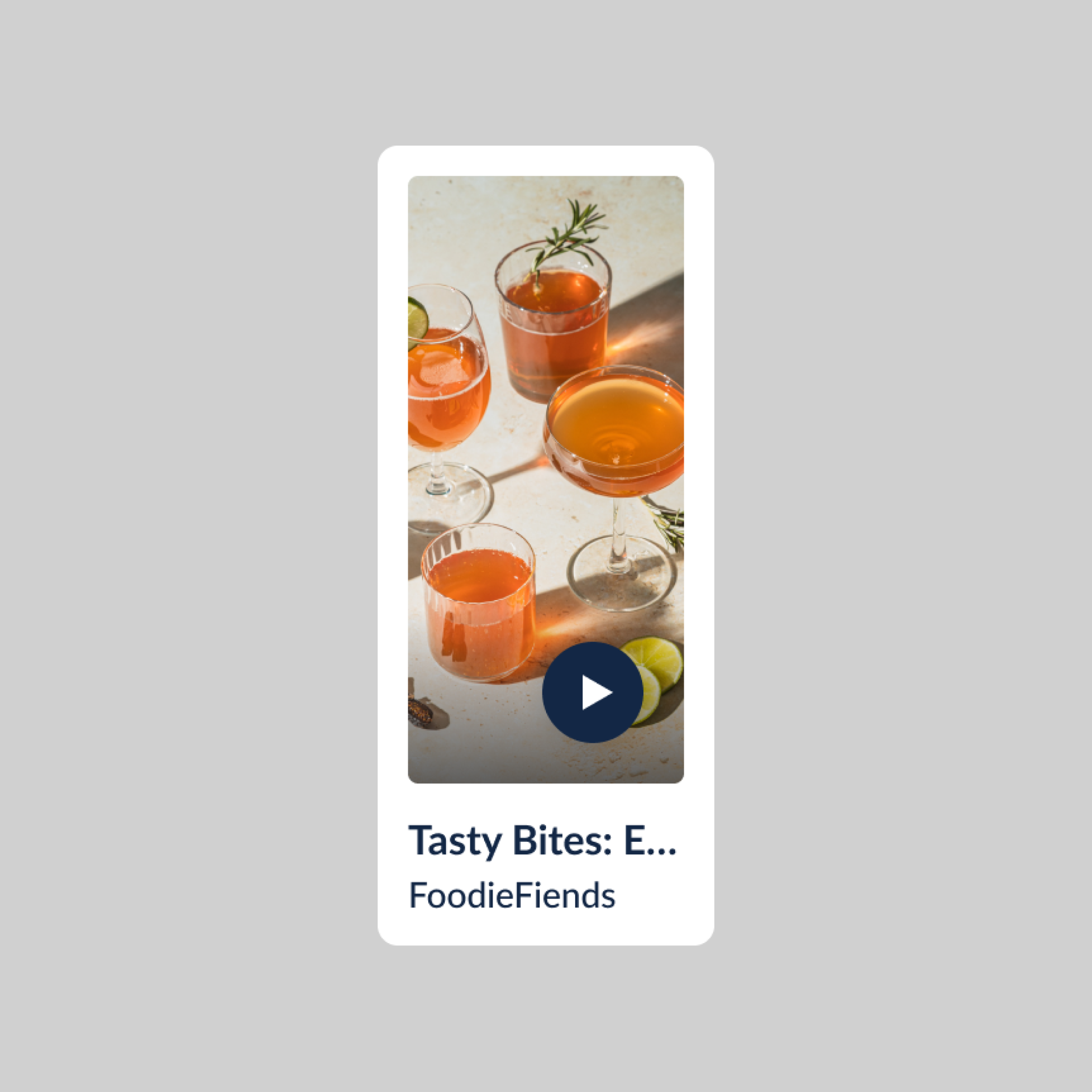

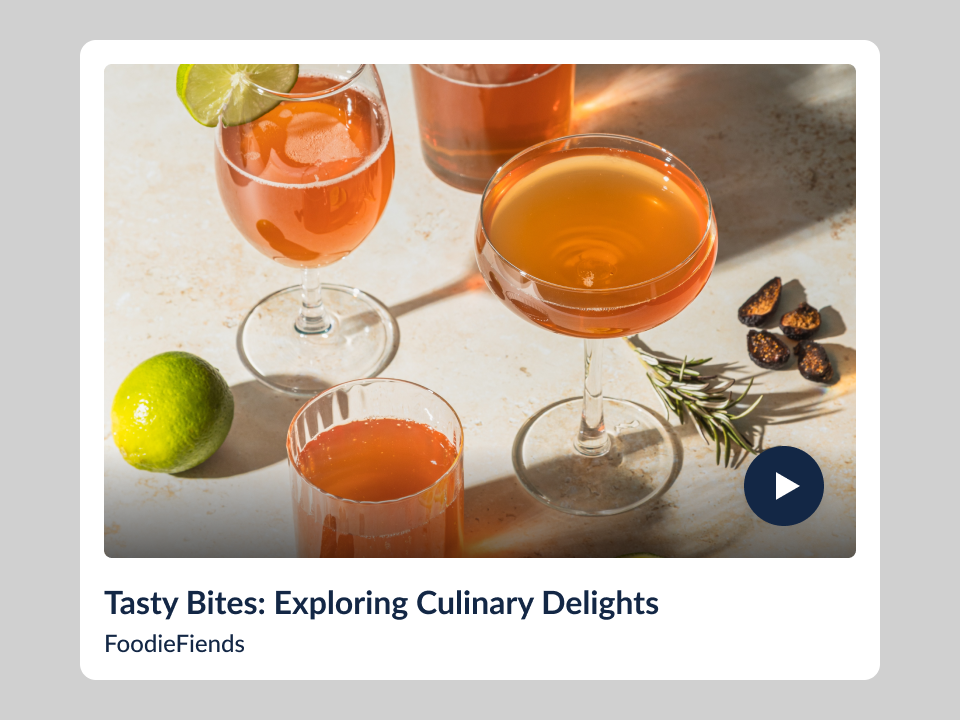

In this project, we’ll be creating a responsive card design for a podcast app. If you follow along step-by-step, your final prototype will look like this:

To create this design, we’ll do the following:

1. Create a play button
2. Create the album art
3. Create two text layers for metadata
4. Add auto layout to album art and metadata
5. Apply minimum and maximum dimensions
6. Turn the card design into a component

Before you begin, have an image ready on your computer as we’re going to use an image as our album art.

Create a play button

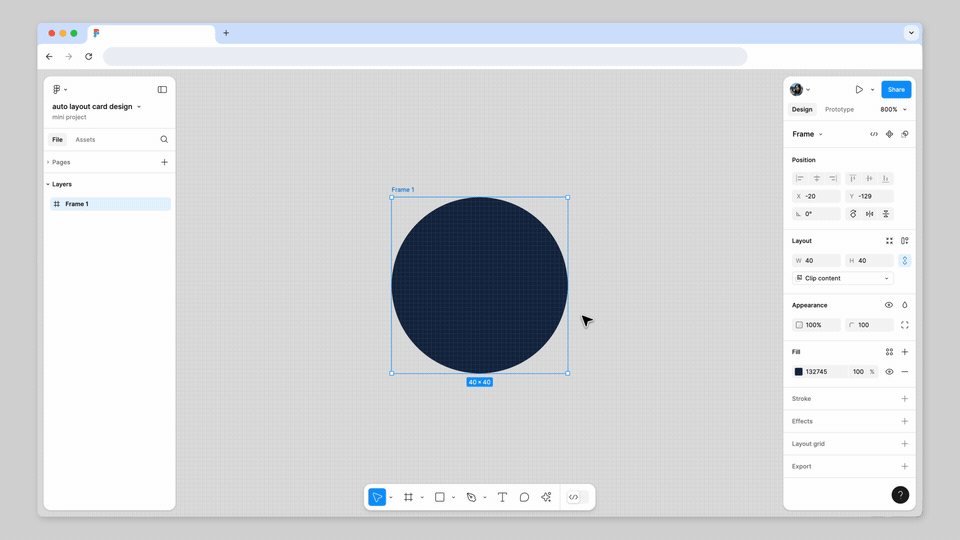

Let’s start by creating the play button’s background first:

1. Create a 40 W x 40 H frame.
2. Change the fill to 132745.
3. Change the corner radius to 100.
4. Rename it to “play-button”.
5. Click the plus sign in the Effects section to add a drop shadow to the frame.
6. Click Effect settings to open the Drop shadow panel.
7. Change the Y position to 0, the Blur to 12, and the opacity to 16%.

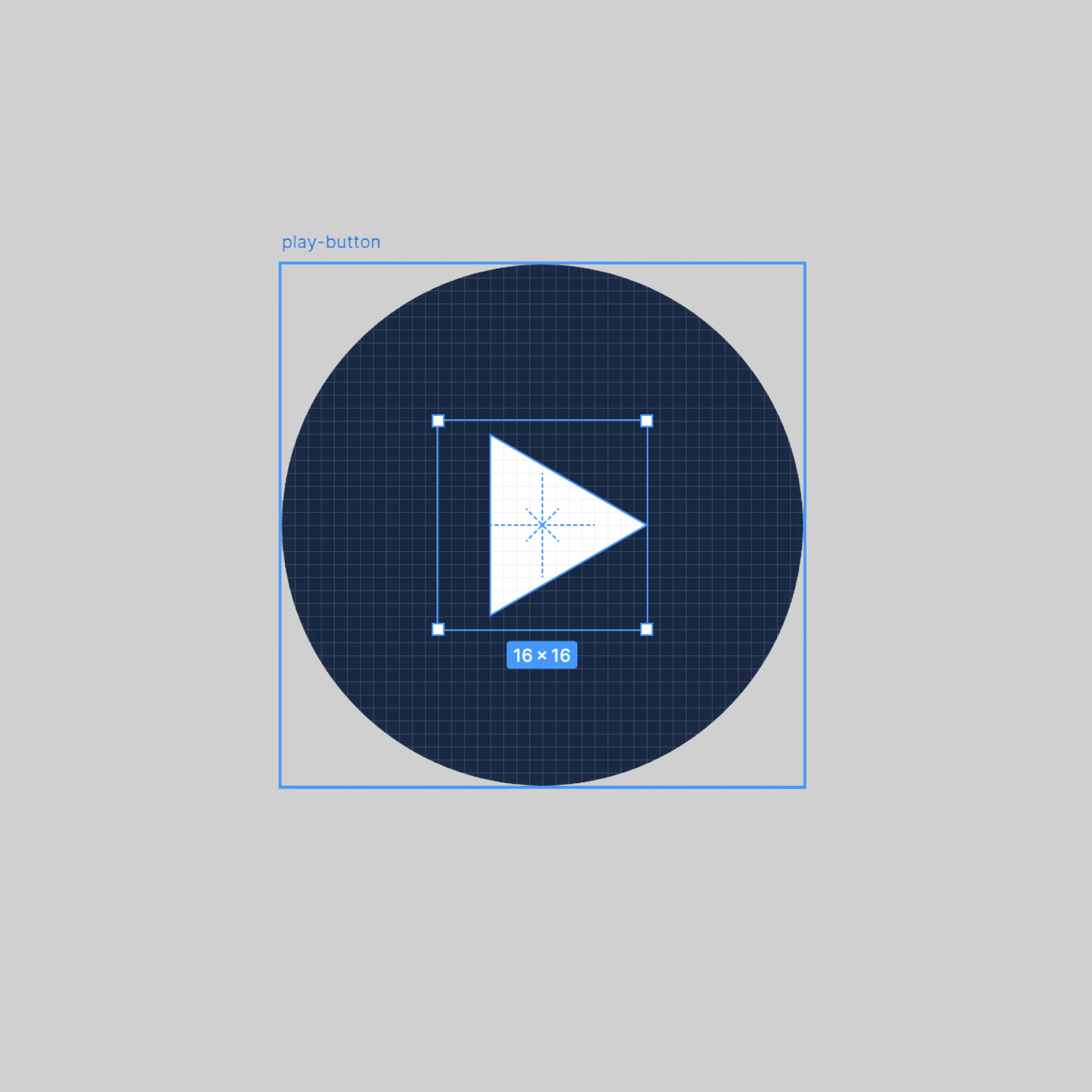

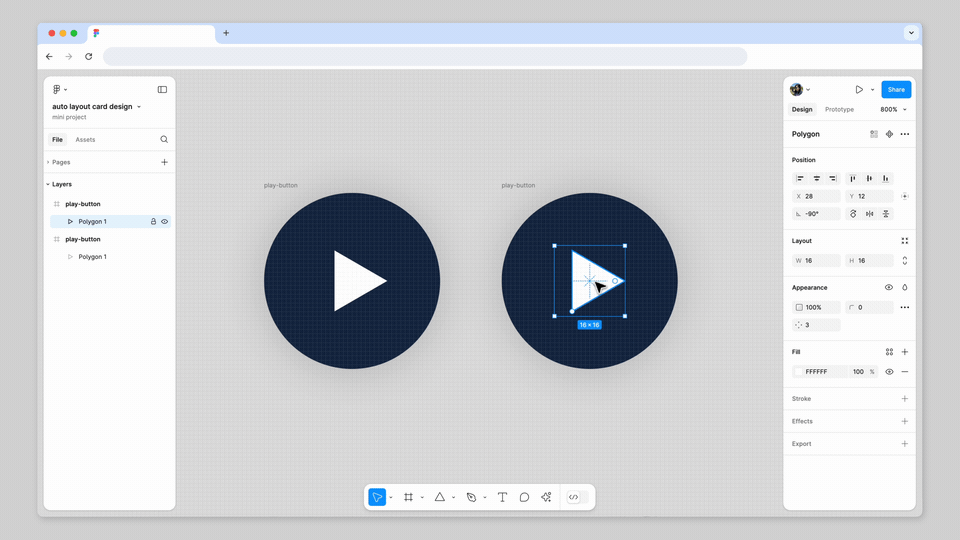

Next, let’s add a play icon to the play-button frame.

1. From the Shape tools in the toolbar, select Polygon.
2. Click and drag inside the play-button frame to create a 16 W x 16 H triangle.
3. Hover over the object’s corner until the rotate icon appears.
4. Hold Shift and rotate the triangle 90 degree clockwise.
5. Change the fill to FFFFFF.
6. Align it to the center of the play-button frame.

We can turn our play button into a component so it can be reused in multiple designs.

1. Select the play-button frame.
2. Click Create component from the toolbar bar.

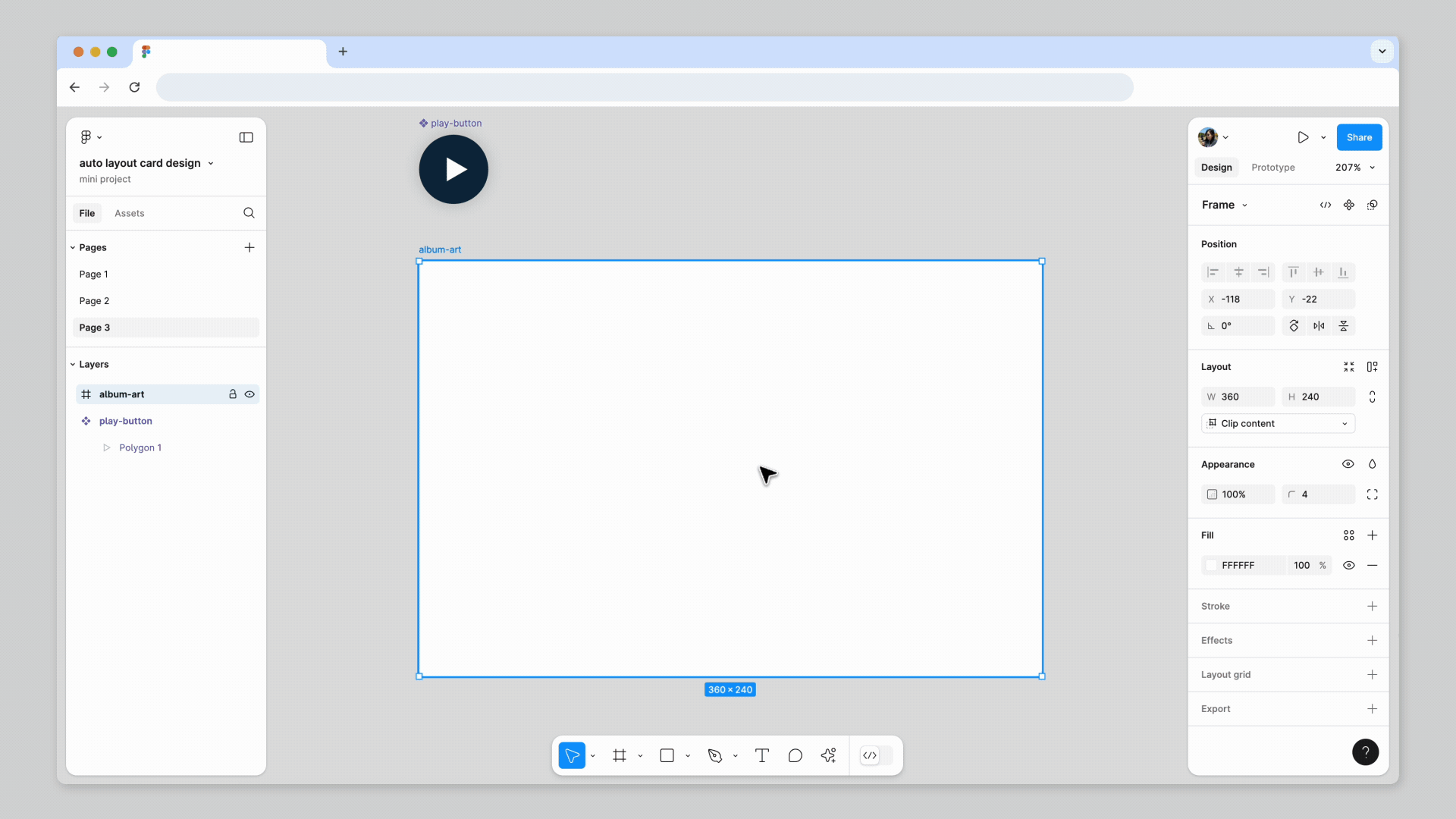

Create the album art frame

1. Select Frame from the toolbar or press F to create a 360 W x 240 H frame.
2. Rename the frame to “album-art”.
3. Change the corner radius to 4.
4. Open the Color picker in the Fill section.
5. Select Image from the fill options.
6. Select Choose image to add an image from your computer.

You can use the new Make images AI feature to create images in Figma design.

1. Select the album-art frame.
2. Open the Actions menu and select Make an image.
3. Enter a prompt in the text field. Try to include as much context as possible.
4. Click Make it or press Return / Enter.

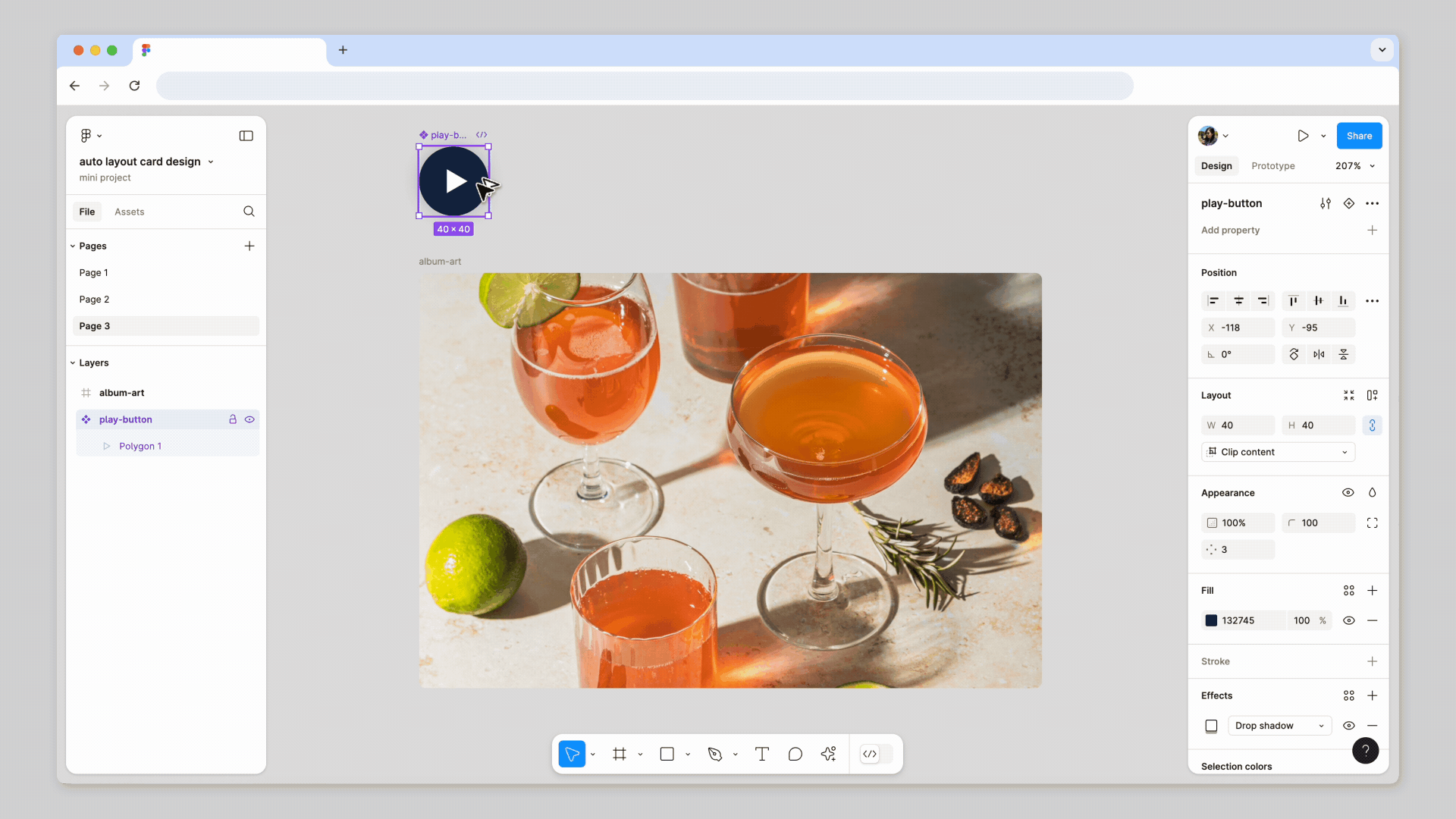

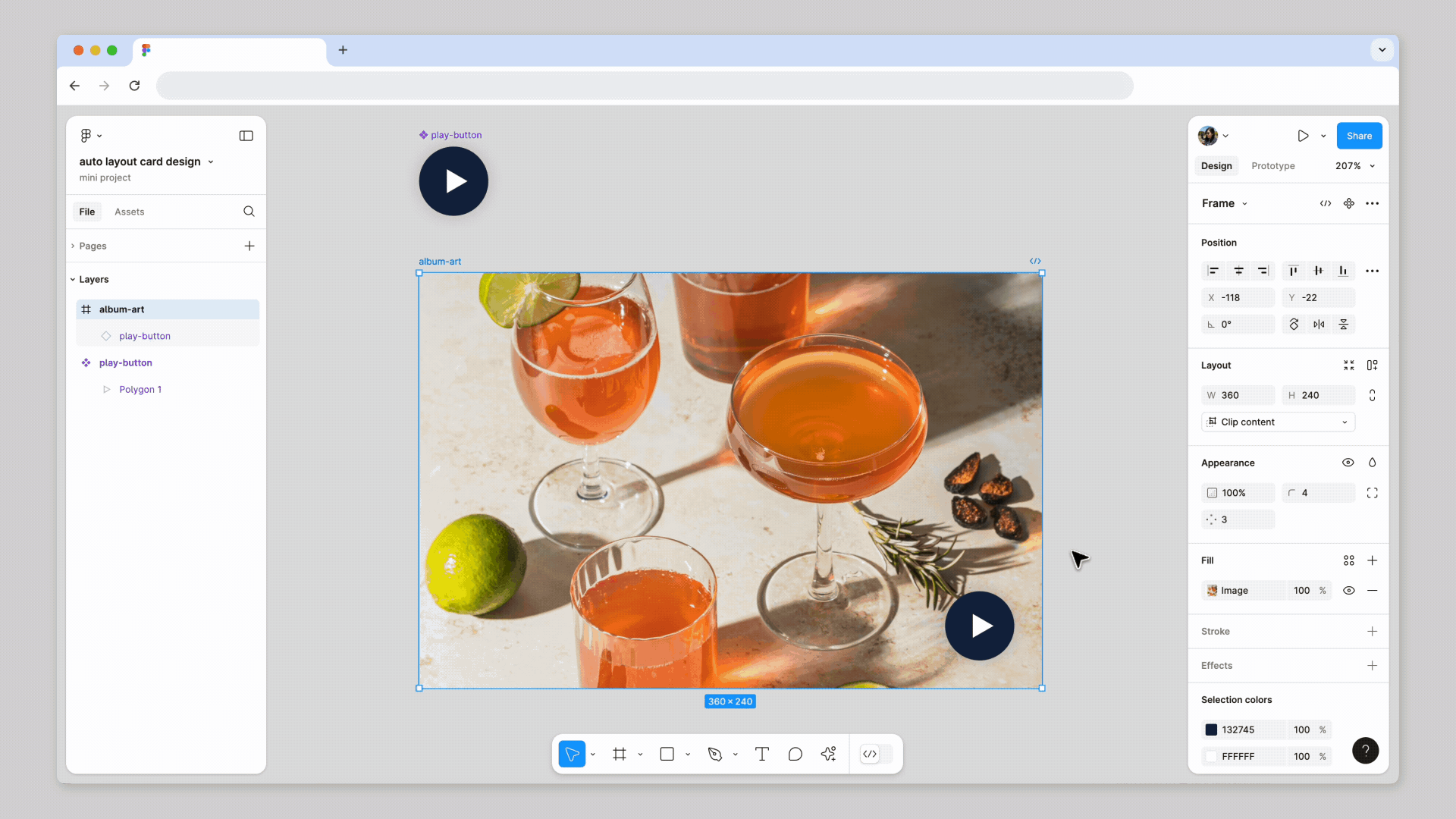

Add play-button instance to the frame

1. Select the play-button component.
2. While holding OptionAlt (Windows), click and drag a play-button instance into the album-art frame.
3. Hold Option (MacOS) or Alt (Windows) and use the arrow key to align the instance to the bottom-right corner of the album-art frame so that it is 16px to the right and bottom edge of the frame.

Add gradient fill to the album-art frame

You may notice that the play button is blended in with the image (especially when you use a darker image). We want to increase the visibility of the play button against the image. To do that, we can add a gradient fill on top of the image.

1. Select the album-art frame.
2. Click the plus icon in the Fill section to add another layer fill.
3. Update the fill opacity from 20% to 100%.
4. Click the layer fill and select Gradient from the color picker panel.
5. Select the left color stop in the panel and update its opacity to 0%.
6. Select the right color stop in the panel and update its opacity to 60%.
7. Hold Shift and drag the top white handle to adjust the size of the gradient.

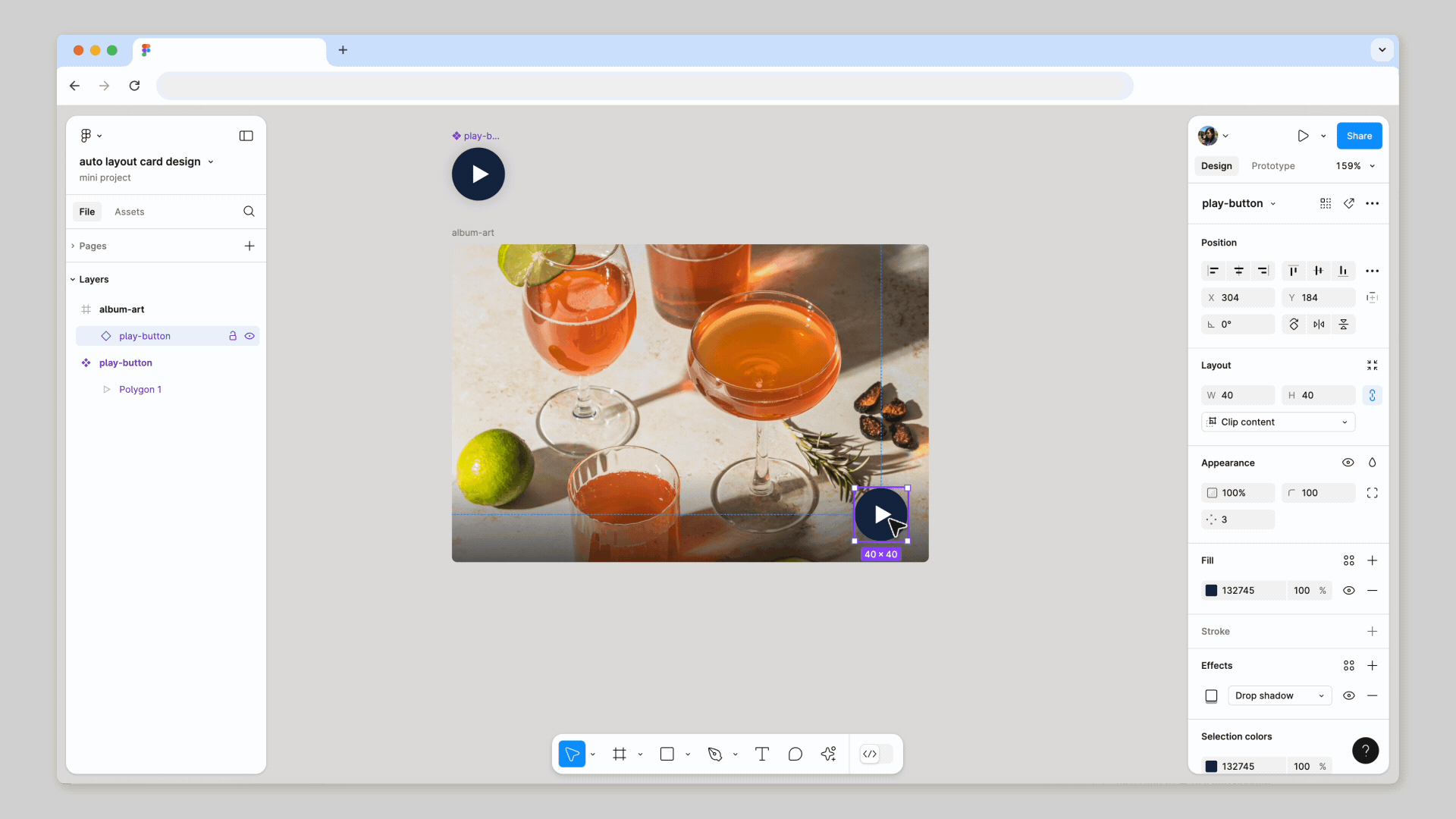

Apply constraints to the play button

When you resize the album-art frame, you’ll notice that the play button is not responsive to its parent frame.

We can fix this by applying constraints to the play button.

1. Select the play-button instance.
2. Select  Constraints to open the Constraints menu.
3. Change the horizontal constraint to Right and the vertical constraint to Bottom.

Now when you resize the album-art frame, the play button will remain at the bottom-right corner of its parent frame. Nice!

Create two text layers for metadata

Next, we’ll create two text layers for the podcast title and the podcast creators.

To create a text layer for the podcast title:

1. Select Text from the toolbar or press T.
2. Click on canvas to create a text layer.
3. Enter the podcast title. In our example, we’ll use “Tasty Bites: Exploring Culinary Delights” for our title.
4. In the text properties panel, update the typeface to Lato, font weight to Bold and font size to 16.
5. Update the fill to 132745.
6. Press Command R (Mac) or Control R (Windows) to rename the layer to “title”.

Let’s also create a text layer for the podcast creator.

1. Duplicate the title layer to create a new text layer for the podcast creators.
2. Double-click to edit the new text layer. In our example, the podcast creators will be “FoodieFiends”.
3. In the text properties panel, update the font weight to Medium and font size to 12.
4. Press Command R (Mac) or Control R (Windows) to rename the layer to “creator”.

Add auto layout to text layers

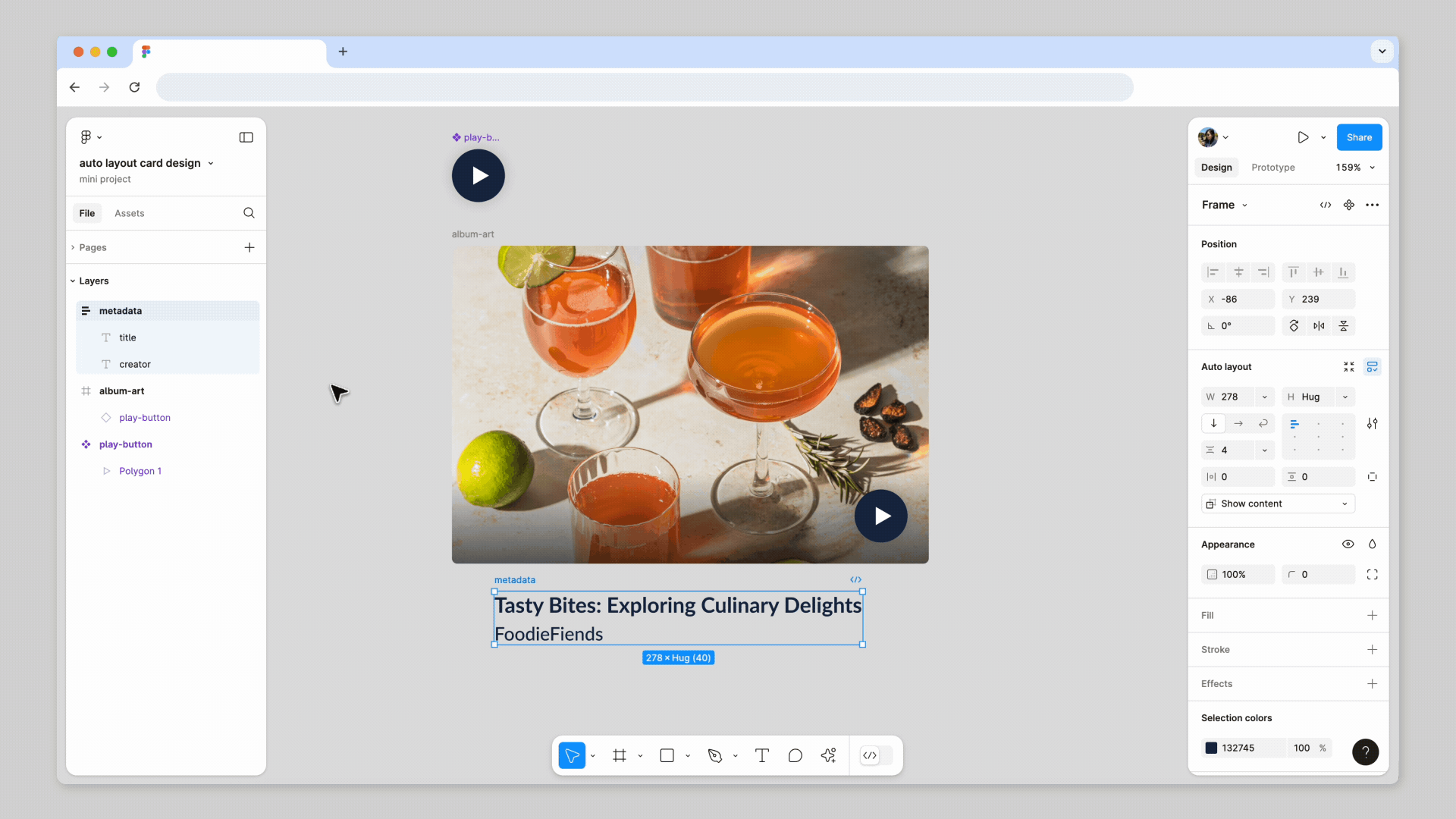

Now that our text layers are created, let’s wrap them in an auto layout frame.

1. Hold Shift and select both the title and creator layers.
2. Press Shift A to add auto layout.
3. Rename the new frame to “metadata”.
4. Change the Gap between vertical items settings to 4.

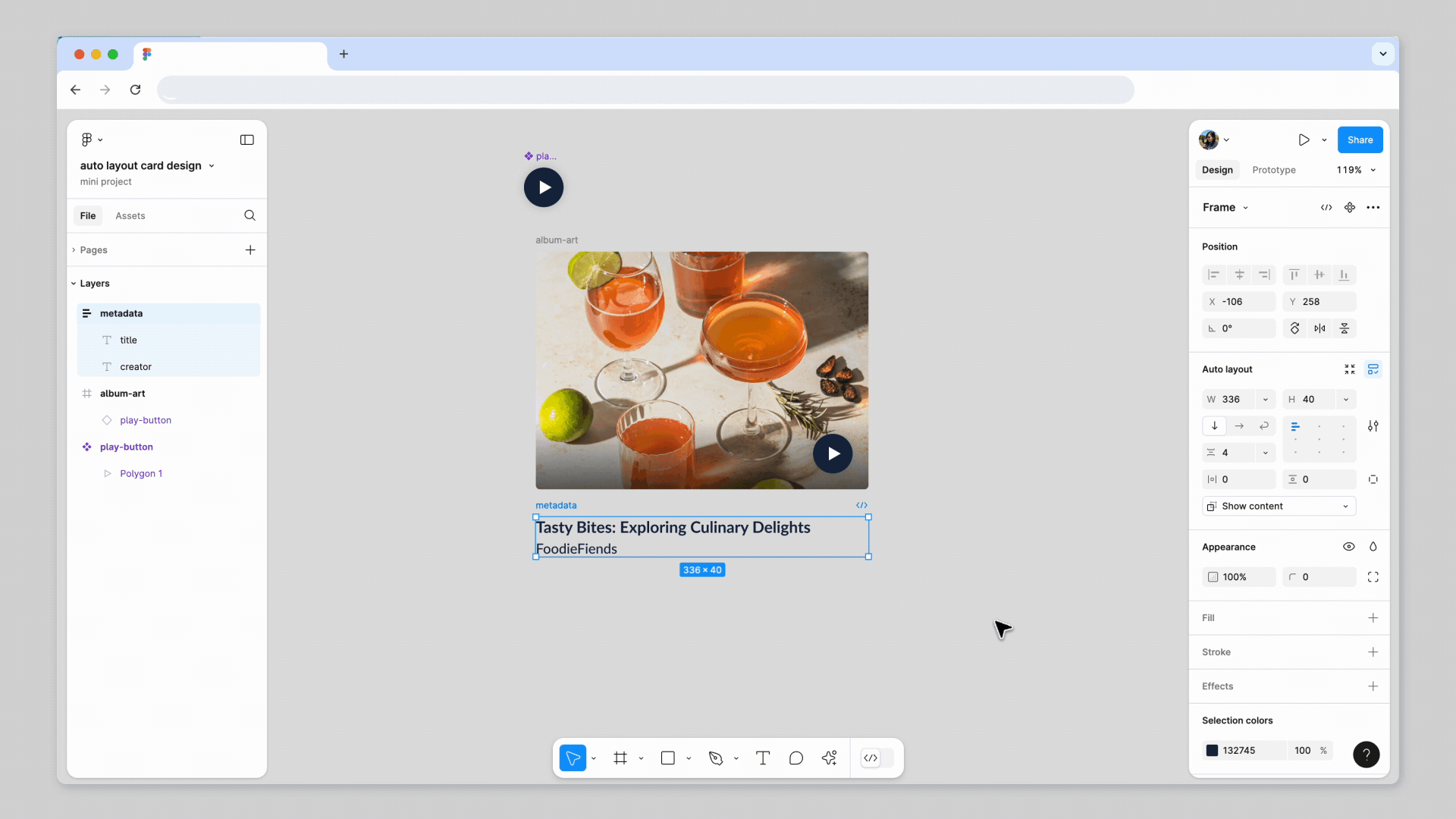

You’ll notice that the text is pushed to multiple lines when the metadata frame’s width is shorter than the length of the text. In our design, we want to keep our text layer to one line and truncate the extra text.

1. Select both the title and creator layers.
2. Click Type settings in the Text section.
3. Click Truncate text to enable text truncation.
4. Set Max lines to 1.

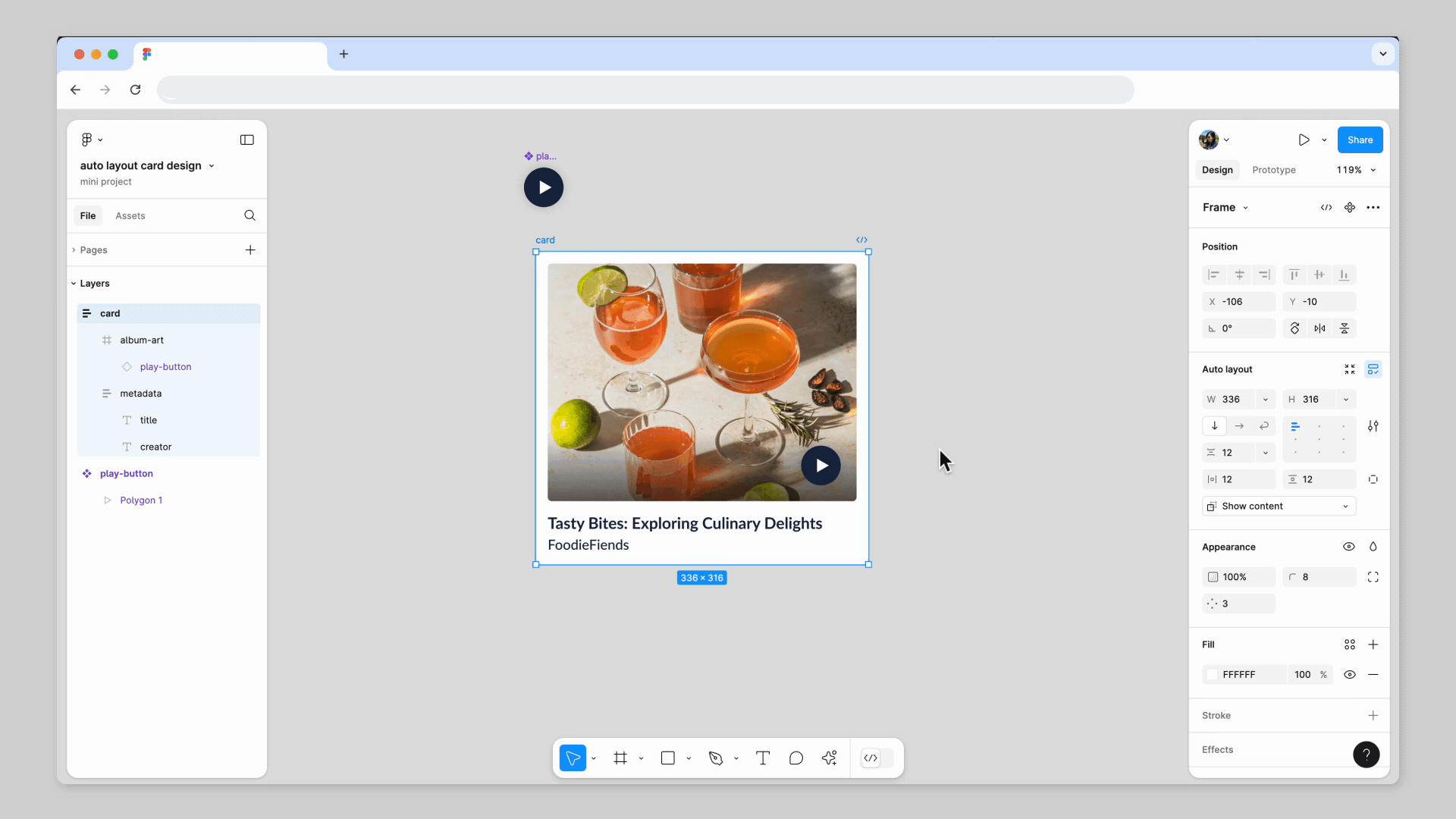

Add auto layout to the album art and metadata

1. Select both album-art and metadata frames.
2. Press Shift A to add auto layout.
3. Click the plus in the Fill section.
4. Update the Gap between vertical items setting to 12.
5. Hold Command (Mac) or Ctrl (Wins) and click on the Horizontal padding field to enable All padding field.
6. Enter 12 in the field.
7. Rename the frame to “card”.
8. Change the corner radius to 8.

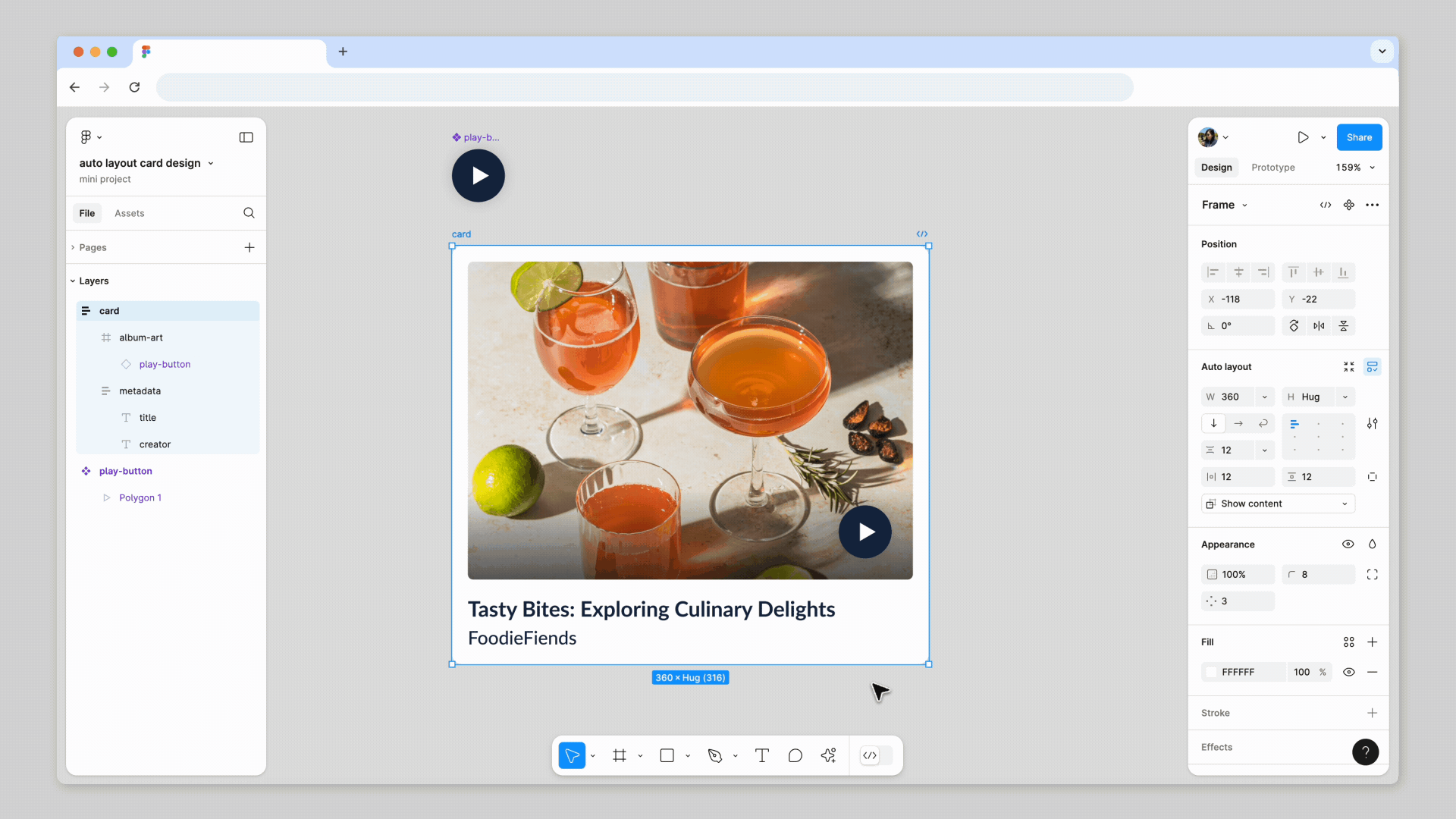

The card design looks great! But when you resize the card frame, you’ll notice that its child layers are not very responsive. Let’s update the resizing options to fix the issue.

1. Select the album-art frame.
2. Set both Horizontal resizing and Vertical resizing to “Fill container”.
3. Select the metadata frame.
4. Set Horizontal resizing to “Fill container”, and Vertical resizing to “Fixed height”.

Try resizing the card again to see how response everything is!

Apply minimum and maximum dimensions

Applying a minimum and maximum width and height to the card will help us avoid funky designs like this:

1. Select the card frame.
2. Select the Width field and choose Add min width.
3. Set the minimum width to 200.
4. Select the Width field again and choose Add max width.
5. Set the maximum width to 400.
6. Repeat the steps in the Height field, and set the minimum height to 240 and maximum height to 320.

Now if you resize the card frame, it will stop resizing when it reaches its minimum or maximum dimensions.

Turn the card into a component

Let’s turn the card design into a component so it can be reused in our designs.

1. Select the card frame.
2. Click Create component.

What's next?

Our card component is done! Try creating some instances, updating the content, and adding some responsive designs. Have fun!
