Use patterns as a fill or stroke
Before you Start
Who can use this feature
Available on any plan
Anyone with can edit
access to a file can apply fills and strokes

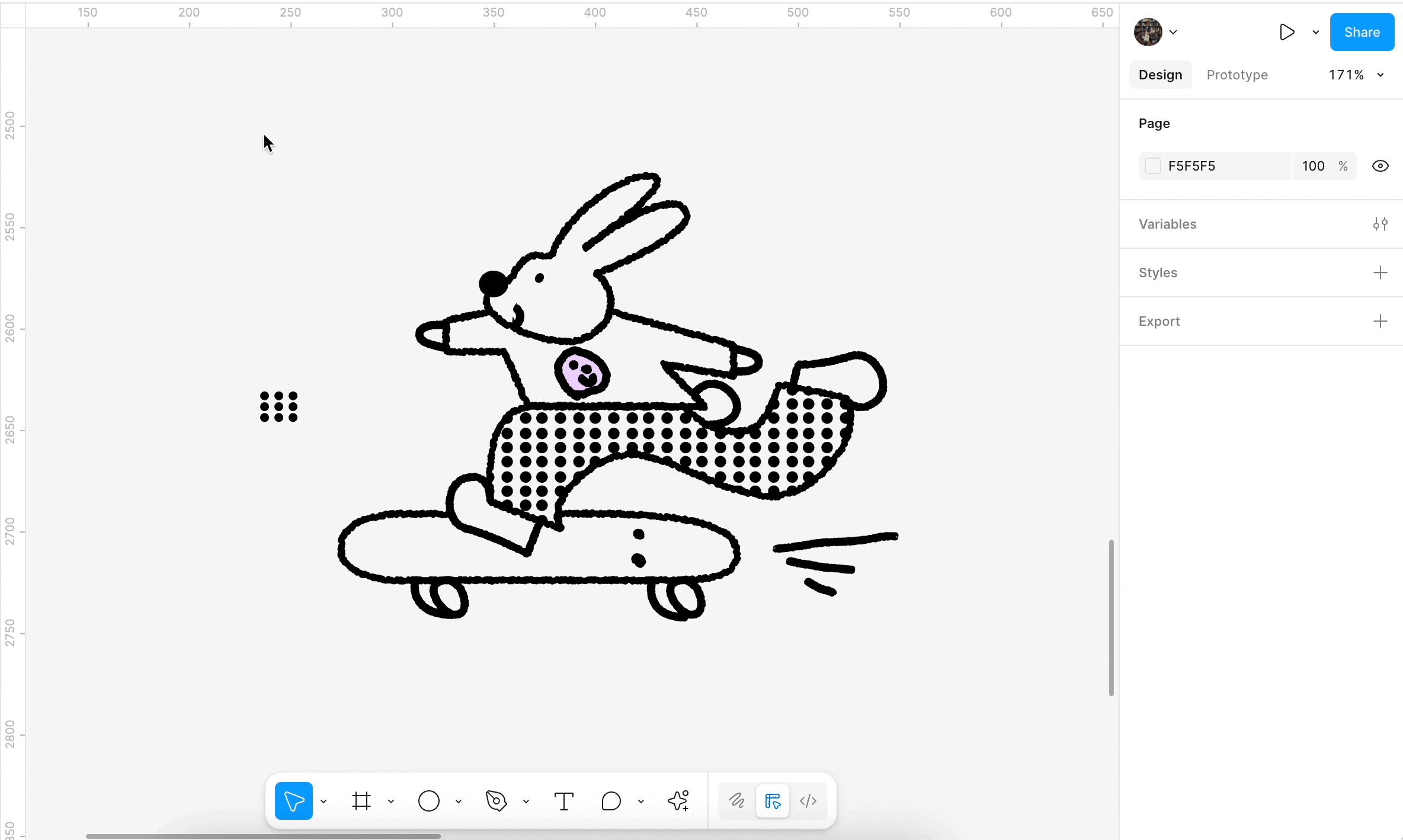

You can use a pattern as a layer’s fill or stroke. The pattern’s source references another object on the canvas in the same file. This could be a single layer, or multiple layers in a group or frame.
Change a layer’s fill or stroke to a pattern

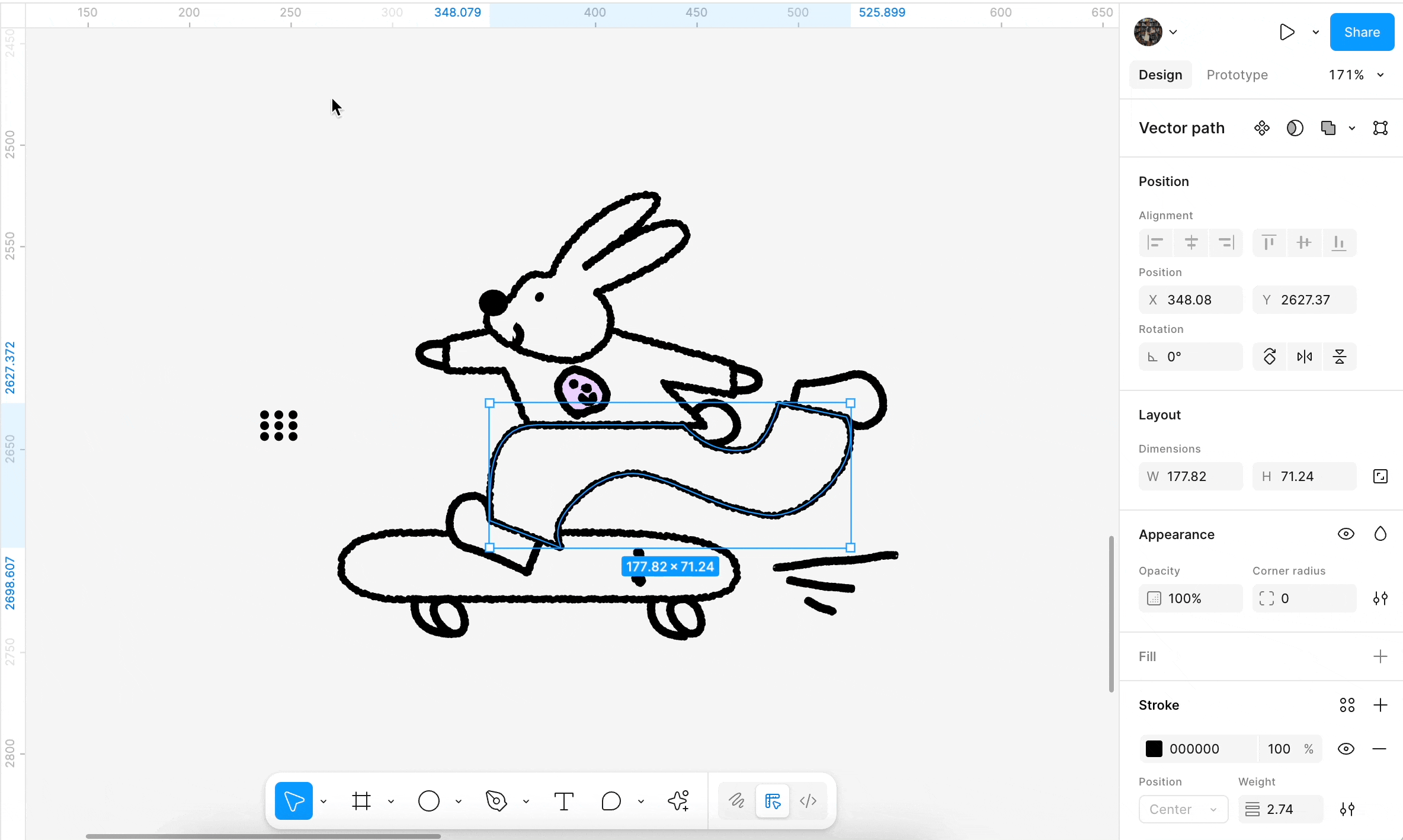

- Select a layer on the canvas.
- Click the swatch in the Fill section of the right sidebar to open the color picker.
- Select Pattern from the fill options.
- Click Select source, then select another object on the canvas.
- Use the pattern options to set the tile type, scale, spacing, alignment, and opacity.
Pattern fills are dynamic. If you update the pattern’s source object, the pattern will automatically update on each layer where its used.
Tip: You can use transforms and boolean operations to create unique shapes for your patterns.
