Create a widget for development

This article covers how to create a new widget in FigJam, and is only one step in the widget development process.

The widget development process:

1. Setup your development environment →
2. Create a widget for development (current article)
3. Publish widgets to the Figma Community →
4. Manage widgets as a developer →

Create a widget

Create a widget to begin developing and testing it in FigJam. There are two methods for creating a widget:

• Widget templates ↓
• Import a manifest ↓

Widget templates

If you use templates to register a widget, Figma will create a manifest.json file on your computer, along with other files and information you'll need to build the widget.

• code.ts: the code for the widget in TypeScript
• code.js: the compiled Java Script from code.ts
• package.json: which describes the widget and includes things like build scripts
• tsconfig.json: which configures the TypeScript development
• README.md

If you create a widget from a FigJam file, you can choose a widget template to create your widget for development.

1. Open a file on the Figma desktop app.
2. Open the Create widget modal.
   • Right-click the board or canvas> Widgets > Development > New widget.

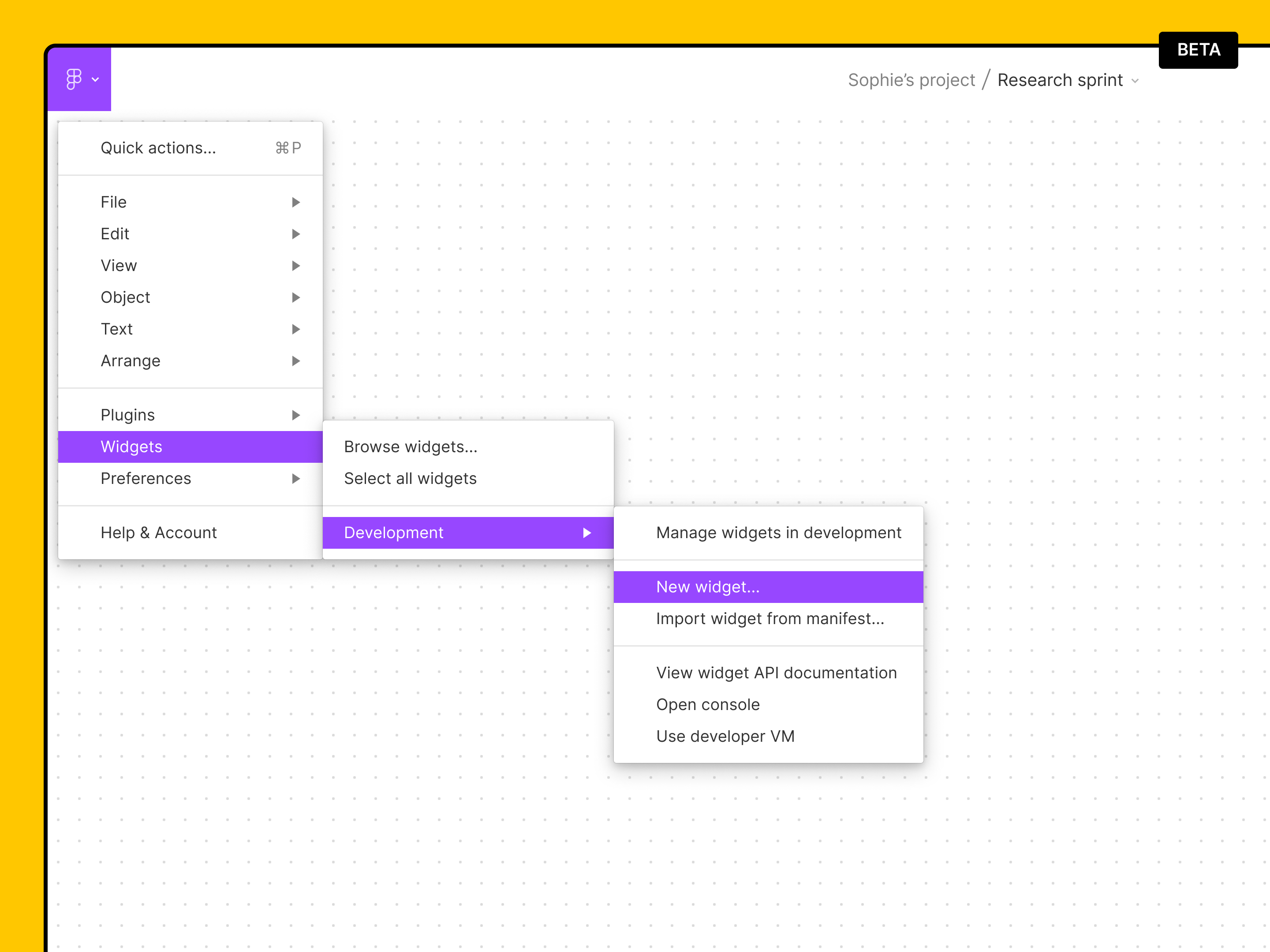

   • Or open the file menu > Widgets > Development > New widget.

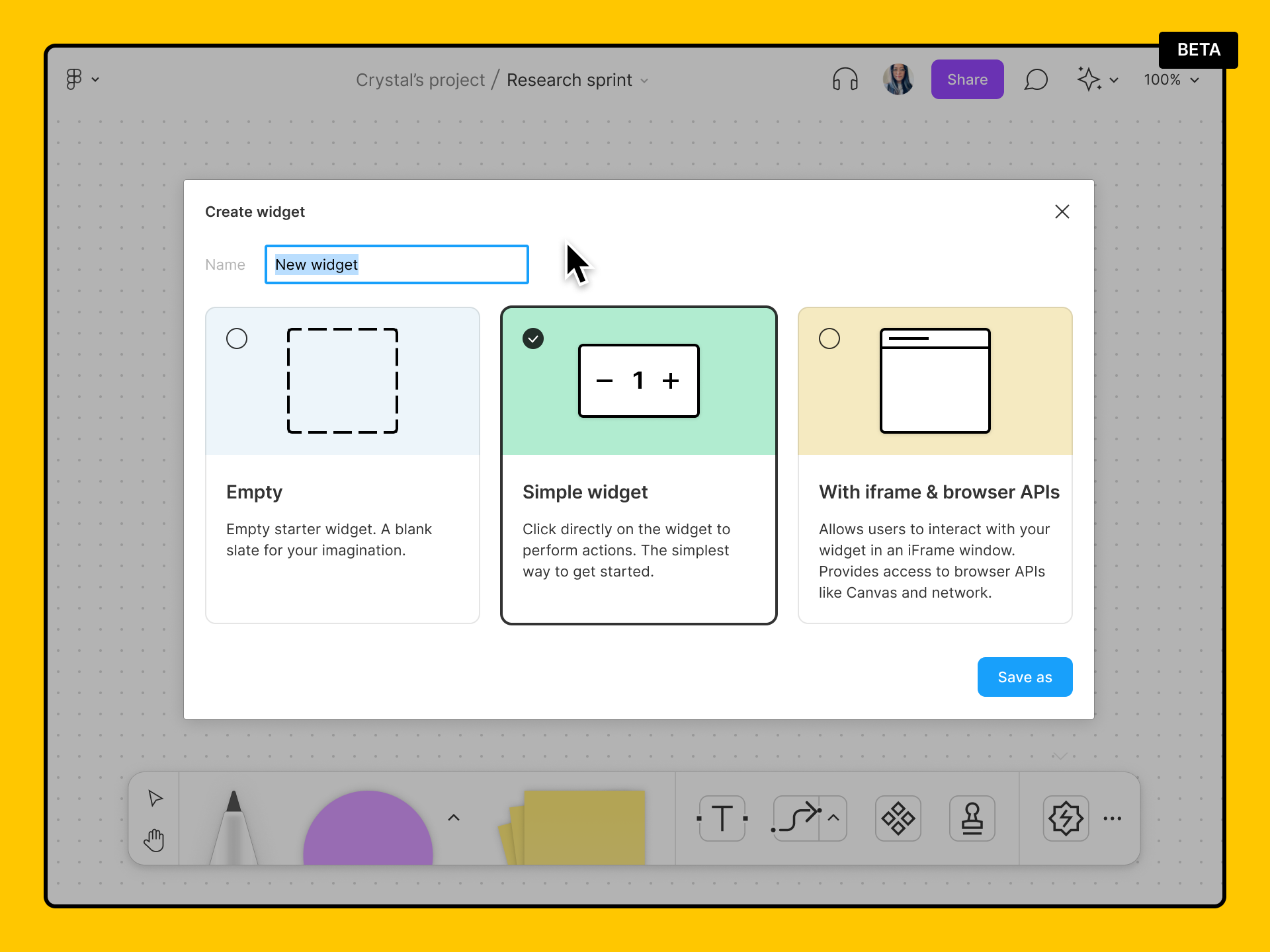

3. In the Create widget modal, give your widget a name and select a product to develop for:
   • Figma design + FigJam: Create a universal widget that works for both products.
   • Figma design: Select this to create a widget for Figma design only.
   • FigJam: Select this to create a widget for FigJam only.
4. In the Create widget modal, give your widget a name and select a template:
   • Empty: A blank slate where you can build your widget from the ground up.
   • Simple widget: Use this template to build a widget that users can directly click on to perform actions. The simplest way to get started.
   • With iFrame & browser APIs: Use this template if you want users to interact with your widget in an iFrame window, which also provides access to browser and third-party APIs.
5. Click Save as.
6. Figma will prompt you to enter a name and select a location on your computer to store your widget's source code. Click Save to confirm the download.

You can now access your widget from Widgets > Development in your file. You'll see your widget's name appear in this menu.

Import the widget from a manifest

If you're building the widget from scratch, you can import your manifest to create your widget.

1. Open a file on the Figma desktop app.
2. To import a manifest, do one of the following:
   • Right-click the board or canvas > Widgets > Development > Import widget from manifest
   • You can also open the file menu > Widgets > Development > Import widget from manifest
   • Or use quick actions > Import widget from manifest
3. Select a manifest file from your computer, then click Open to confirm the import.

You can now access your widget from Widgets > Development in your file. You'll see your widget's name appear in this menu.

View the widget's code

To view where a widget's source code is located:

Figma design

1. Open a Figma file on the Figma desktop app.

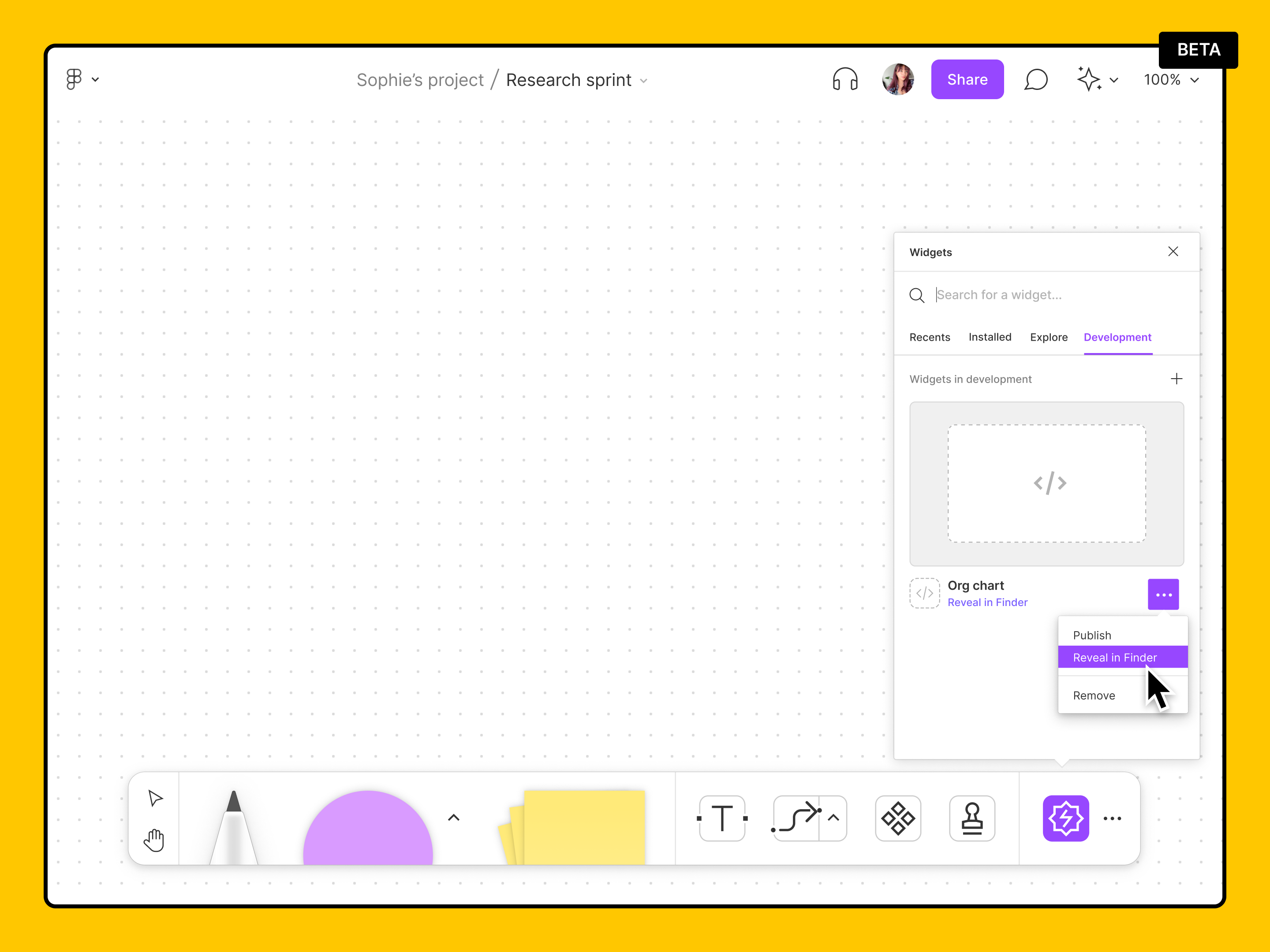

2. Click and select the Widgets tab. Once you have a widget in development, you’ll be able to see the Development section in the dropdown menu.
3. Click next to the widget and select Reveal in Finder.

FigJam

1. Open a FigJam file on the Figma desktop app.
2. Click and select the Widgets tab. Once you have a widget in development, you'll be able to see the Development section.
3. Click next to the widget and select Reveal in Finder.

Figma will open the folder with the manifest file selected.

Insert your development widget

You can insert your widget into a FigJam file while it's in development to test your widget.

1. Figma design

   1. Click and select the Widgets tab. Find your widget under the Development section.
   2. To insert your widget, do one of the following:
      • Click or drag the widget into the canvas
      • Use the right-click menu or file menu > Widgets > Development > Select the widget
      • Use quick actions and search for the widget by name.

   FigJam

   1. Click and select the Widgets tab. Find your widget under the Development section.
   2. To insert your widget, do one of the following:
      • Click or drag the widget into the board
      • You can also use the right-click menu or file menu > Widgets > Development > Select the widget
      • Or use quick actions and search for the widget by name.

   Once you've finished building your widget, share it with the Figma Community so others can install and use it! Learn how to publish your widget to the Figma Community →

   Back: Widgets developer guide Next: Publish a widget
