FD4B: Add prototype connections
Connect the project card button to the case study page
Before we add a connection, let’s take a peek at our portfolio design to plan out what we want each interaction to feel like. Which elements would we expect to be able to interact with, and what would it do? If a user clicks the button in a project card, we want them to go to the case study page. Let's add that connection first.

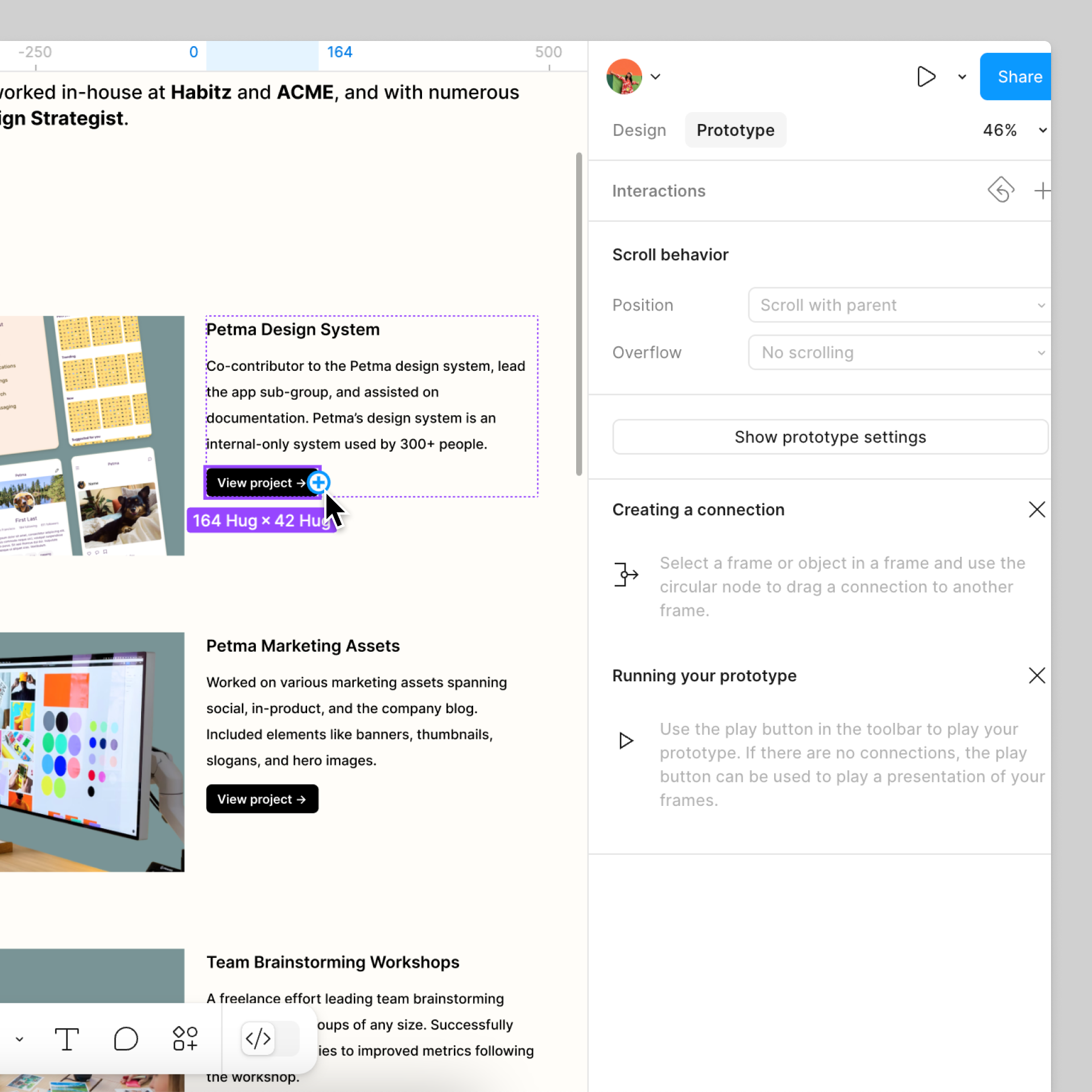

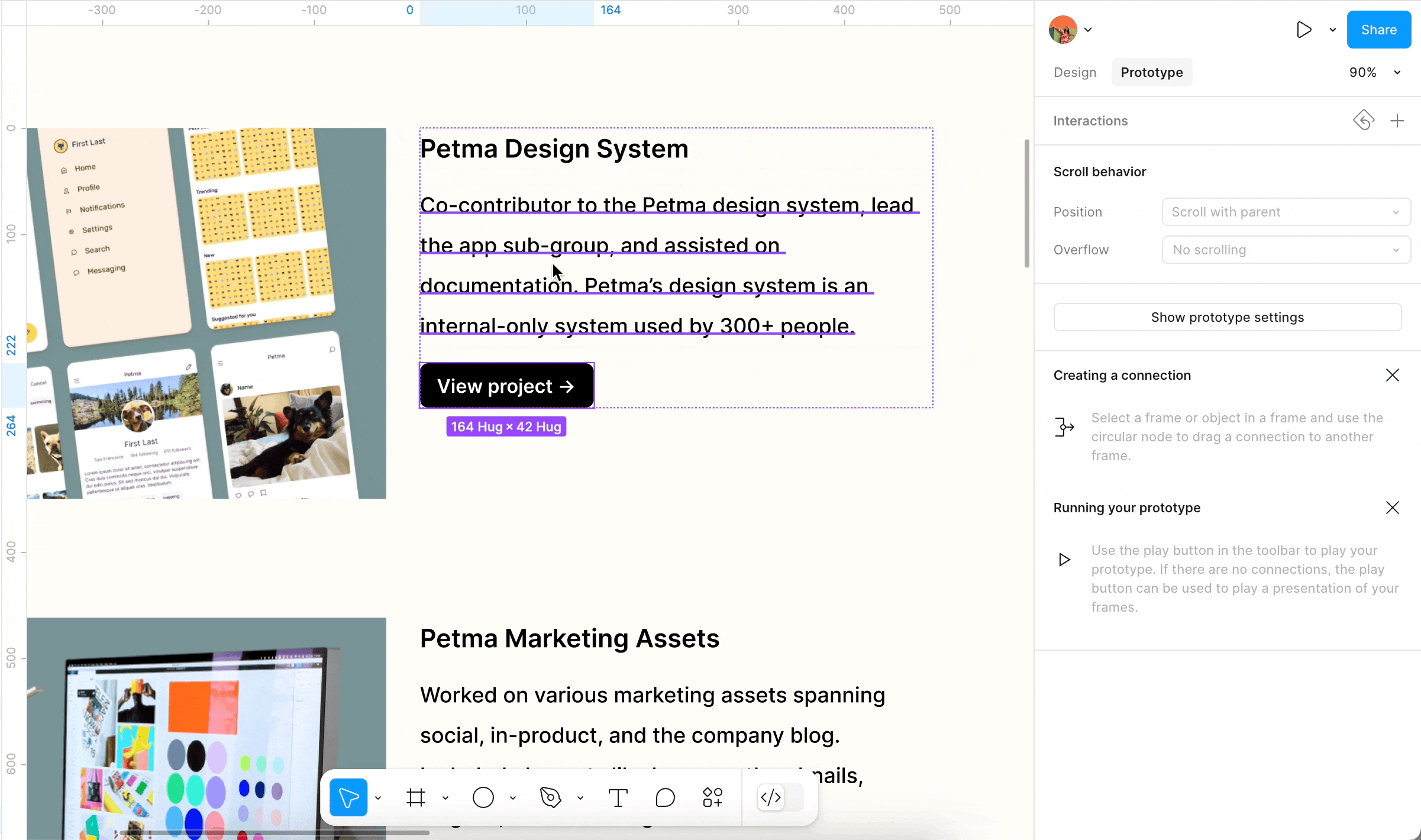

Switch to the Prototype tab in the right sidebar. From here, we can access the prototyping features and properties. Now when we select the button, a new option appears on the canvas—a blue circle on its edge. If we hover over it, it changes to a blue plus that we can use to add a new connection.
To add a connection to the button:
- Select the button.
- Hover over the blue circle on the button layer's edge until a blue plus icon appears.

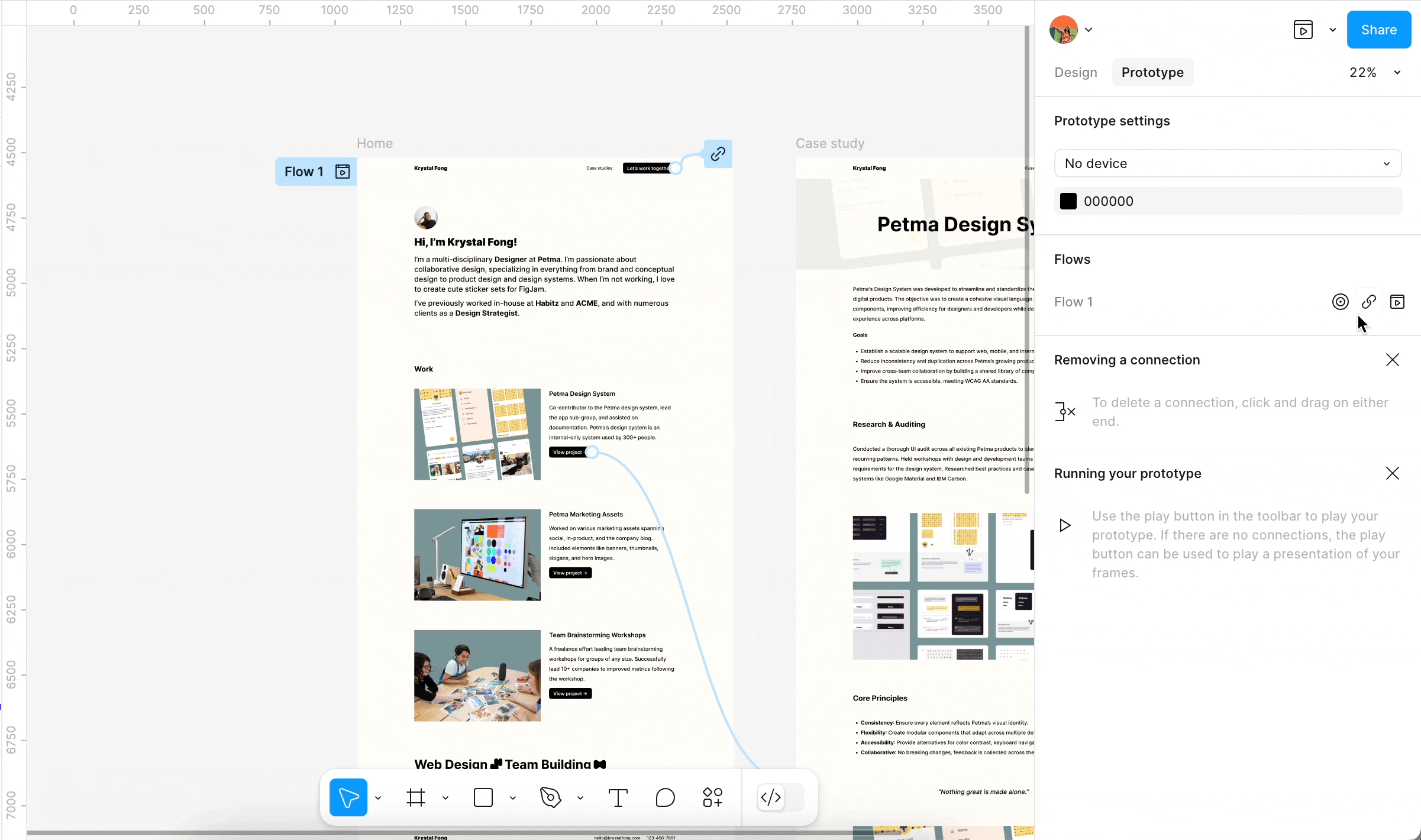

- Click and drag from the blue circle towards the Case study frame.
- Figma will snap the connection noodle to the Case study frame when you get close enough.
- Release your cursor to complete the connection.
Flows and interaction menu

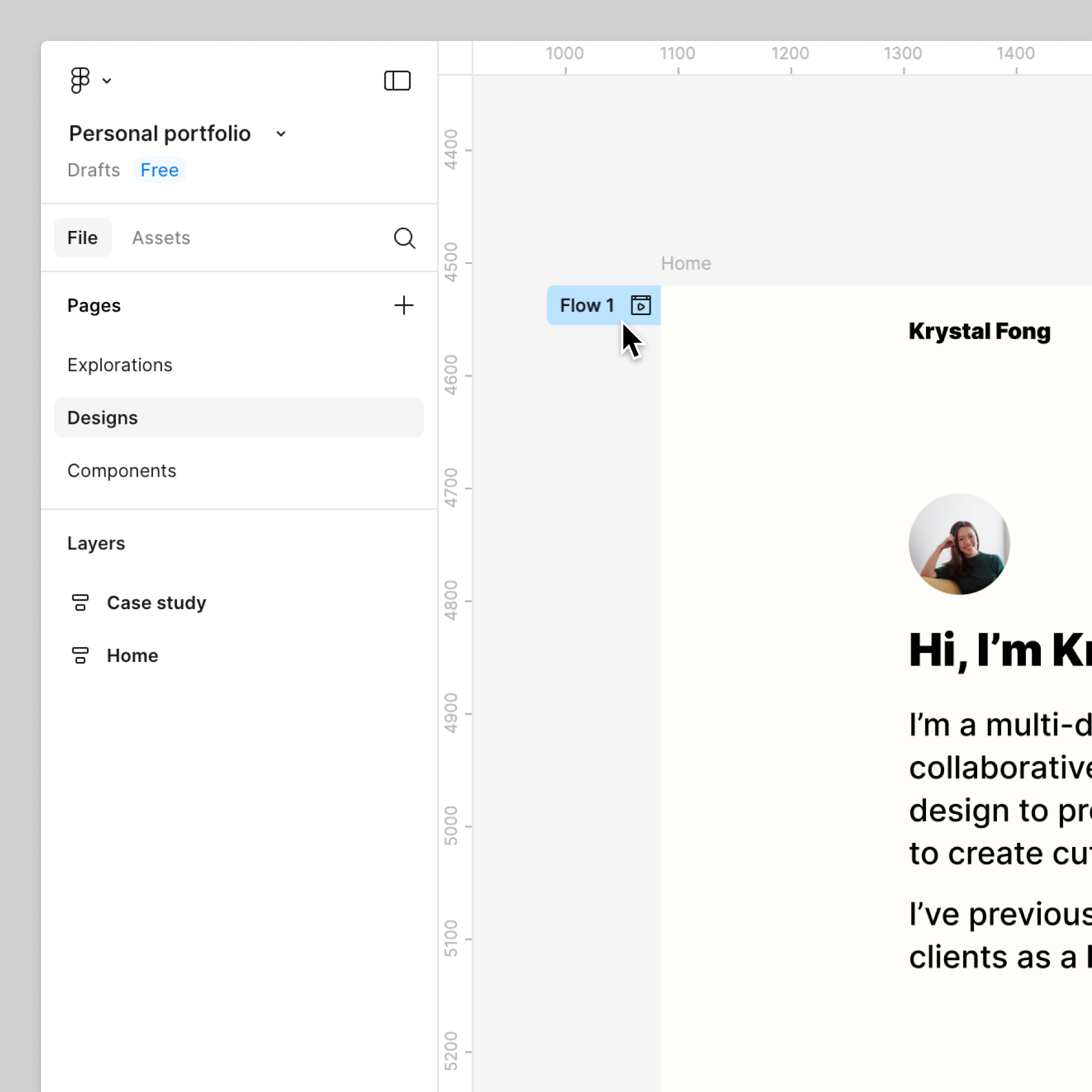

Figma also added a small blue label to our home page frame and named it Flow 1
. The label is attached to the top-level frame where our prototype flow starts.

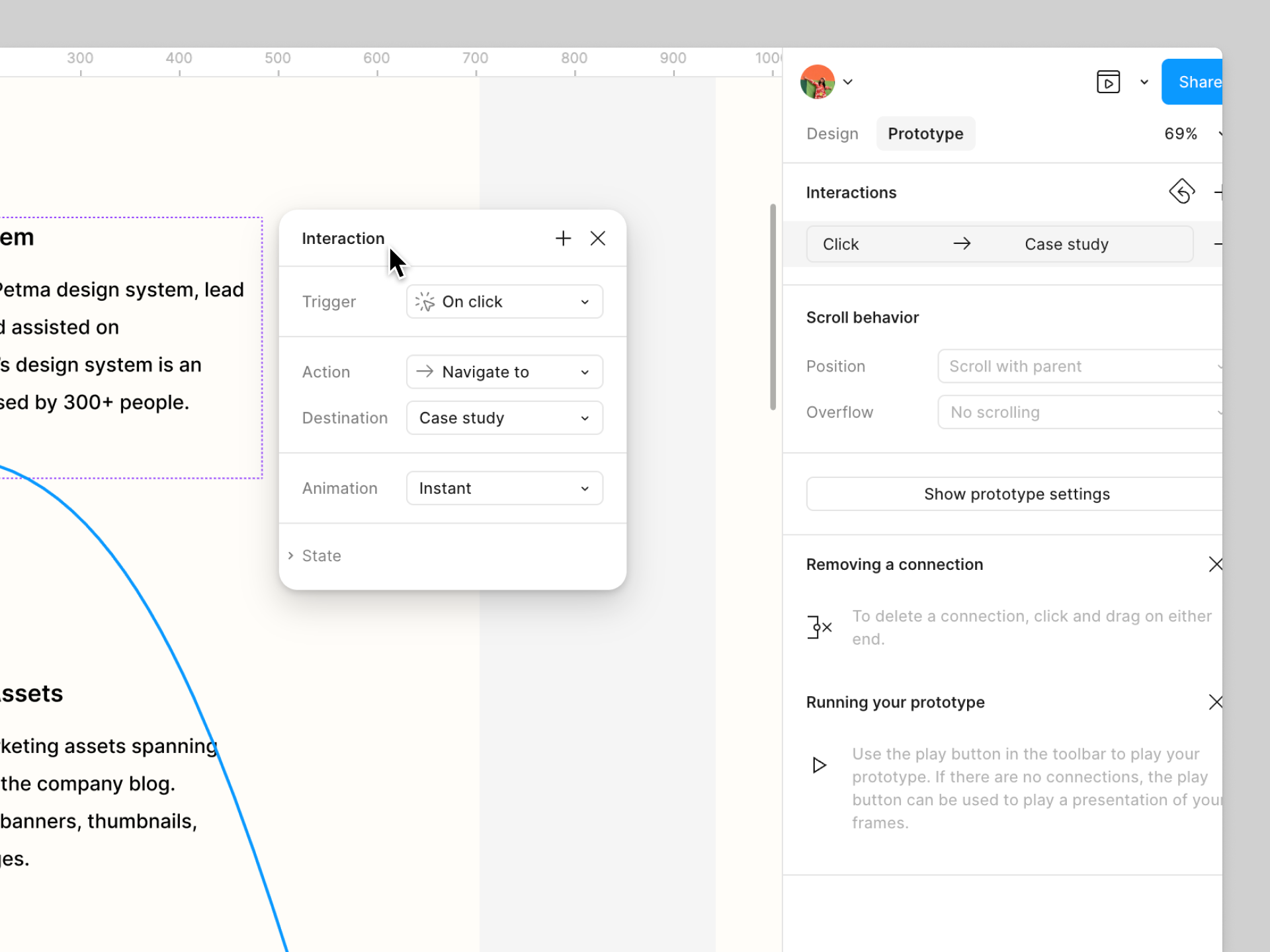

An Interaction menu also appeared. This is where we can make adjustments to the connection’s properties, like its trigger or animation.
Figma already set some of these properties. The Trigger is set to On click, the Action to Navigate to, and the destination to the Case study frame. This means that when a user clicks on the project card’s button, they’ll be taken to the case study page.
If you created a connection you no longer need, you can select it and press Delete to remove it. Or, click and drag the connection to an empty space on the canvas, and release it.
Connect the button in the navigation bar
You can also add interactions from the right sidebar. Let’s use that to connect the contact button in the navigation bar.
- Select the button in the navigation bar.
- Click the plus in the Interactions section
- Leave the trigger set to On click.

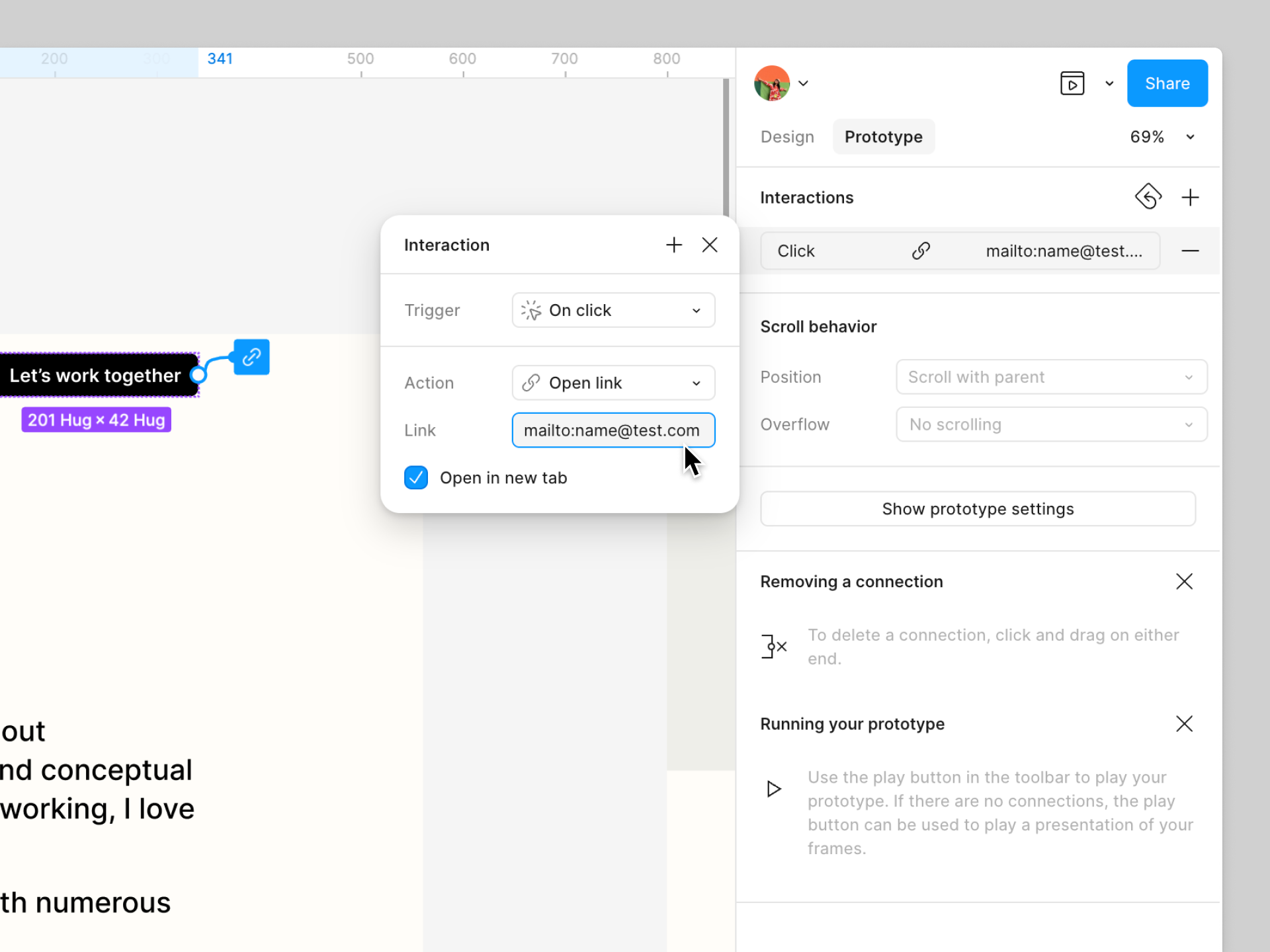

- Set the action to Open link. This will open a web browser to a URL.
- Enter any url—like
help.figma.com
which links to Figma’s Help Center or use the prefixmailto:
followed by an email address with no spaces, likemailto:name@test.com
—this will open the user’s mail app with that address already added to the To field.
Copy and paste prototype connections
This contact button actually exists on both of our pages, and we want both instances of the button to have the same behavior.
To save time, copy the connection to the main component.
- Select and copy the connection you just created using the shortcut:
- Mac: Command C
- Windows: Control C
- Go to the Components page and locate the Navigation component.
- Select the button inside the navigation bar and paste the connection:
- Mac: Command V
- Windows: Control V
With the interaction added to the main component, we won’t need to remember to add it again even if new pages are added to our portfolio.
About playing prototypes
Now that we've added a few connections, we can test them by previewing our prototype in the prototype viewer.

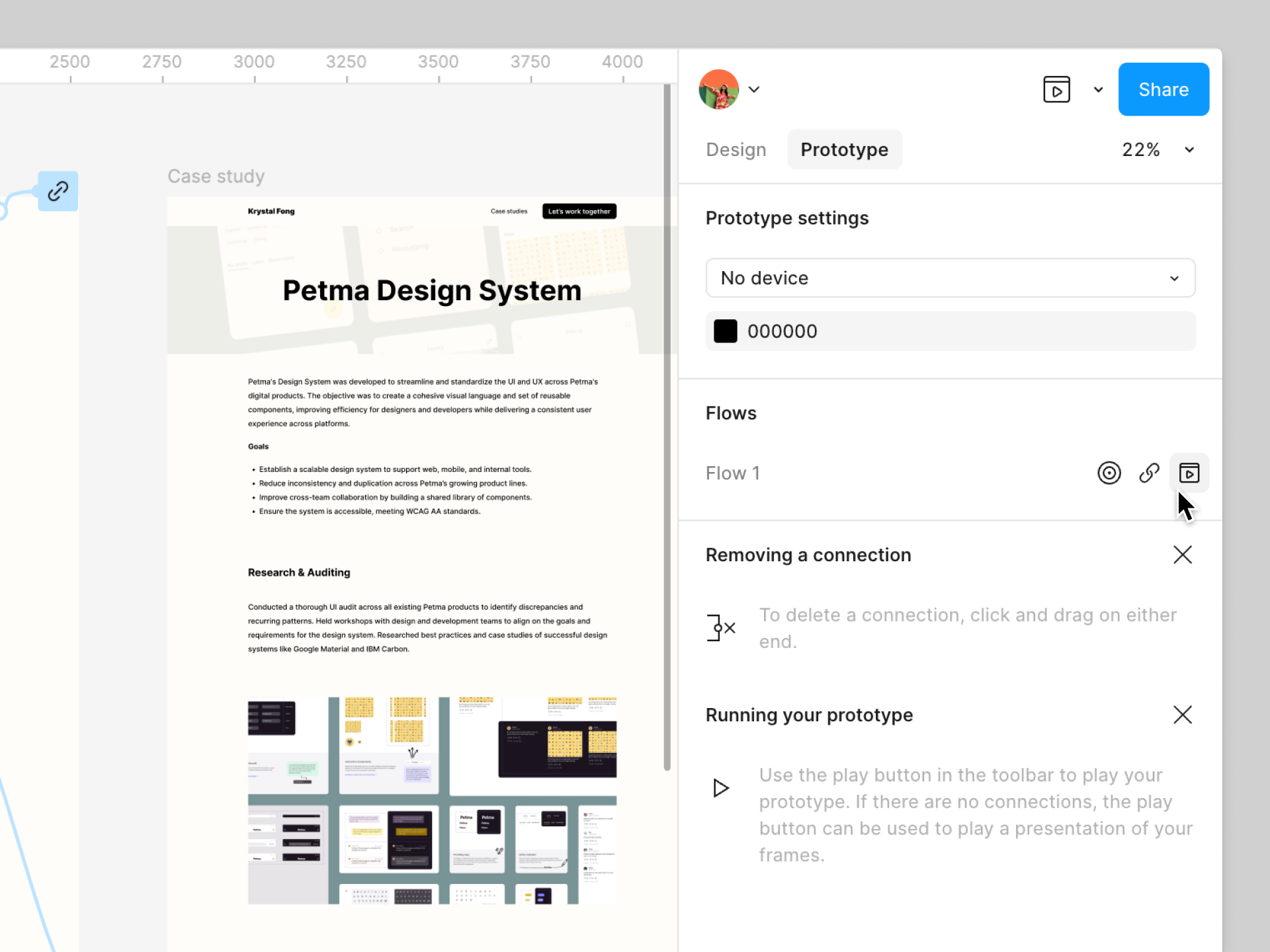

To play, or present, a flow, open the Prototype tab, and click the Preview icon next to the flow’s starting point. You can also find all flows on the page in the right sidebar when you have nothing selected.
For each flow, you can do a few different actions:
- Select Select frame to select the starting frame in the canvas. This will also allow you to view details in Interaction section of the sidebar
- Select Copy link to copy link to clipboard
- Select Preview to open the flow in inline preview—we'll select this option.
The inline viewer
When you select Preview, Figma will open the prototype in a floating window, called the inline preview. This window view is useful to check your prototype as you work. If you make a change to your design on the canvas, Figma will update the preview automatically.
At the top of the window, you can:
- Use the left and right arrows to navigate back or forward through the prototype.
- Restart the prototype from the last selected frame on the canvas. You can also press R to restart.
- Open the overflow menu to choose from different scaling options for your prototype.
- Open the prototype in presentation view in a new tab.
- Click the X to close the inline preview.
- Resize the preview by clicking and dragging the edge of the preview window. Hold ⇧ Shift to scale it proportionally.
Learn more about playing prototypes.
Presentation view

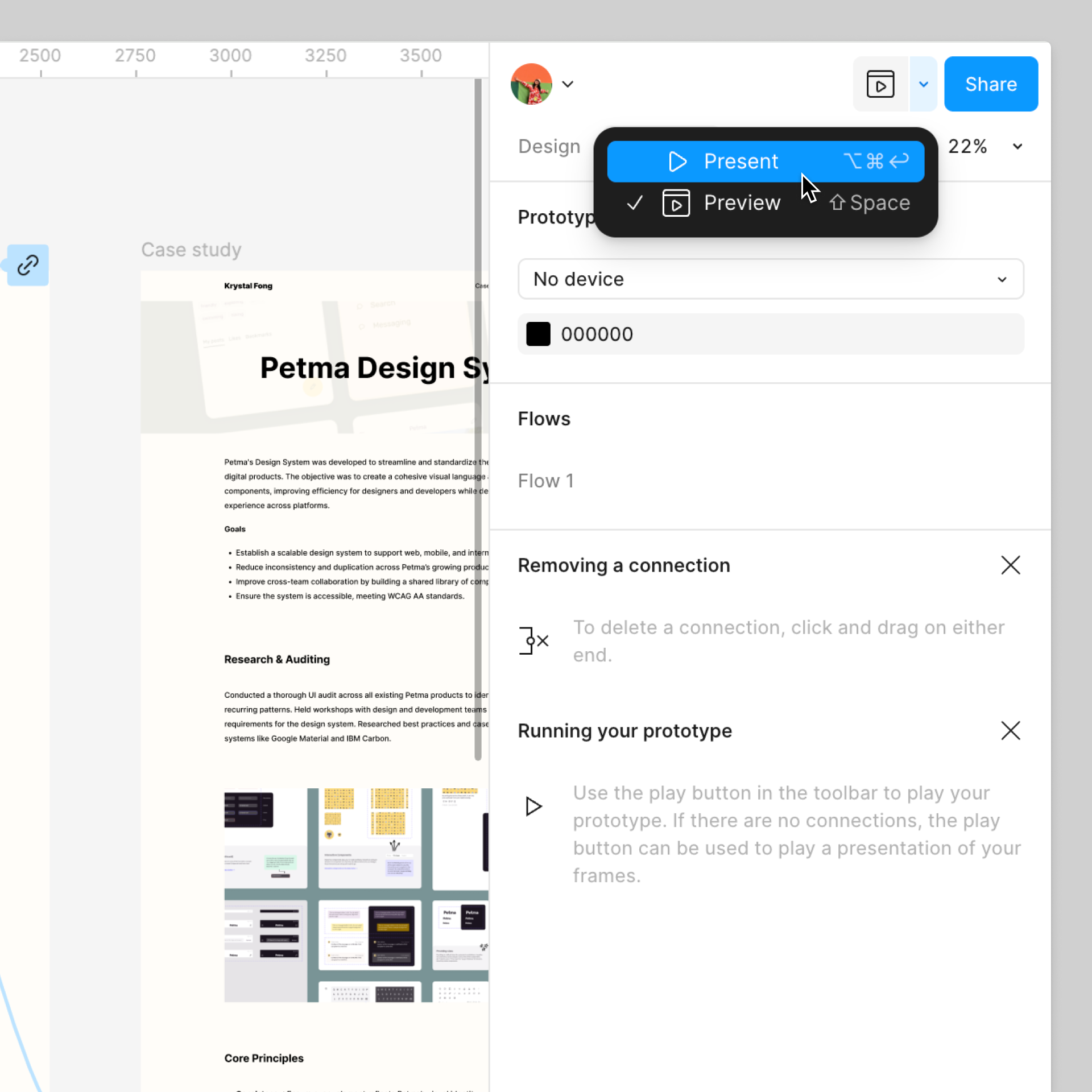

Presentation view is a more immersive experience as it uses your own device screen or monitor to display the prototype, just like a real site. You can also access presentation view by clicking Present in the right sidebar.
If you want to view it on a device frame like a phone or tablet instead, choose a device frame from the right sidebar while you have nothing selected. Learn more about prototype devices or how to preview a prototype on your own device.

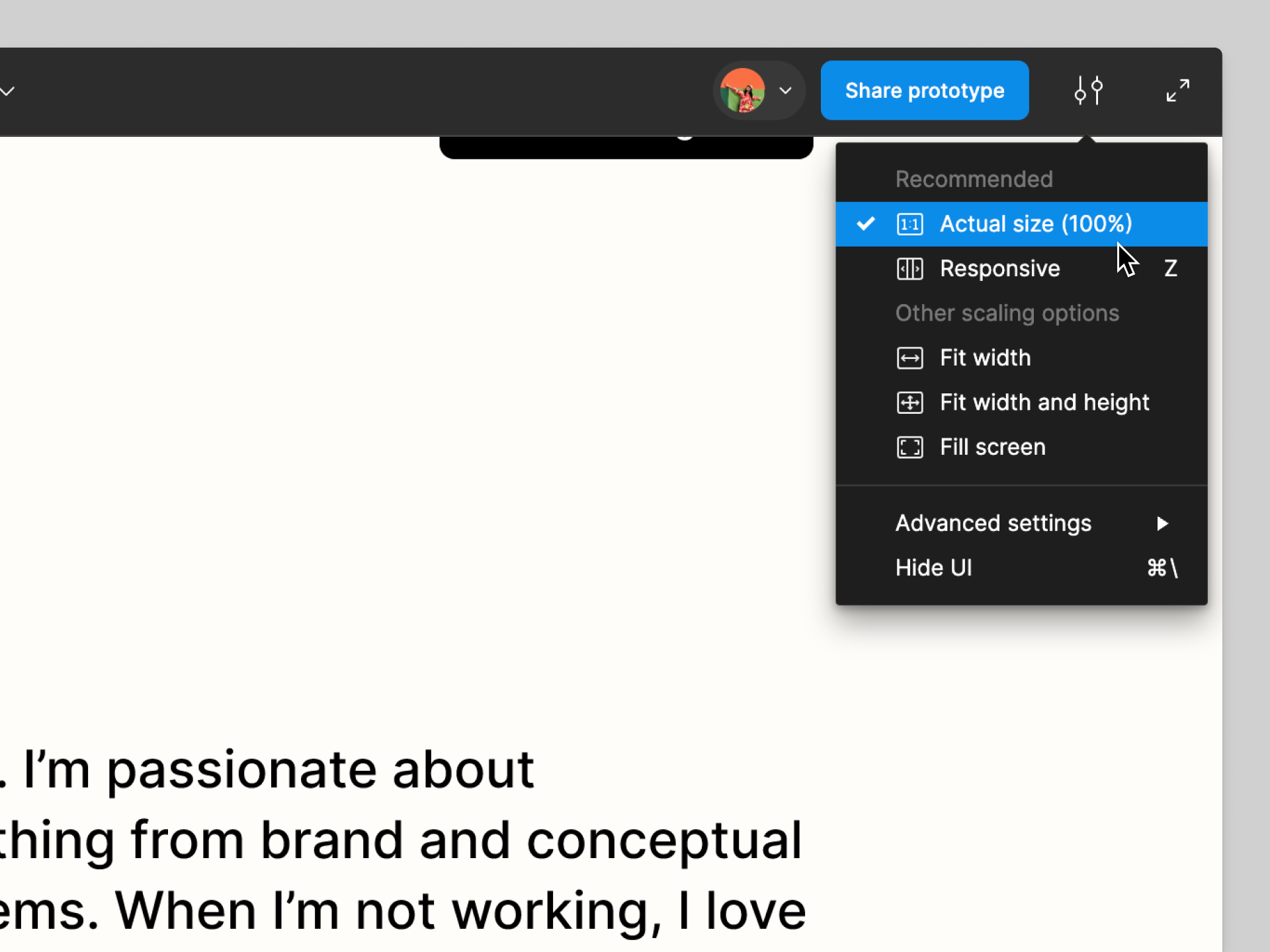

And if you ever want to change how your prototype fills the screen, you can press Z to cycle through different viewing options. Fill screen is handy when you’re designing for a resolution that isn’t the same as the device you’re using. Learn more about scaling options.
Preview your prototype to test the interactions
Now that we've learned about previewing our prototypes in the Figma's prototype viewers, let's test our connections we made earlier:
- Click Preview to view to open the prototype in the inline viewer.
- Scroll using the trackpad or mouse wheel to scroll to the project card.
- Click the button you added the interaction to. The prototype will navigate to the Case study page, just like we configured it to.
- Click the contact button in the header to open the
mailto:
link. - Check the box if you see a warning page. The first time you open an external link, Figma will alert you that you’re about to navigate to another website. You can disable future notices to make the experience more immersive.
Our prototype connections are working just like we set them up. Perfect! In the next lesson, we'll learn how to change various scrolling behaviors, like setting layers to stay in a fixed position as we scroll down the page.
