Stroke is a collection of properties you can apply to a vector object. You can think of Stroke as a visual representation of a vector path.
Apply stroke properties to any vector object to:
- Create lines and arrows
- Create outlines around shapes, vector networks, or boolean operations
- Add borders to frames and images
You can then control how the stroke looks with color, weight, distribution, and end point properties.
Note: When you select an object, we will apply these Stroke properties to the entire object. Use vector edit mode to change the stroke properties for specific vector points.
Access these properties in the Stroke section of the properties panel.
- Color: Adjust the paint and set an opacity for the current stroke using the color picker. Or, adjust stroke colors in a mixed selection.
- Styles: Apply a color Style to the current selection. Or, create a new color Style from the selection.
- Add: Add a new stroke to the current selection. You can add multiple strokes
- Weight: Choose the weight of the stroke, in pixels. Enter a value in the field provided, or scroll through values using your mouse/trackpad while the field is in focus.
- Distribution: Define where on the path you want to apply the stroke. Choose from Inside, Outside, and Center.
- Visibility: Toggle the visibility of each stroke.
- Delete stroke: Remove the stroke from the selected layer.
- Advanced Stroke menu: Open the Advanced Stroke menu to access extra settings (see below).

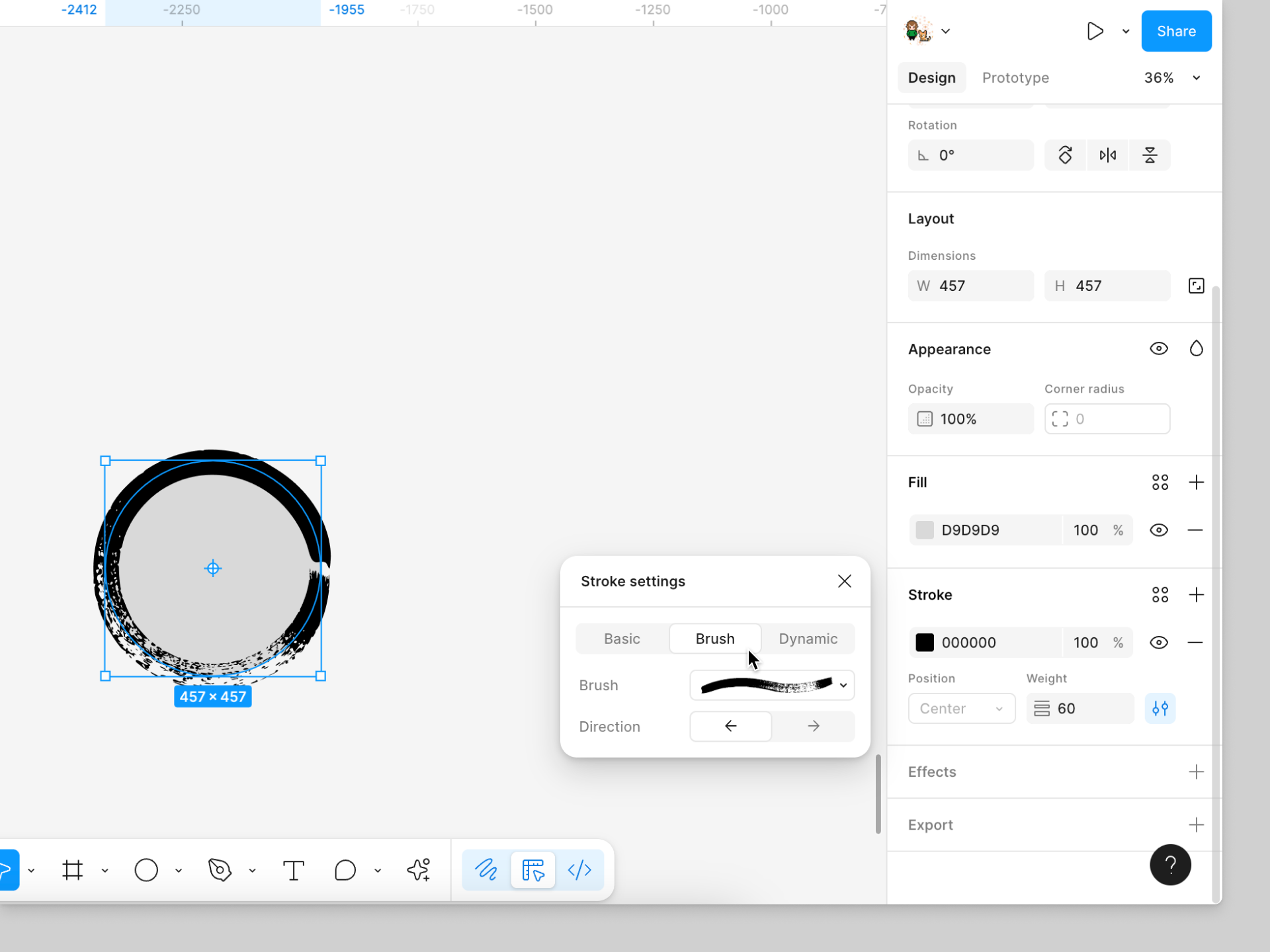

Advanced Stroke menu
The Advanced Stroke menu lets you access extra settings.
Caps: Add styling to the end point of any open paths. Choose from:
- None (default): Adds no cap to the end(s) of the path. The end of the path are squared off, without adding any length to the path.
- Round: Adds a cap half the stroke weight, as well as rounding the end point of the path to 50% the width.
- Square: Adds a cap half the stroke weight, while squaring the end point of the path.
- Line Arrow: Adds two 45-degree lines to either side of the end point(s). This uses the same stroke weight as the path itself.
- Triangle Arrow: Add a triangle arrowhead to both end points. You'll need to enter vector edit mode to apply an arrow to only one end of the path.
Dashes: Creates dashed or dotted lines. Enter the dash length, a comma, then the distance between dashes. For example:
Note: Figma starts and ends every dashed line with a half-length dash. You can use Outline Stroke to convert the stroke to a vector object. This will allow you to remove or extend the half-dash.
Join: Define how lines join within a path or vector network. Adjust the joins in an entire path, or enter vector edit mode to select a single anchor point in the path. Choose from:
- Miter: Create a sharp point, like an arrow, where the two paths meet.
- Bevel: Cut off the sharp point to create a flat edge.
- Rounded: Round the point where two paths meet to soften to join.
Miter Angle: Control the angle at which two joined lines will bevel. For example: for a miter of 90, any angle ≤ 90 degrees will bevel, anything > 90 above will be sharp.
Export strokes to SVG
In Figma, you can apply Inside, Center or Outside stroke. SVG as a format only supports Center stroke.
If you use an Inside or Outside stroke and export to SVG, Figma will simplify the stroke. This converts the Inside or Outside stroke to a Center stroke, this won't affect how the exported object looks.
Learn more about simplify stroke in our Export settings article.
Styles and strokes
At the moment, there isn't a way to save a stroke's non-color properties, like weight and distribution, as a Style. However, you can apply color Styles to any stroke.
When apply a Style to a stroke, you will still be able to adjust the other properties. This includes the weight and distribution, as well as any advanced stroke properties like caps, join, and dashes.
Apply a color style to a stroke
- Select the stroke you want to apply the Style to.
- In the Stroke section of the right-hand panel, click the Style icon
- Select the Style using the style picker.
- Adjust any of the other properties of the stroke, as desired.
Scale and resize strokes
Strokes respond differently based on how you resize them.
- Resize the object if you want to retain a Stroke's weight, while adjusting the object's dimensions. Click on the stroke's bounding box and drag to resize.
- Use the Scale tool to scale the Stroke properties along with the object's dimensions. Learn more about using the scale tool.
Convert strokes to vector objects

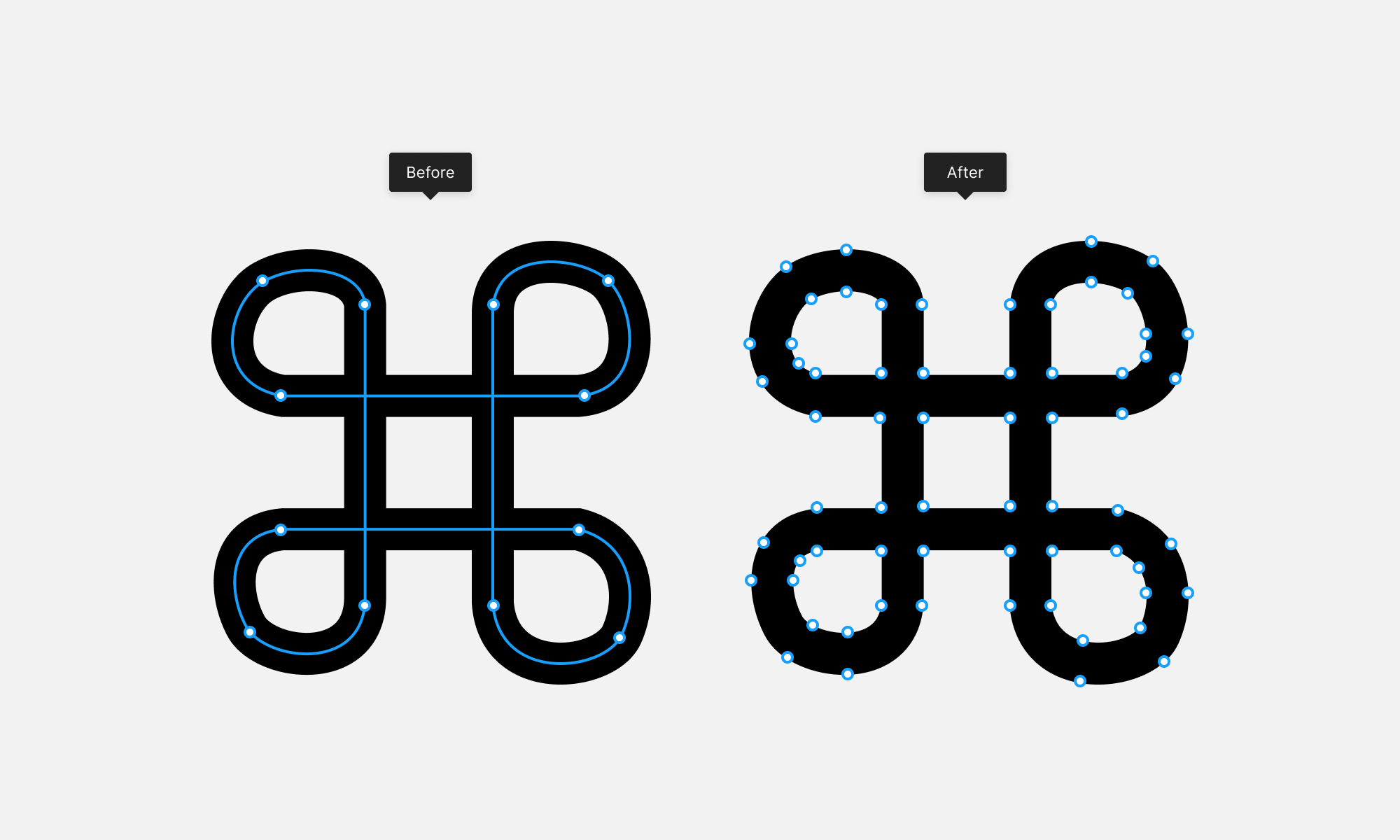

The Outline Stroke feature allows you to convert strokes into vector objects. This will take each path in the object and turn it into a single editable shape.
This will allow you to:
- Remove or extend half-dashes
- Create custom shapes and edit them in vector edit mode
- Combine multiple paths into a single object
- Scale vector objects uniformly
Note: It's not possible to convert a vector object back into a stroke, unless you undo the action. Use the keyboard shortcuts to undo:
- macOS: Command Z
- Windows: Ctrl Z
- Access the Outline Stroke feature in a few ways:
- Right-click on the layer and select Outline Stroke
- Go to the ☰ menu and select Vector > Outline Stroke
- Use the keyboard shortcut:
- Figma will convert the path into a vector object and apply any paints you had as a stroke as a fill.
- You can see how that vector object looks in vector edit mode. Press Enter / Return, or click Edit object in the toolbar to edit the vector object.
Tip! If you have a Style applied to the stroke, Figma will also take the color properties of the Style and apply this to the object as a fill.
