Create an illustration using the arc tool, stroke width profiles, and effects

In this project, we’re cooking up a stylish illustration featuring some noodles and chopsticks. We’ll start by creating the bowl using the arc tool, then dive into vector edit mode to create some wavy noodles. Next, we’ll explore stroke width profiles to build the chopsticks and wrap things up by applying effects to give the illustration some texture and depth. Ready to dig in? Let’s go!

Open Figma Draw

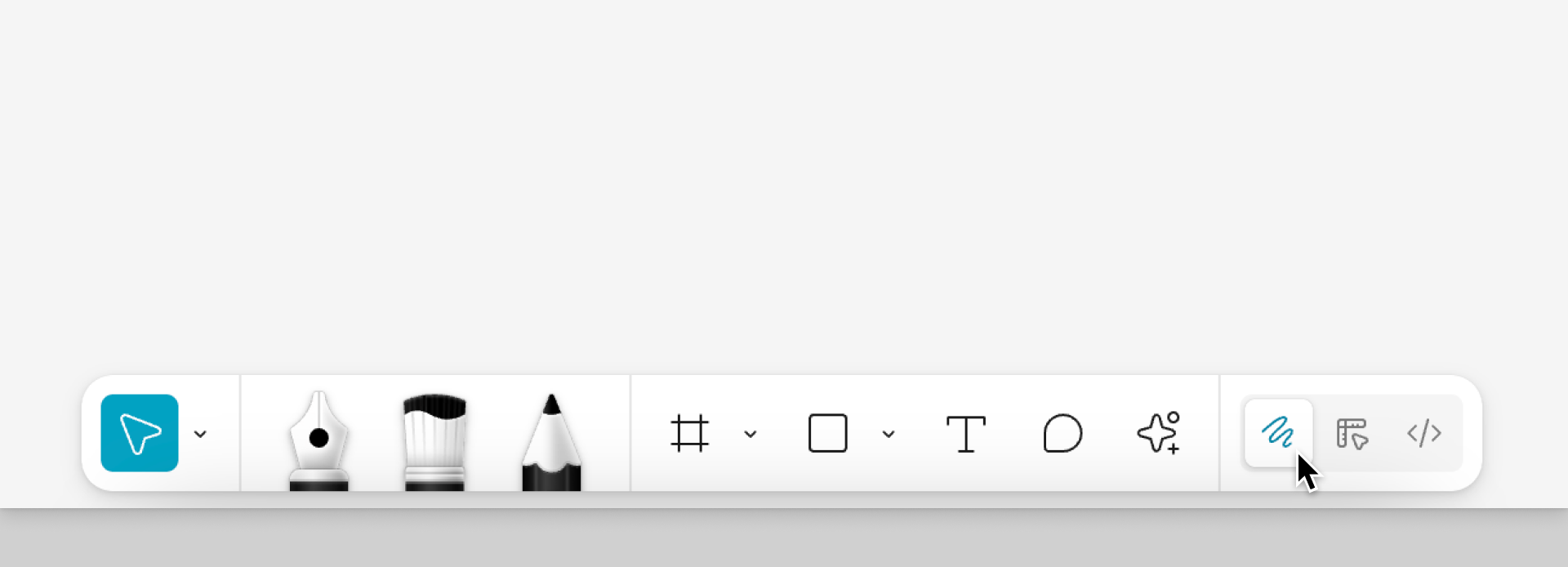

We’ll be using Figma Draw to create this illustration. Figma Draw is a set of visual design tools within the Figma Design editor. You can open Figma Draw in any Figma Design file you have can edit access to. To switch to Figma Draw, select Draw in the toolbar. Learn more about Figma Draw.

Create the bowl

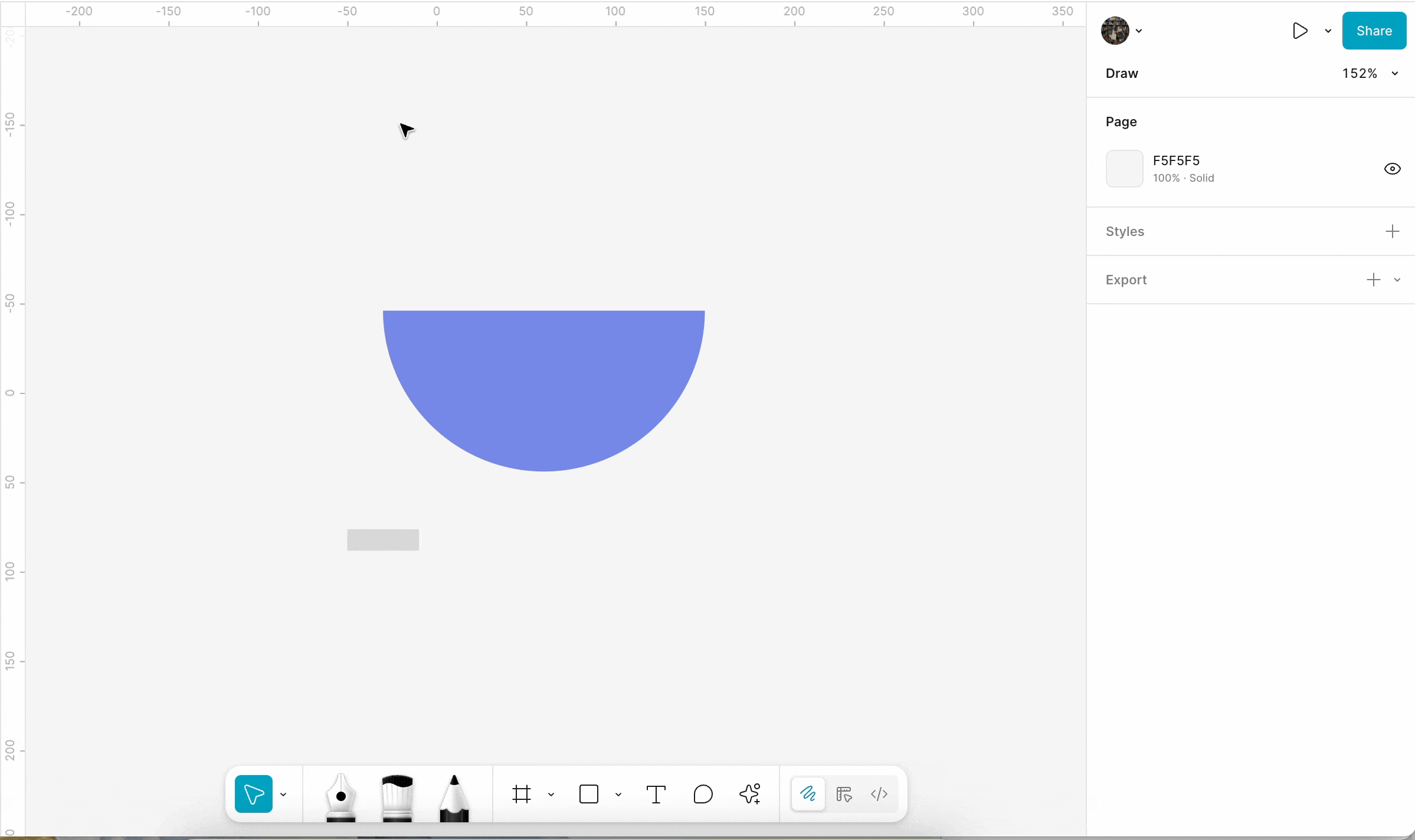

We’ll start by using the arc tool to create the bowl shape:

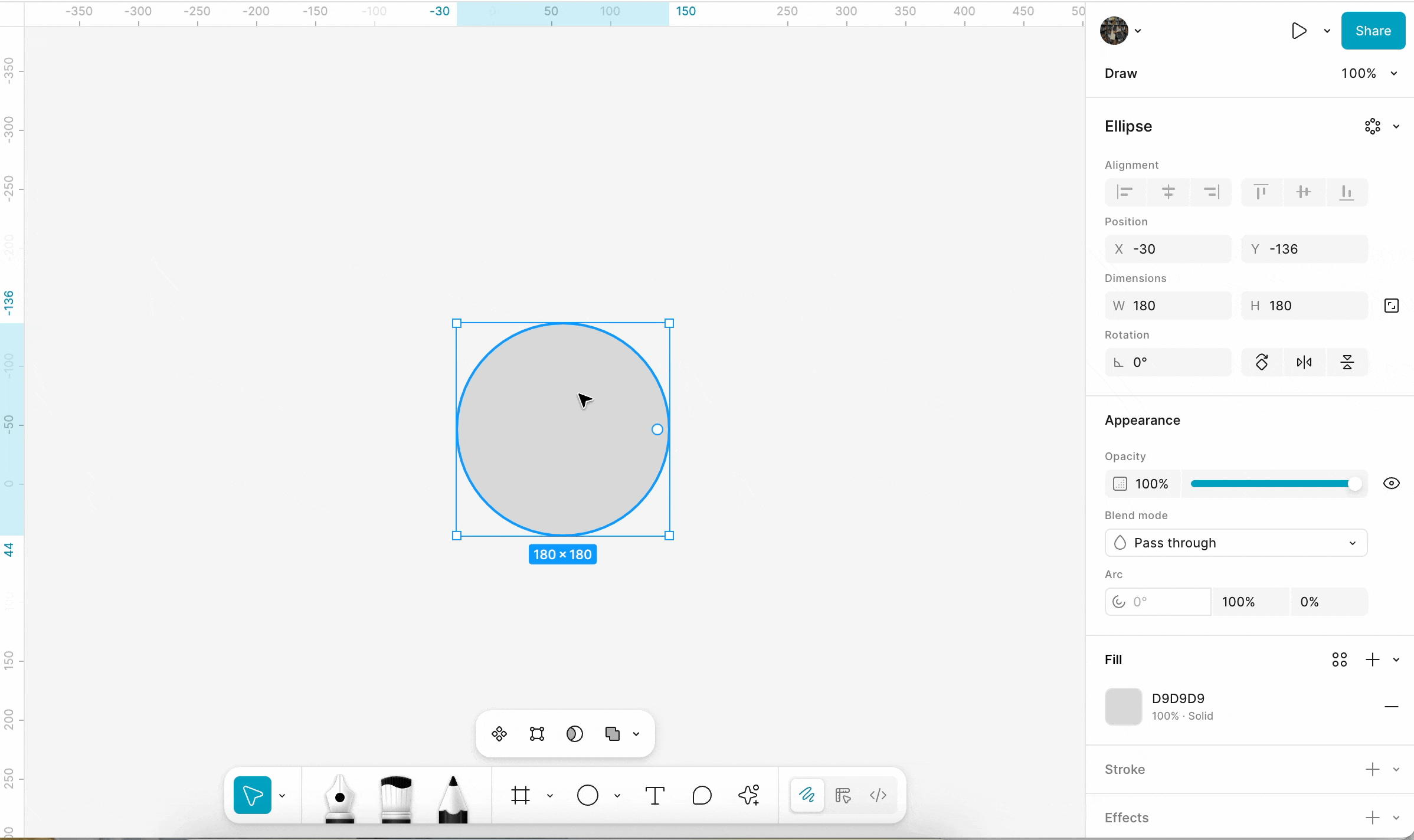

1. Use the Ellipse tool to add a 180 X 180 ellipse to the canvas.
2. Select the ellipse and hover your cursor over it until you see the arc handle appear.
3. Use the arc handle to change the sweep of the ellipse to 50%.
4. Change the fill to any color you like. We’re using #778859.

Next, we’ll build the base of the bowl:

1. Use the Rectangle tool to add a 40 X 12 rectangle to the canvas.
2. Position the rectangle at the bottom of the ellipse, then select both layers and click Align horizontal centers.
3. Right-click on the rectangle and select Send to back or press [ on your keyboard.

Apply an inner shadow effect

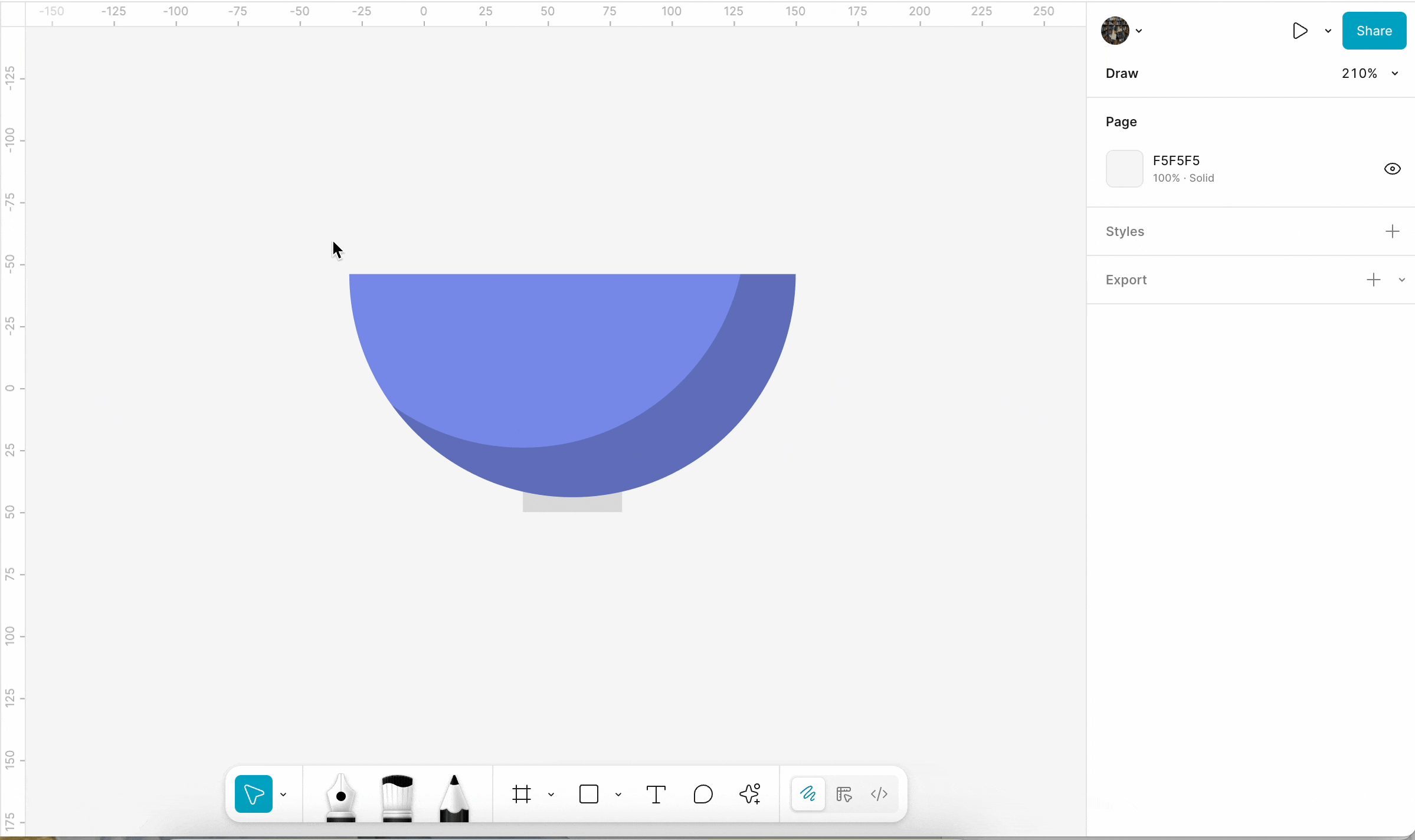

Next, we’ll use an inner shadow effect to give the bowl some depth:

1. Select the ellipse layer.
2. Click the plus in the Effects section and choose Inner shadow from the dropdown menu.
3. Use the effect settings to configure the inner shadow:
   • X position: -20
   • Y position: -20
   • Blur: 0
   • Spread: 0
   • Color: #000000
   • Opacity: 20%
4. Select the rectangle and press I to open the Eyedropper tool, then click on the drop shadow to change the fill to the same color.

Round the corners

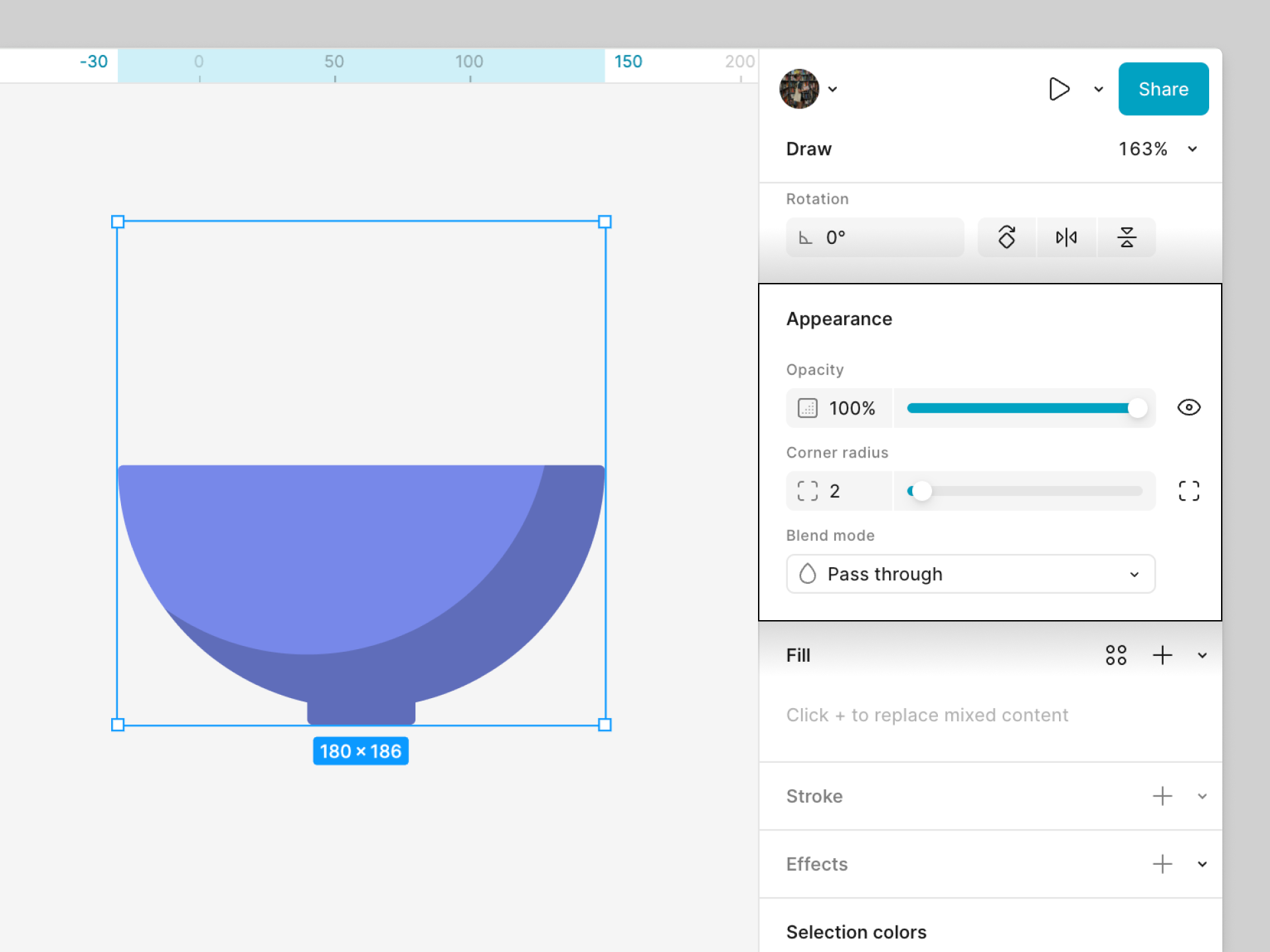

Next, we’ll round the corners to give the bowl a smoother appearance.

1. Select both layers and group them using the keyboard shortcut:
   • Mac: Command G
   • Windows: Control G
2. Rename the group to Bowl.
3. Change the Corner radius to 2.

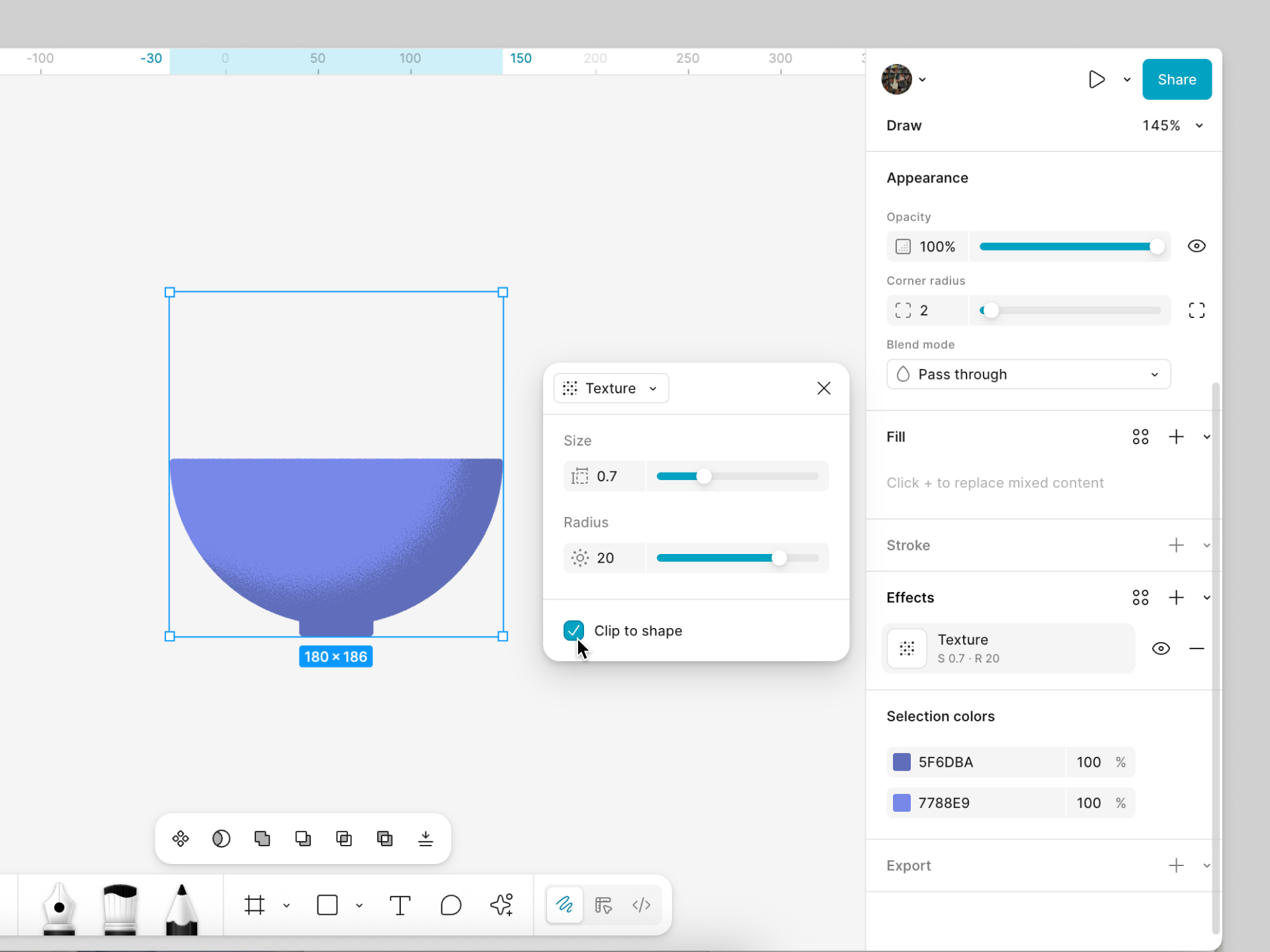

Apply a texture effect

We’ll add one more effect to complete the bowl:

1. Select the Bowl layer.
2. Click the plus in the Effects section and choose Texture from the dropdown menu.
3. Use the effect settings to configure the effect:
   • Size: 0.7
   • Radius: 20
   • Clip to shape: Enabled

Create the noodles

Let’s set the bowl aside and create the noodles next.

Build the noodle shape

To create our noodles, we’ll flatten a selection of basic ellipses, then use vector edit mode to modify the new shape’s vector path:

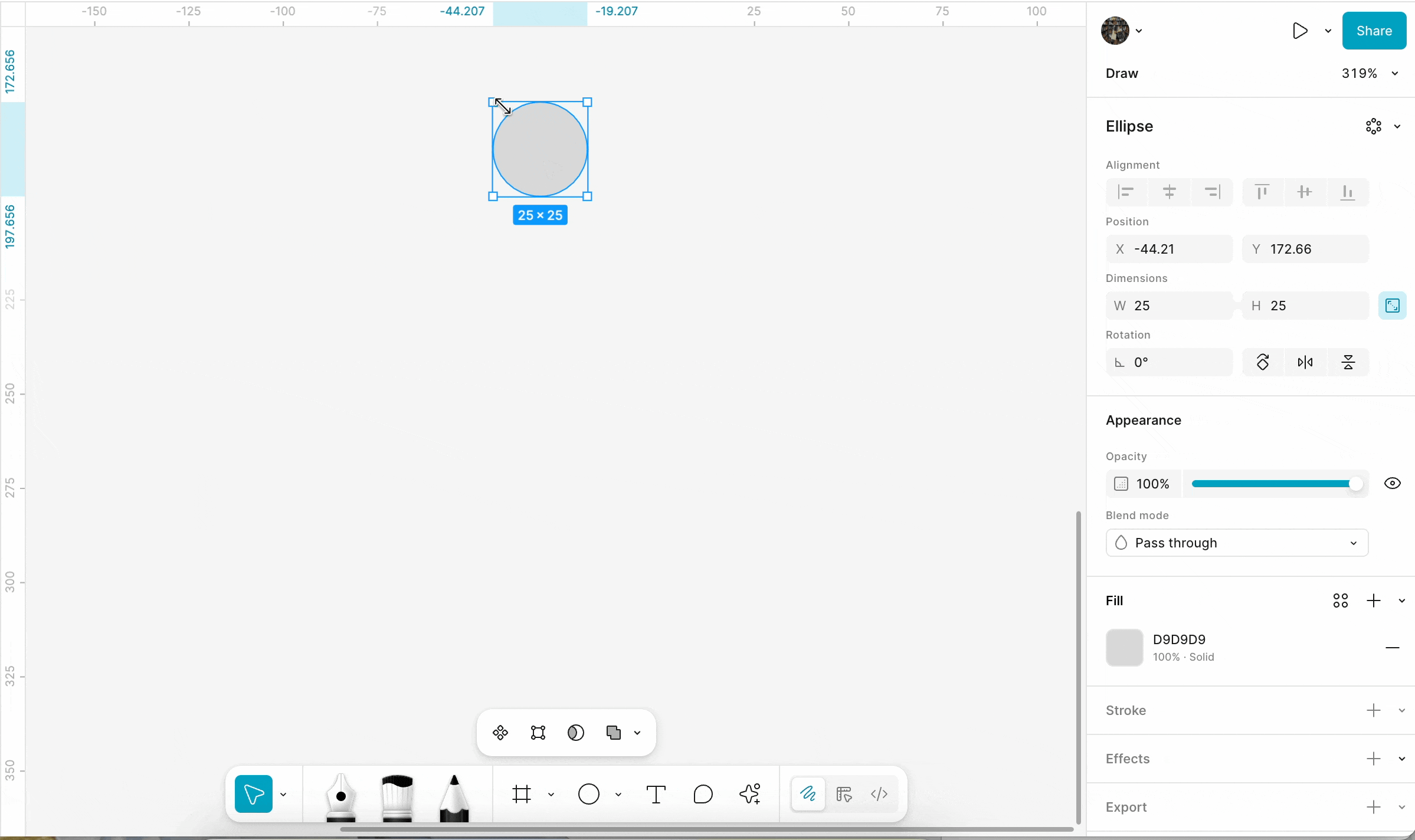

1. Use the Ellipse tool to add a 25 X 25 ellipse to the canvas.
2. Select the ellipse and duplicate it using the keyboard shortcut:
   • Mac: Command D
   • Windows: Control D
3. Drag the second ellipse below the first so that their edges touch but don’t overlap.
4. Duplicate the ellipse four more times for a total of six ellipses. When you immediately use the duplicate shortcut on a duplicated object, Figma maintains the same distance between each object.

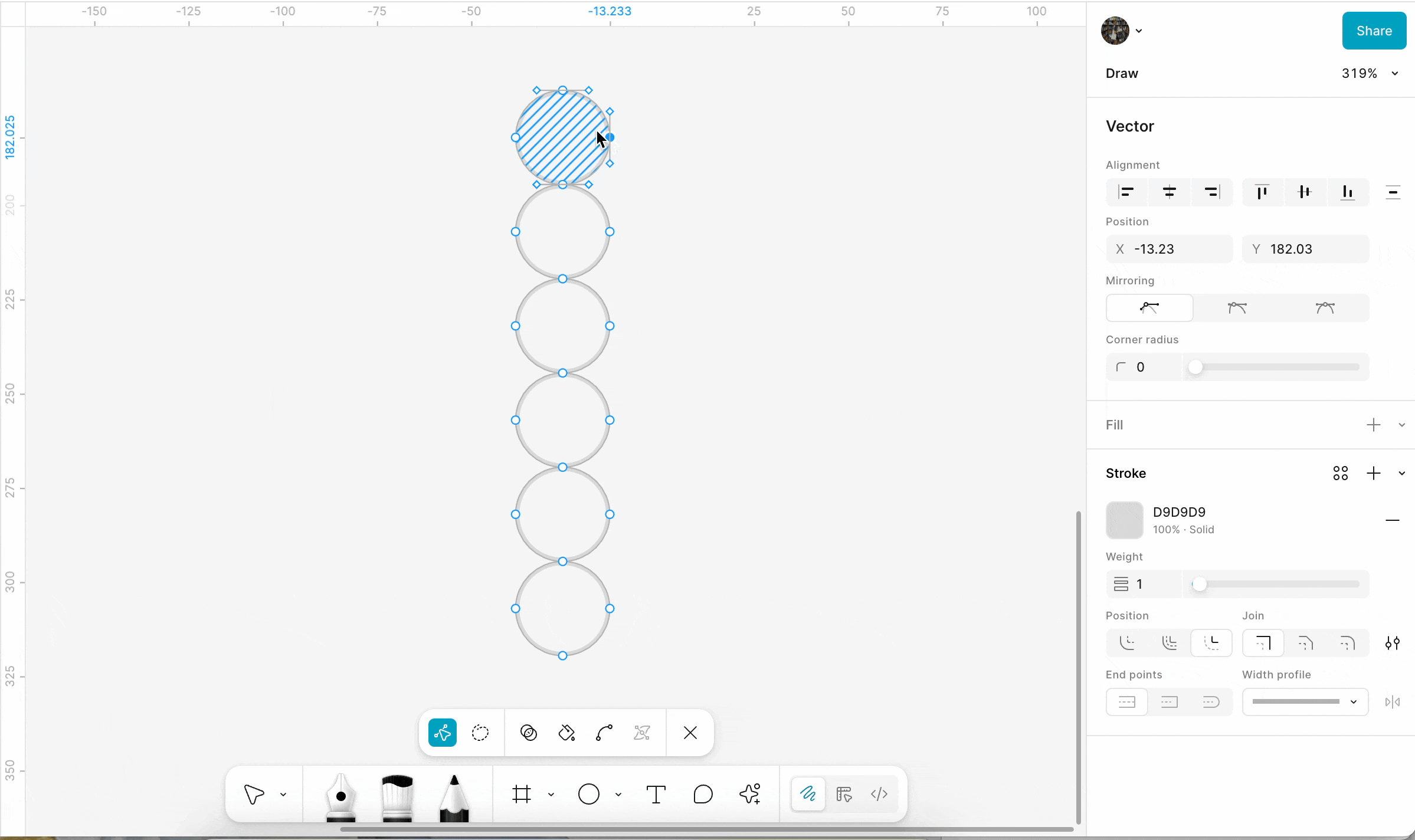

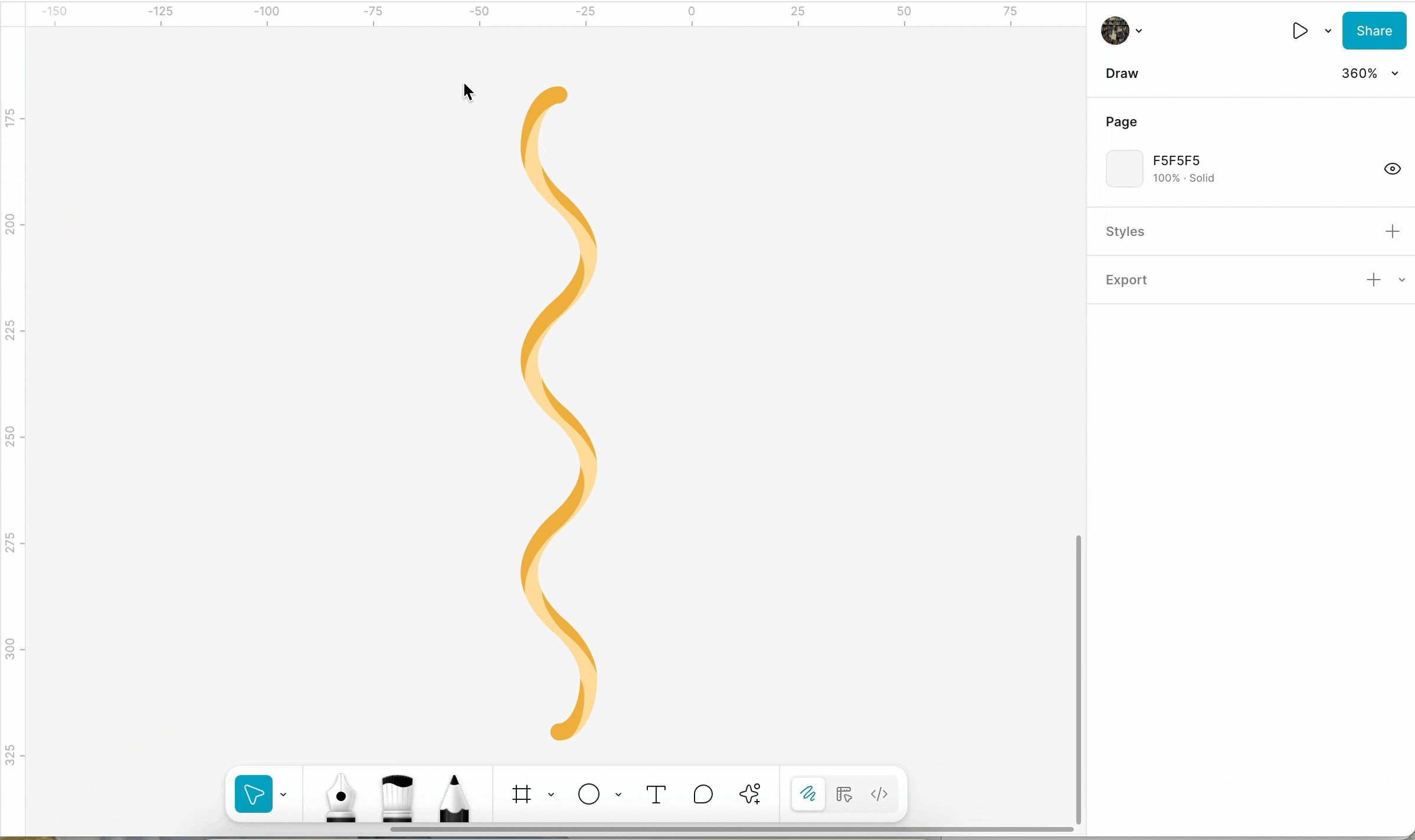

Now we’ll flatten the ellipses into a single vector layer and use vector edit mode to modify the vector’s path:

1. Select all of the ellipses and press Shift X to invert their fill and stroke.
2. Select Flatten from the secondary toolbar or use the keyboard shortcut:
   • Mac: Option Shift F
   • Windows: Alt Shift F
3. The ellipses are now merged into a single layer called Vector. Rename the layer to Noodle.
4. Select the Noodle layer and press Enter to open vector edit mode.

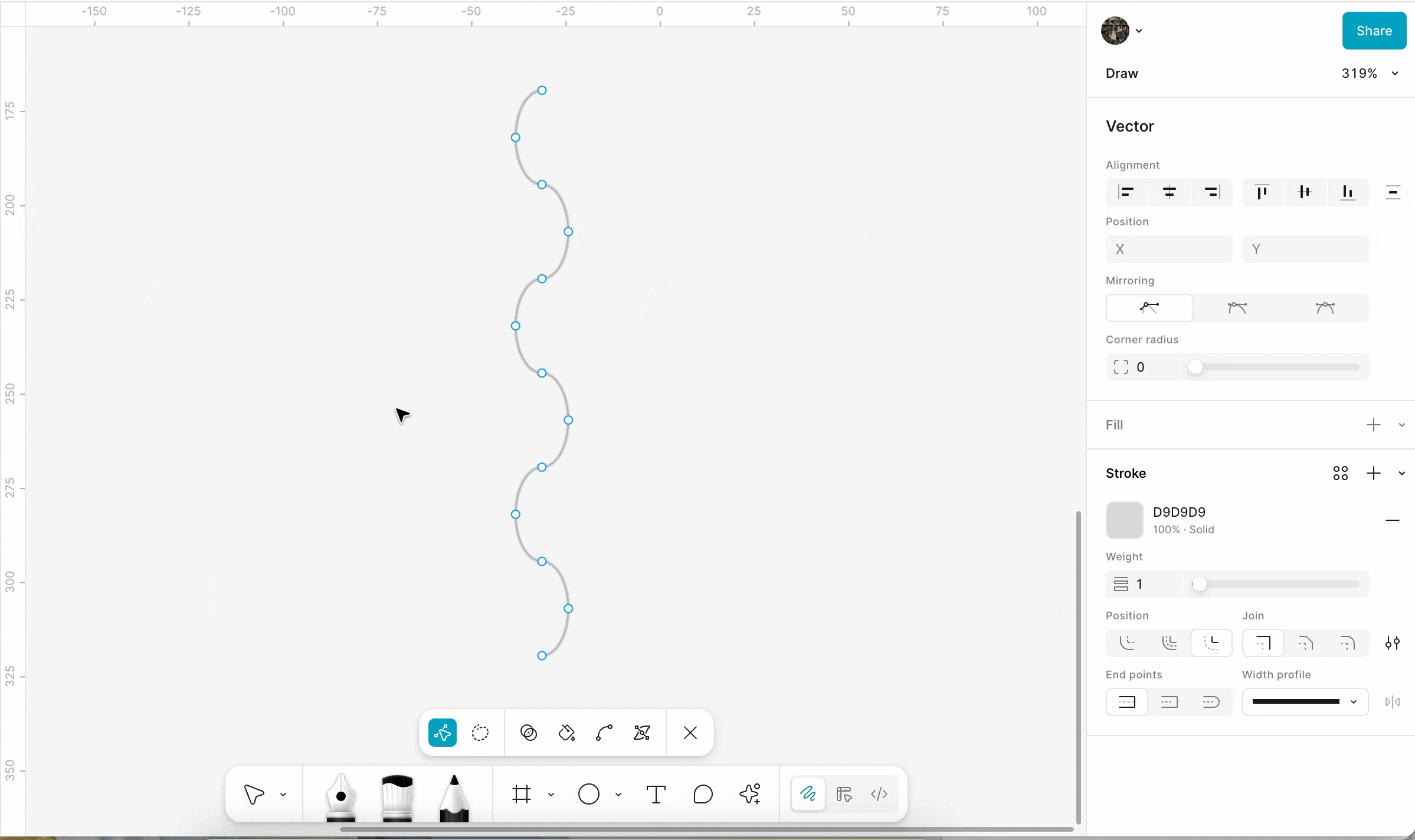

5. Starting with the top ellipse, delete the right vector point. Work your way down, alternating between deleting the left and right vector points to create a wavy shape.
6. Press Enter to exit vector edit mode.

Next, we’ll modify the stroke to make it look a bit more noodle-like:

1. Change the layer’s Width to 14.
2. Press Enter to open vector edit mode again.
3. Select the Bend tool from the secondary toolbar, then click on each of the center points to create a smoother connection between each ellipse.
4. Press Enter to close vector edit mode.

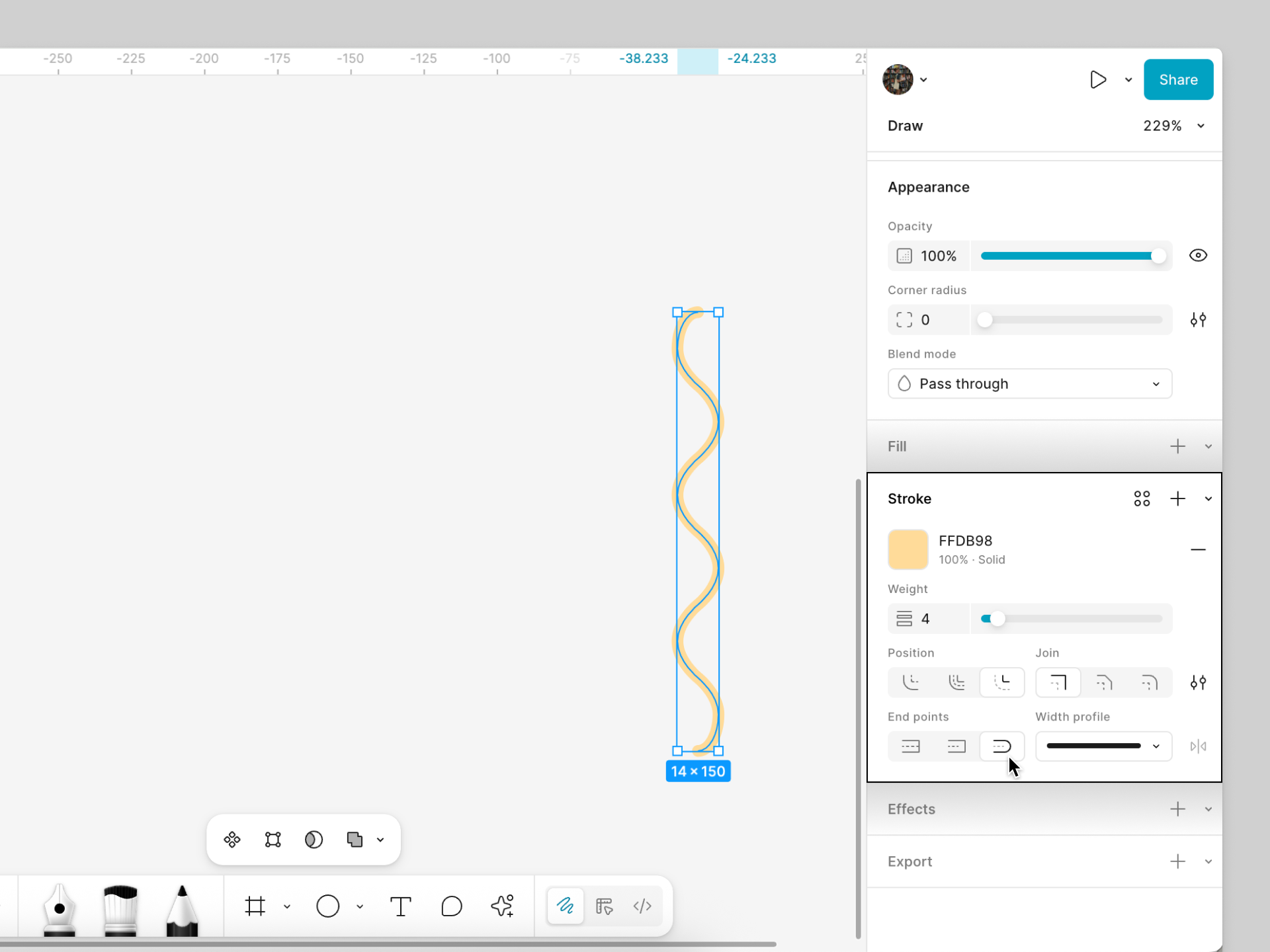

Use the Stroke section in the right sidebar to modify the stroke’s properties:

1. Change the stroke Weight to 4.
2. Select End cap round from the End points options.
3. Change the stroke fill to #FFDB98.

Apply an inner shadow effect

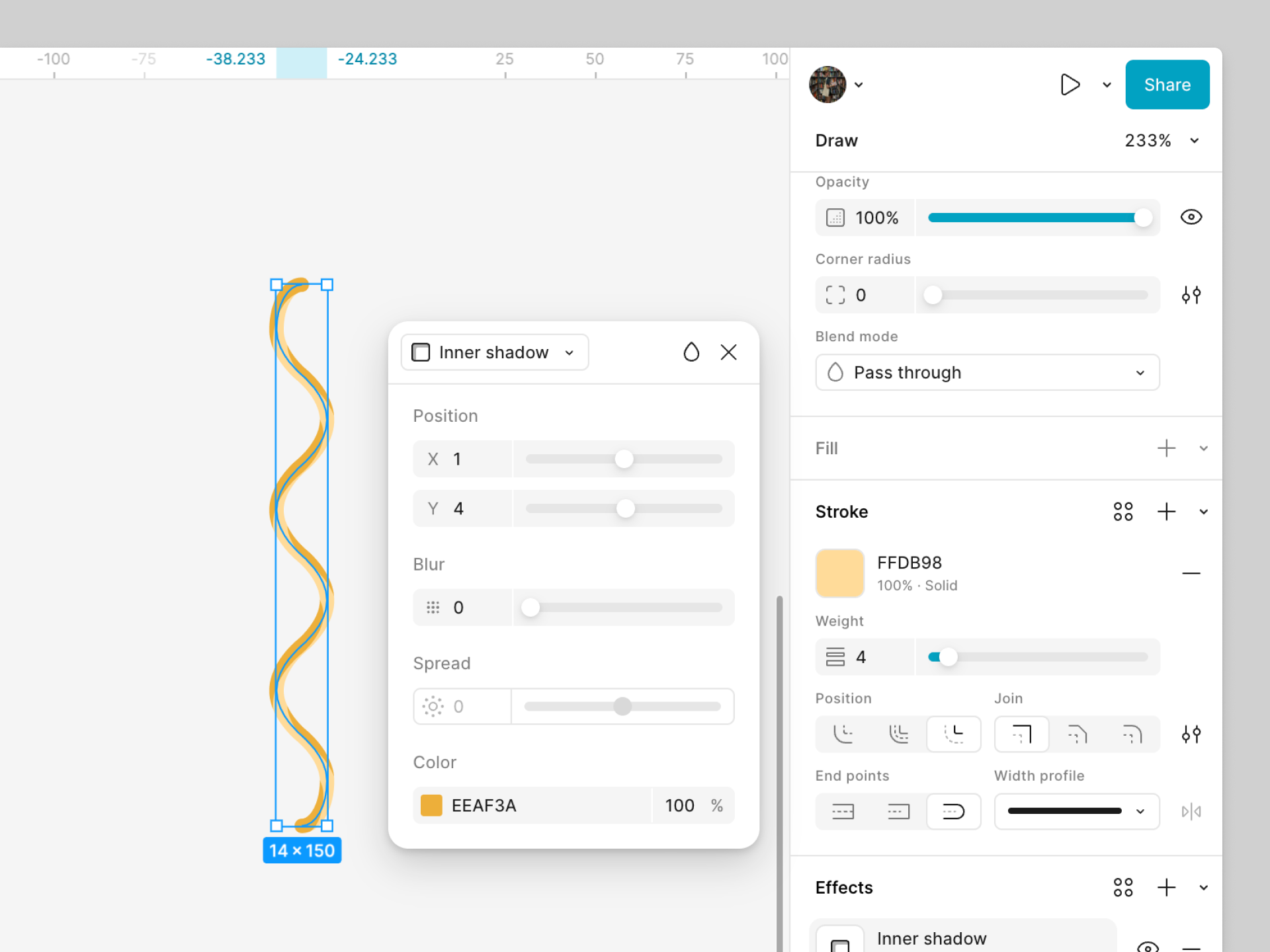

Next, we’ll apply an inner shadow effect to highlight our noodle’s curves:

1. Select the Noodle layer.
2. Click the plus in the Effects section and choose Inner shadow from the dropdown menu.
3. Use the effect settings to configure the inner shadow:
   • X position: 1
   • Y position: -2
   • Blur: 0
   • Spread: 0
   • Color: #EEAF3A
   • Opacity: 100%

Duplicate the noodle

The noodle is looking great! Next, we’ll copy the noodle using the duplication shortcut we learned earlier and use the new layer to help give the illustration a 3D look:

1. Select the noodle and duplicate it using the keyboard shortcut:
   • Mac: Command D
   • Windows: Control D
2. Change the duplicated layer’s Weight to 2.
3. Change the fill to #EEAF3A.
4. Position the duplicated layer against the right edge of the original layer.
5. Select both layers and group them using the keyboard shortcut:
   • Mac: Command G
   • Windows: Control G

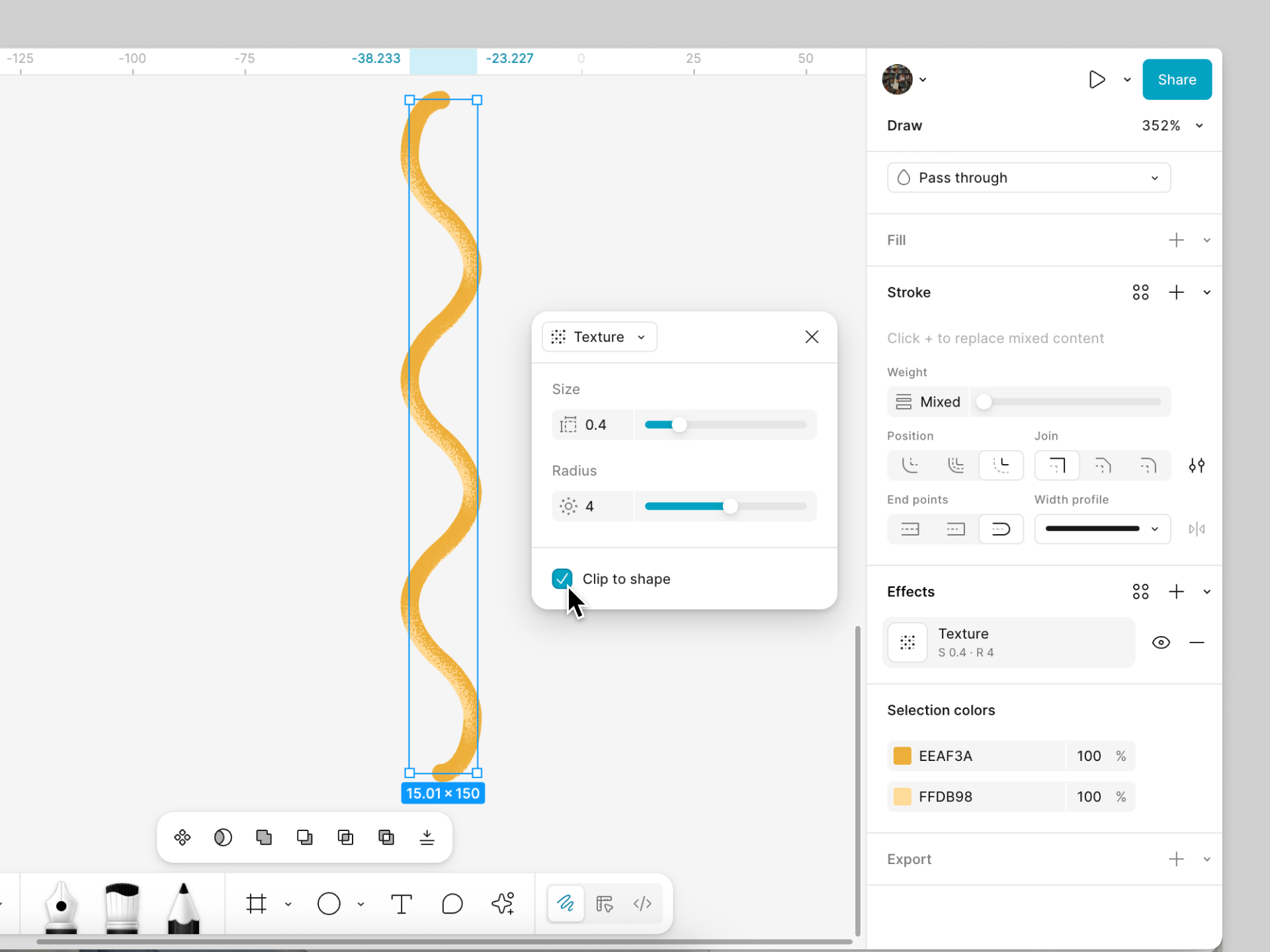

Apply a texture effect

We’ll use a texture effect to blend the noodle’s highlights and shadows:

1. Click the plus in the Effects section and choose Texture from the dropdown menu.
2. Use the effect settings to configure the effect:
   • Size: 0.4
   • Radius: 4
   • Clip to shape: Enabled

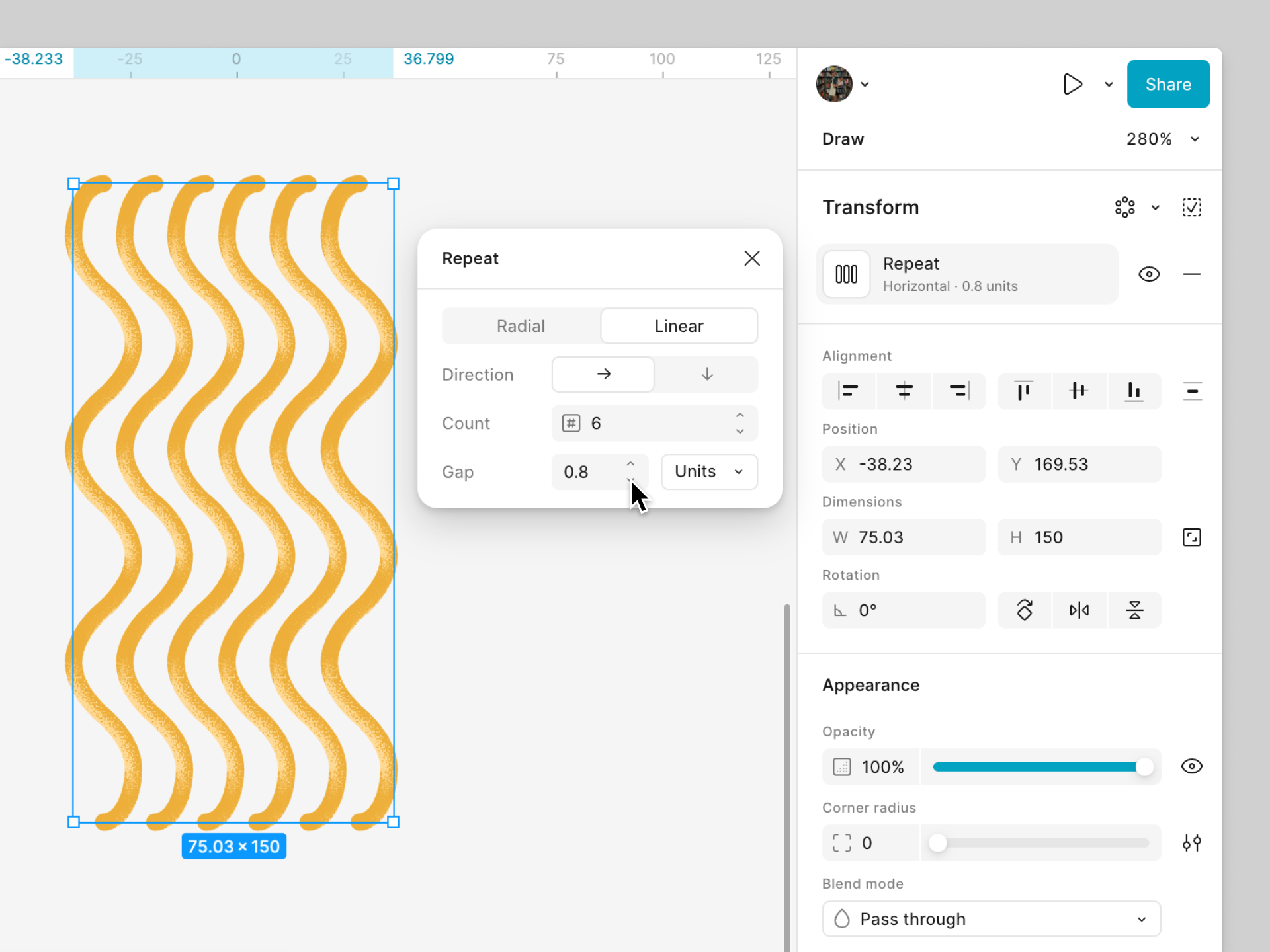

Add a linear repeat transform

Our noodles are almost done! To wrap things up, we’ll use the linear repeat transform to add the additional noodles:

1. Open the Additional transforms modifies menu in the right sidebar and select Linear repeat. This adds the noodles to a transform group.
2. Rename the transform group to Noodles.
3. Click on the transform in the right sidebar and configure the settings:
   • Direction: Horizontal
   • Count: 6
   • Gap: 0.8 Units

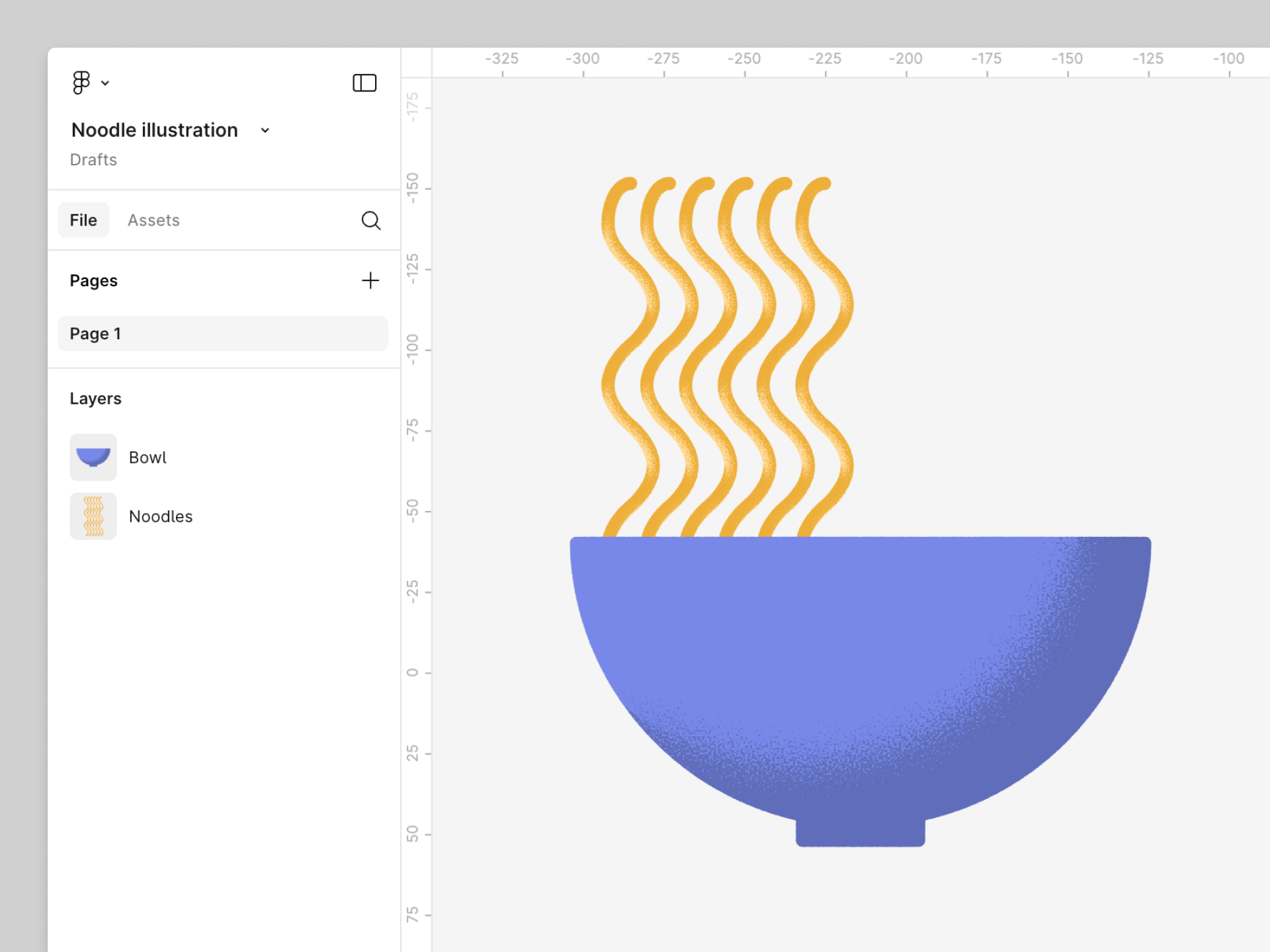

To wrap up our noodles, let’s position the layer near the left side of the bowl. Right-click on the Noodles layer and select Send to back or press [ on your keyboard so it looks like they are coming out of the bowl.

Create the chopsticks

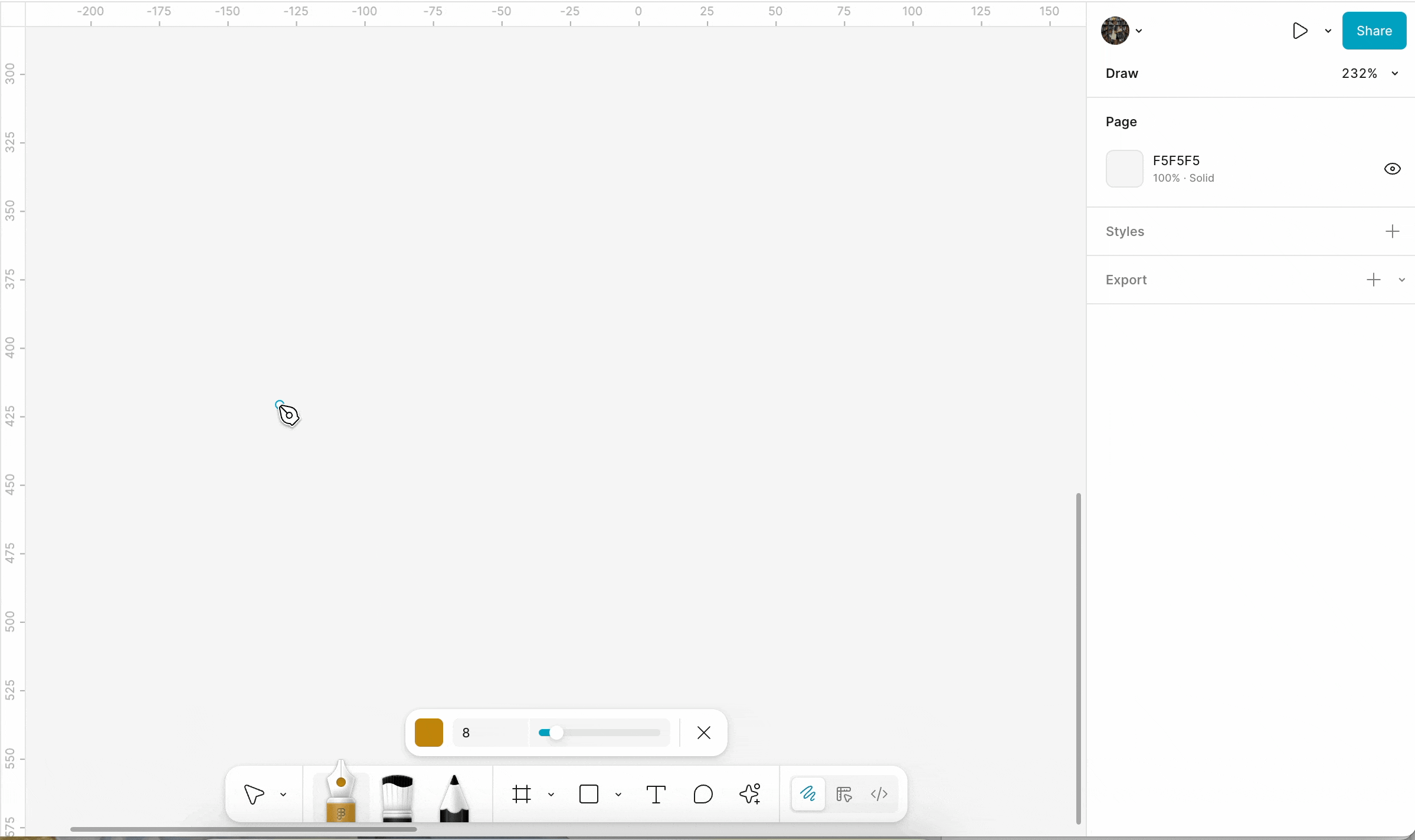

Awesome job so far! We’ll finish up our illustration by using the Pen tool to create a set of chopsticks.

1. Select the Pen tool from the toolbar.
2. Set the Weight to 8 and the fill to #C1850C.
3. Hold Shift and click to draw a straight line on the canvas.
4. Click Close in the secondary toolbar.
5. Use the Width field in the right sidebar to set the line’s width to 200.
6. Rename the layer to Chopstick.

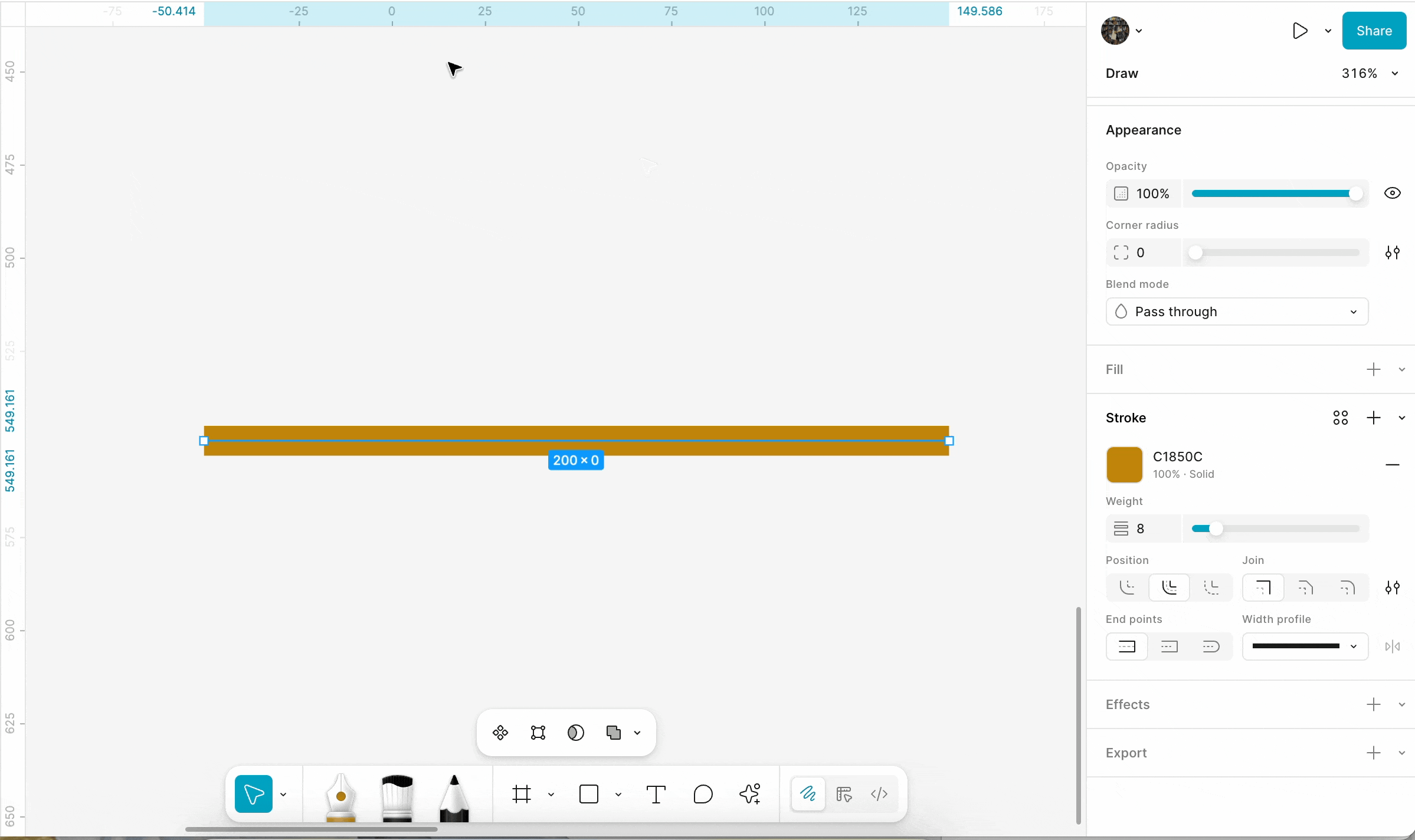

Next, we’ll use a width profile to achieve the chopstick’s tapered look. Width profiles are preset configurations that help you convert uniform strokes into lines with smoothly tapered ends and varying thicknesses.

1. In the Stroke section of the right sidebar, select End cap round from the End points options.
2. Open the Width profile dropdown and select the third option from the top.
3. Click Flip width points so that the tapered end is facing left.

Apply an inner shadow and texture effect

Similar to how we designed our bowl, we’re going apply an inner shadow and texture effect so the chopstick matches the rest of the illustration.

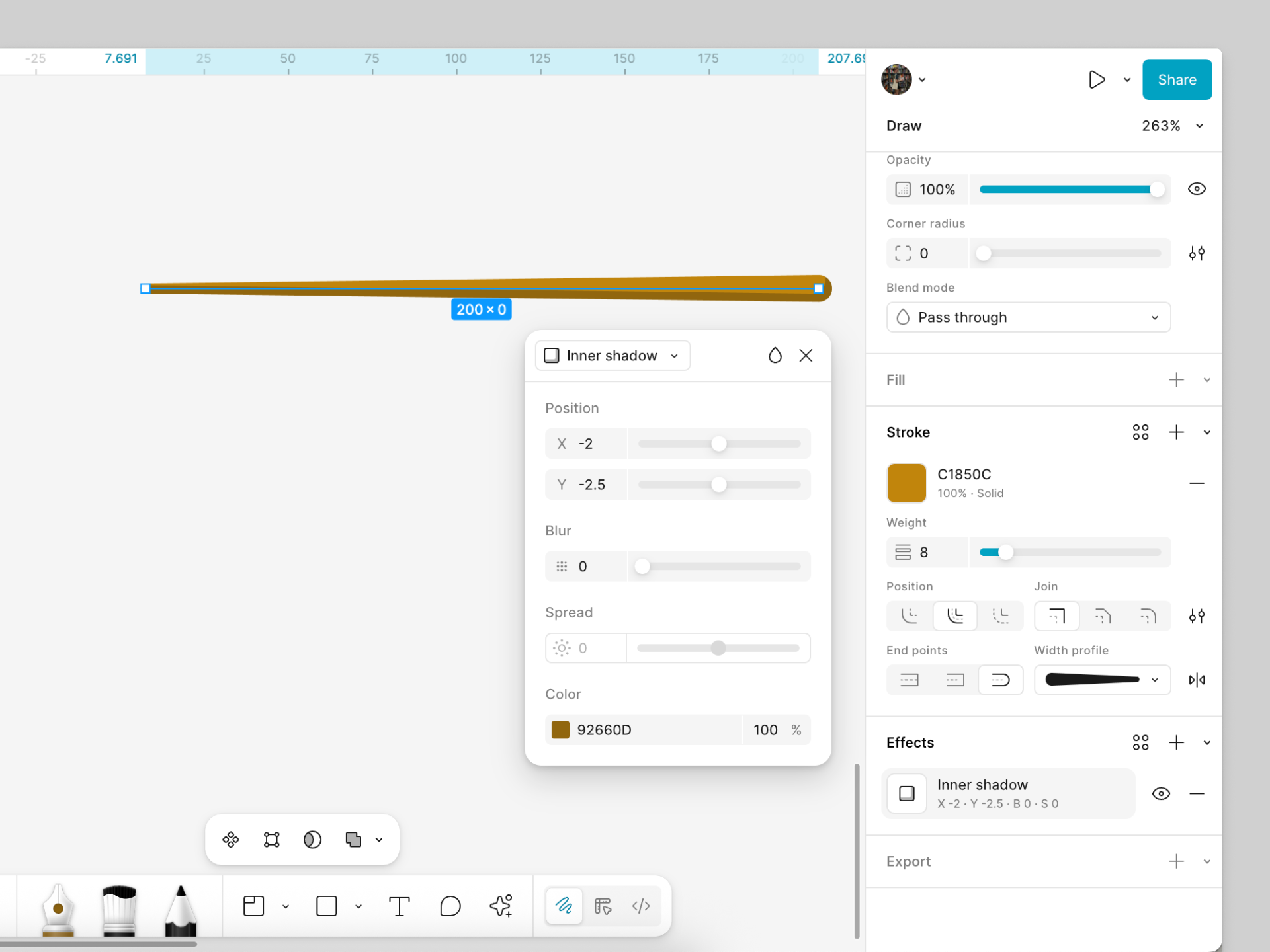

We’ll start by adding the inner shadow:

1. Select the Chopstick layer.
2. Click the plus in the Effects section and choose Inner shadow from the dropdown menu.
3. Use the effect settings to configure the inner shadow:
   • X position: -2
   • Y position: -2.5
   • Blur: 0
   • Spread: 0
   • Color: #92660D
   • Opacity: 100%

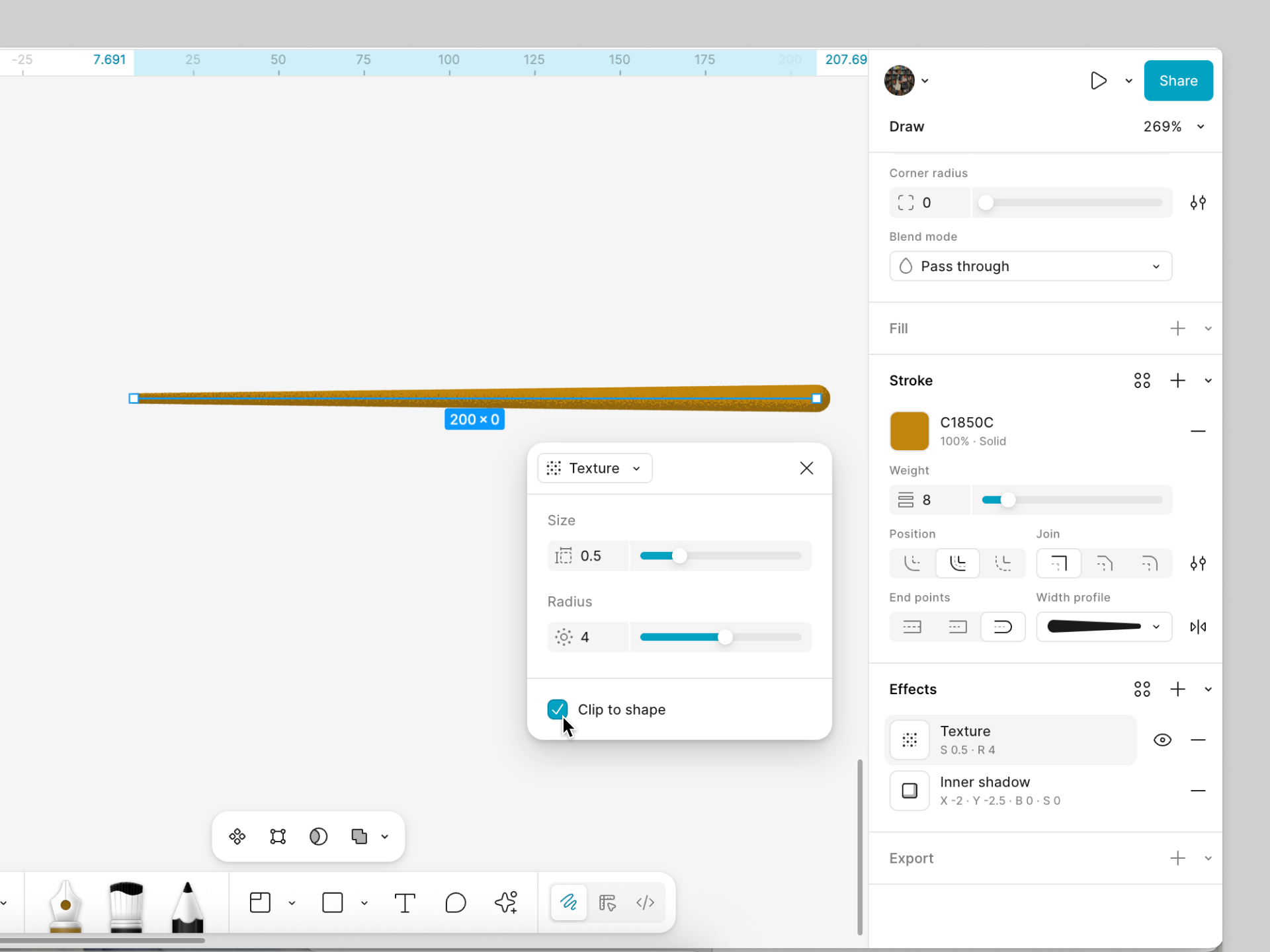

Now we’ll use a texture effect to soften the inner shadow’s effect:

1. Select the Chopstick layer.
2. Click the plus in the Effects section and choose Texture from the dropdown menu.
3. Use the effect settings to configure the effect:
   • Size: 0.5
   • Radius: 4
   • Clip to shape: Enabled

Position the chopsticks

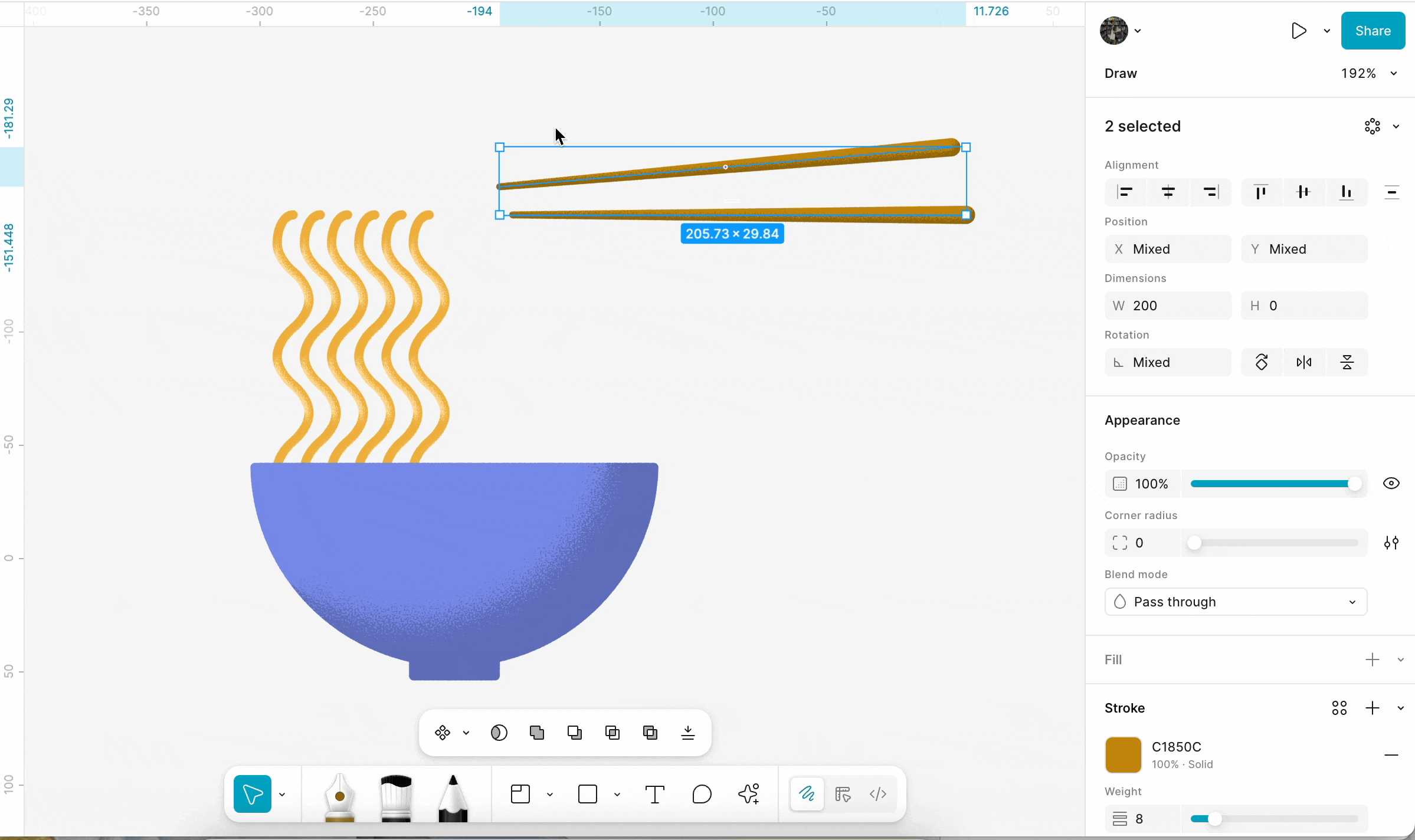

Let’s wrap up our illustration by duplicating the chopstick and placing them next to the other elements:

1. Select the Chopstick layer and duplicate it using the keyboard shortcut:
   • Mac: Command D
   • Windows: Control D
2. Select one chopstick and use the Rotation field to rotate it 5 degrees, then right-click on it and select Send to back or press [ on your keyboard.
3. Reposition your chopsticks until you’re happy with the placement.

What’s next?

Congratulations! You just created an illustration using the arc tool, transforms, stroke width profiles, and effects. Looking for more ideas to noodle on? Try:

• Creating the chopsticks using a mask instead of an inner shadow effect
• Using the Variable width tool to create a different pasta shape
• Creating additional food illustrations to build a collection

If you design something you're extra proud of, we'd love to see it! Mention us on X (formerly Twitter) @Figma or publish it to the Figma Community.
